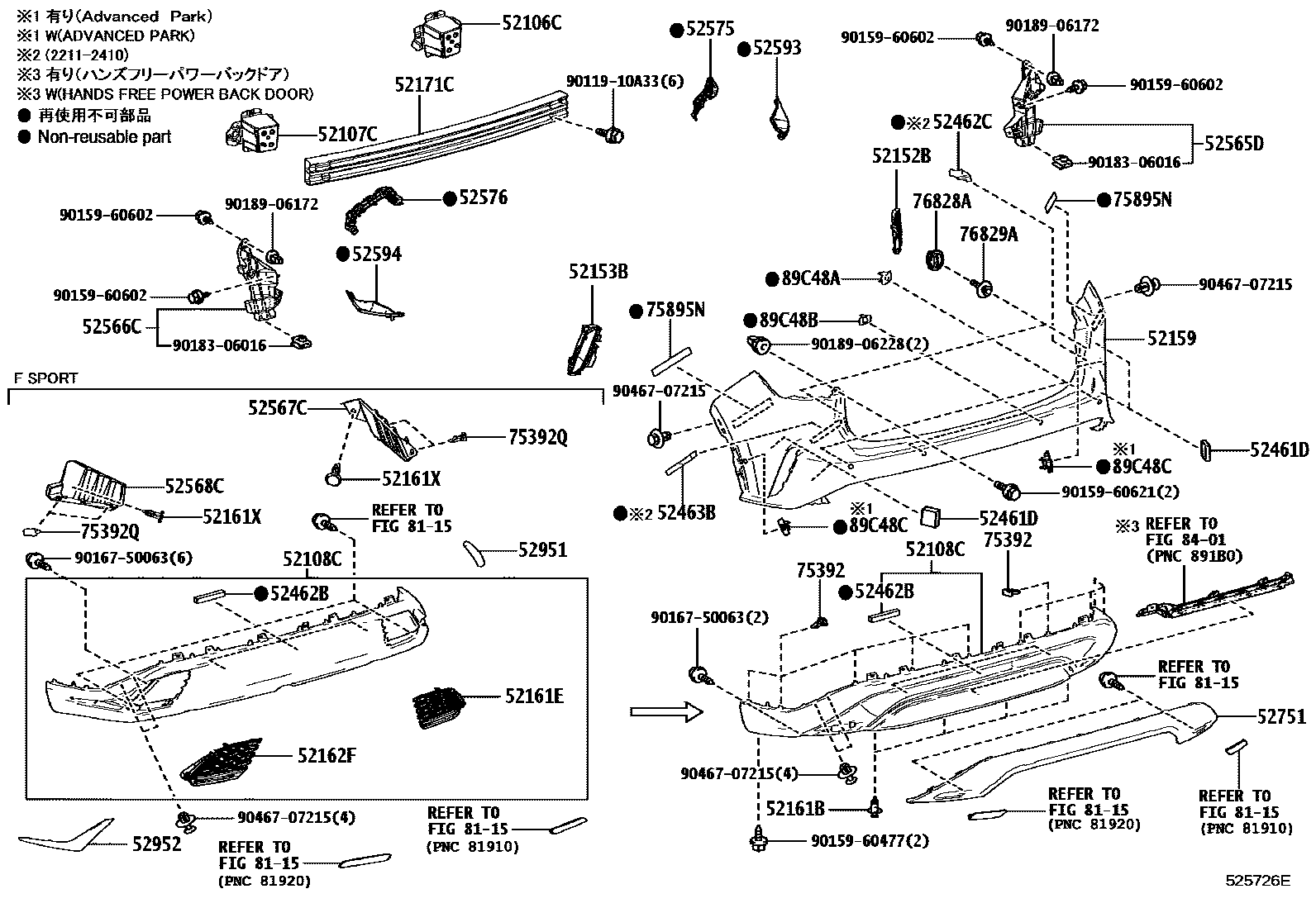

REAR BUMPER & BUMPER STAY
52106CEXTENSION SUB-ASSY, REAR BUMPER, RH
52107CEXTENSION SUB-ASSY, REAR BUMPER, LH
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
NO PAINT REQ.
PAINT REQ.
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52161EEXTENSION, REAR BUMPER SIDE, RH
52161XPIECE, REAR BUMPER
52162FEXTENSION, REAR BUMPER SIDE, LH
52461DCUSHION, REAR BUMPER
52462CPAD, REAR BUMPER, RH
52463BPAD, REAR BUMPER, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52593SILENCER, REAR BUMPER, RH
52594SILENCER, REAR BUMPER, LH
52751MOULDING, REAR BUMPER
NOT APPLICABLE
52951GUARD, SIDE BUMPER, RH
52952GUARD, SIDE BUMPER, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
75895NTAPE, MOULDING, NO.1
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8115REFLEX REFLECTOR
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
WHITE NOVA GF.,083,RH
SONIC QUARTZ,085,RH
SONIC TITANIUM,1J7,RH
SONIC CHROME,1L1,RH
SONIC IRIDIUM,1L2,RH
GRAPHITE BLACK GF.,223,RH
RED MC.CS.,3R1,RH
SONIC COPPER,4Y5,RH
TERRANE KHAKI M.M.,6X4,RH
HEAT BLUE CONTRAST LAYERI,8X1,RH
DEEP BLUE MC.,8X5,RH
WHITE NOVA GF.,083,LH
SONIC QUARTZ,085,LH
SONIC TITANIUM,1J7,LH
SONIC CHROME,1L1,LH
SONIC IRIDIUM,1L2,LH
GRAPHITE BLACK GF.,223,LH
RED MC.CS.,3R1,LH
SONIC COPPER,4Y5,LH
TERRANE KHAKI M.M.,6X4,LH
HEAT BLUE CONTRAST LAYERI,8X1,LH
DEEP BLUE MC.,8X5,LH
9011910A33
main90119-10A33
9015960477
main90159-60477
9015960602
main90159-60602
9015960621
main90159-60621
9016750063
main90167-50063
9018306016
main90183-06016
9018906172
main90189-06172
9018906228
main90189-06228
9046707215
main90467-07215
45 parts on this diagram · 2 diagrams in section
