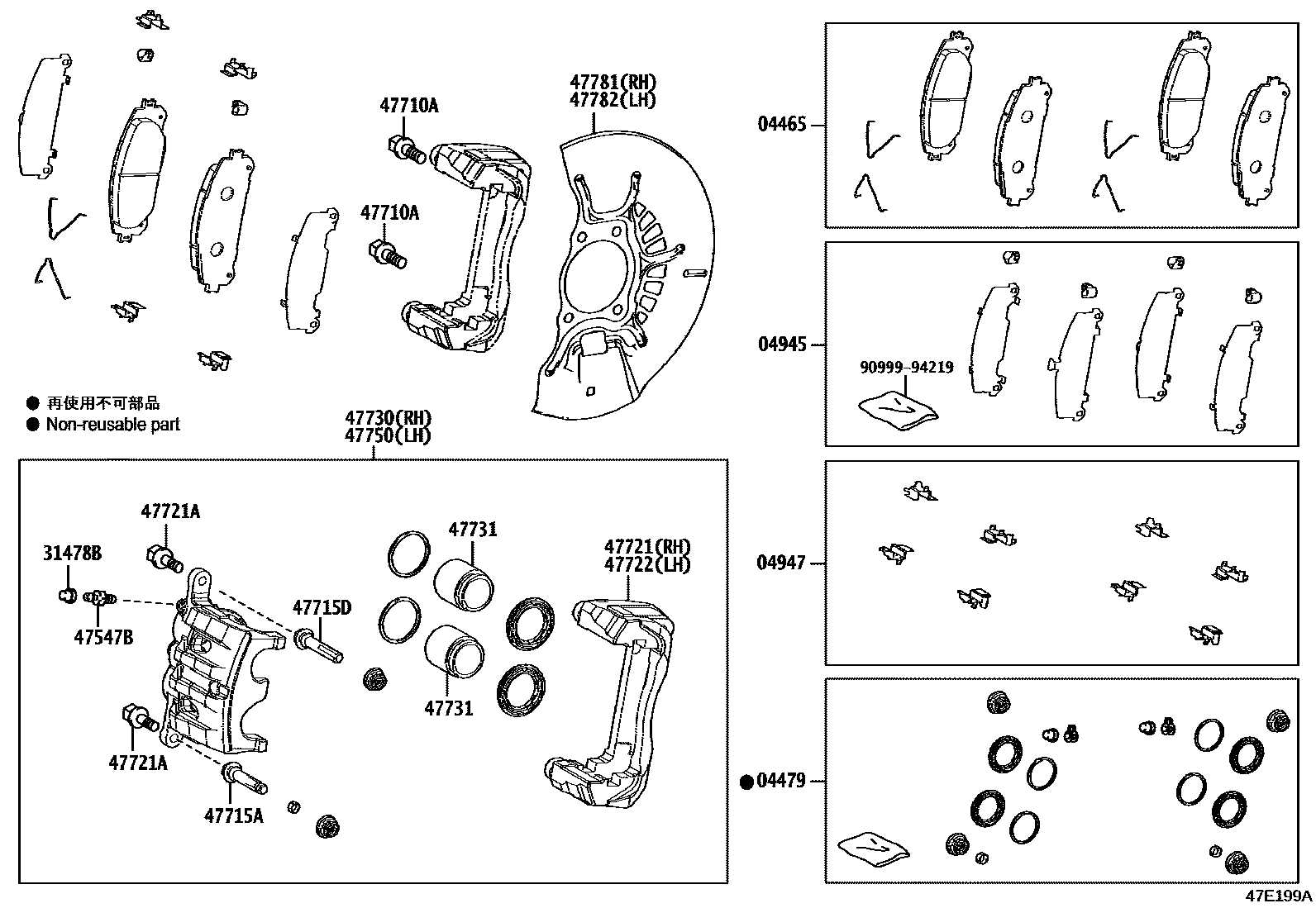

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-48250iAALH15,TALA10202211

MARK ADVICS VC084H

main04465-48260iAALH16202211

MARK ADVICS VC115

main04465-48270iTALH17202211

MARK ADVICS VC115-FG

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48220iAALH1#,TALA10202211

main04478-48240iTALH17202211

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48200iAALH16202211

main04945-48210iAALH15,TALA10202211

main04945-48220iTALH17202211

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48090iAALH1#,TALA10202211

main04947-48100iTALH17202211

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iTALH17202211

main31478-30010iAALH1#,TALA10202211

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAALH1#,TALA10202211

main47547-50010iTALH17202211

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iAALH1#,TALA10,TALH17202211

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-48200iAALH1#,TALA10202211

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48200iAALH1#,TALA10202211

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48220iAALH16202211

main47721-48240iAALH15,TALA10202211

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA605iAALH1#,TALA10202211-202306

main90015-AA608iAALH1#,TALA10202306

*10-1.00PX23-9.4

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48190iAALH16202211

main47722-48210iAALH15,TALA10202211

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48220iAALH16202211

main47730-48240iAALH15,TALA10202211

main47730-48270iTALH17202211

47731PISTON, FRONT DISC BRAKE

main47731-48200iAALH1#,TALA10202211

main47731-48260iTALH17202211

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48190iAALH16202211

main47750-48210iAALH15,TALA10202211

main47750-48240iTALH17202211

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAALH1#,TALA10202211

main47781-48060iTALH17202211

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAALH1#,TALA10202211

main47782-48060iTALH17202211

9099994219

main90999-94219

18 parts on this diagram · 3 diagrams in section
