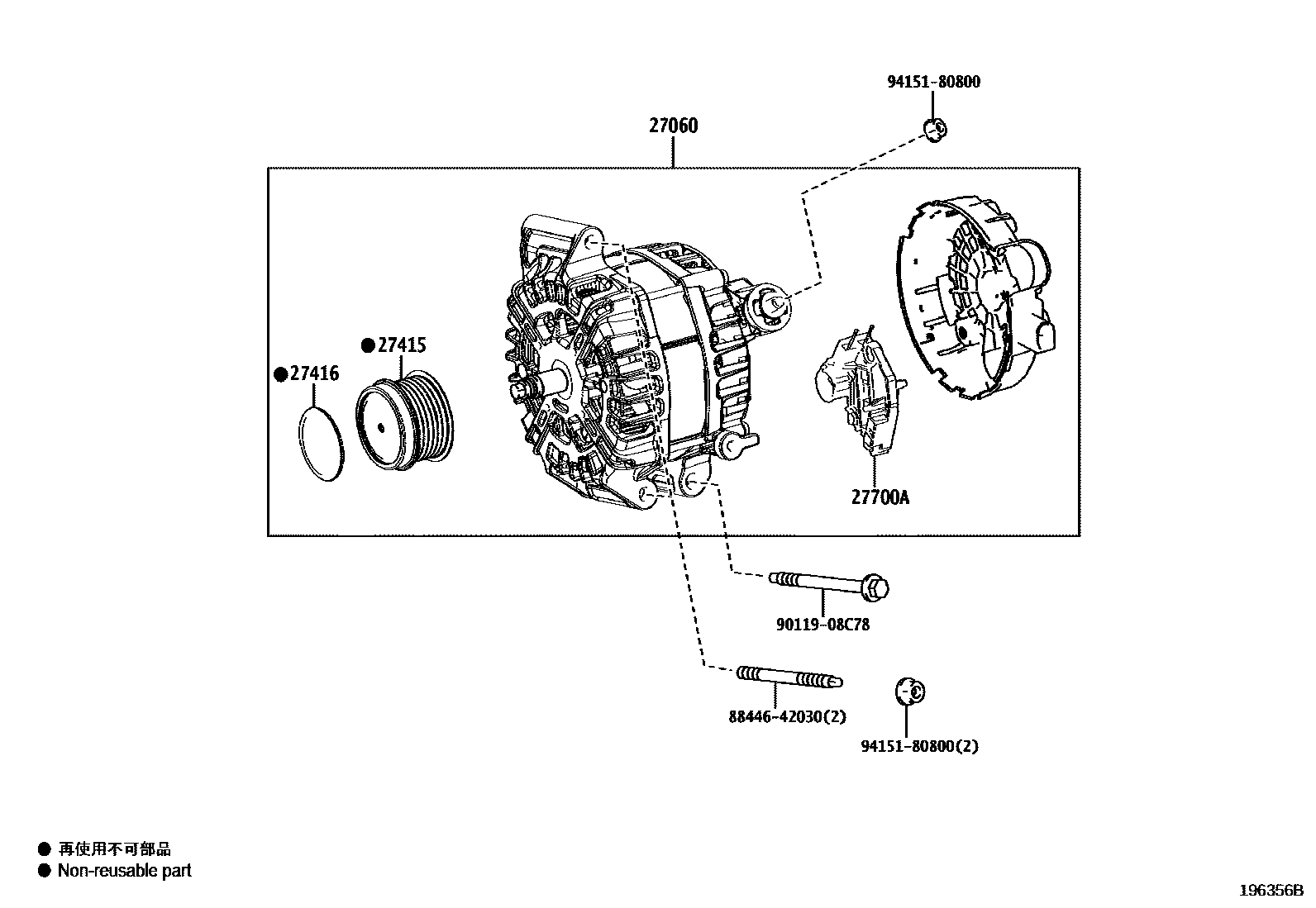

ALTERNATOR

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0W020iT24AFTS..TALA10202211-202410

12V 180A

main27060-F0180iT24AFTS..TALA10202410

12V 180A

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W320iT24AFTS..TALA10202211

27416CAP, ALTERNATOR PULLEY

main27416-0W050iT24AFTS..TALA10202211

27700AREGULATOR ASSY, GENERATOR

main27700-F0100iT24AFTS..TALA10202410

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
