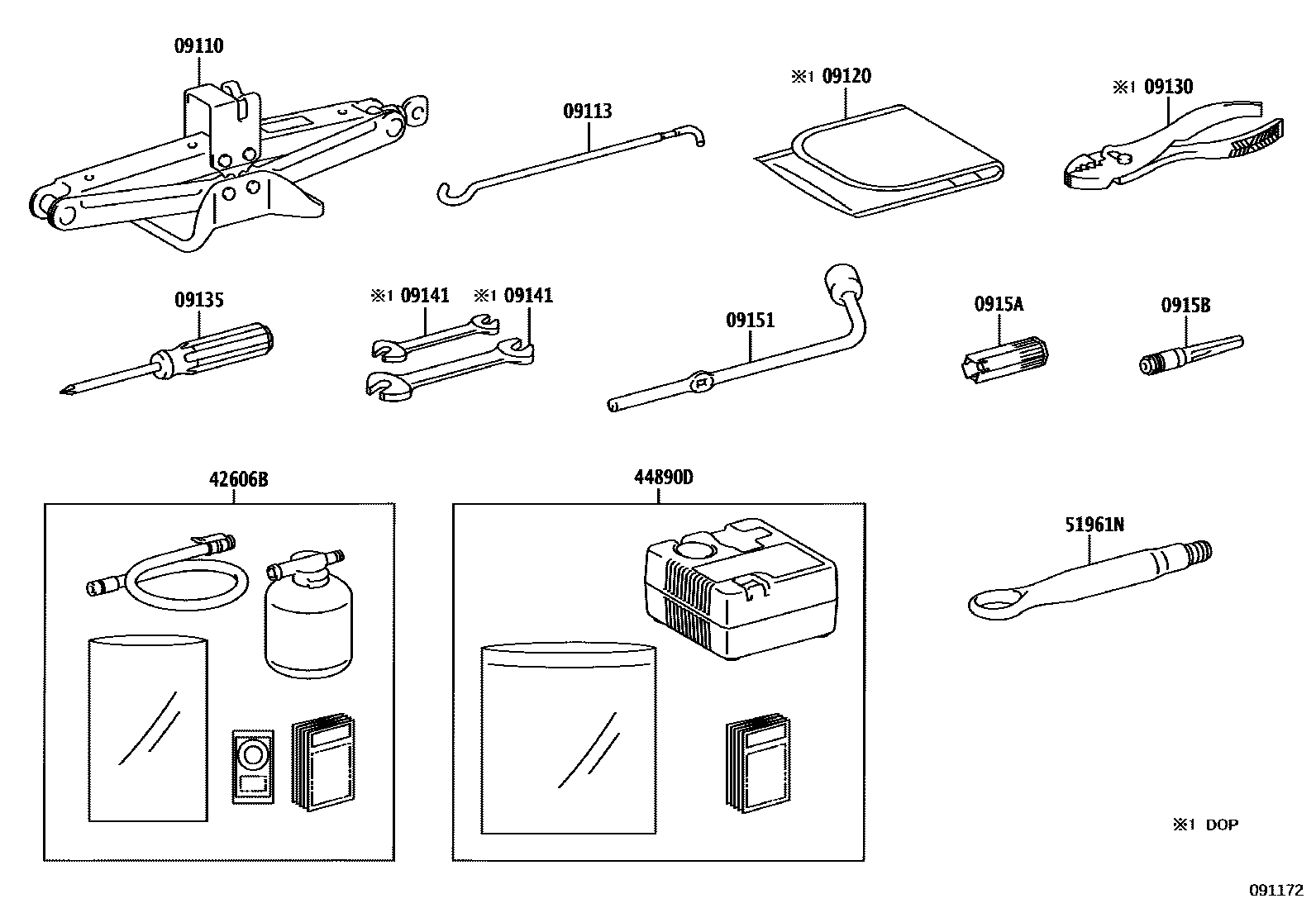

STANDARD TOOL
09110JACK ASSY
09113HANDLE, JACK
09120BAG, TOOL
TOOL(DEALERSHIP OPTION)-*SPWJHW
09130PLIERS
TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS & WHEEL LOCK KEY
09135DRIVER, SCREW
09141SPANNER
8 X 10,TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS & WHEEL LOCK KEY
12 X 14,TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS & WHEEL LOCK KEY
09151WRENCH, HUB BOLT BOX
0915ASOCKET, HUB BOLT TEMPORARY SETTING
0915BPIN, WHEEL GUIDE
42606BREPAIR KIT, TUBELESS TIRE
KOREA SPEC
44890DCOMPRESSOR ASSY, AIR
KOREA SPEC
51961NHOOK, TRANSPORT
12 parts on this diagram · 1 diagram in section
