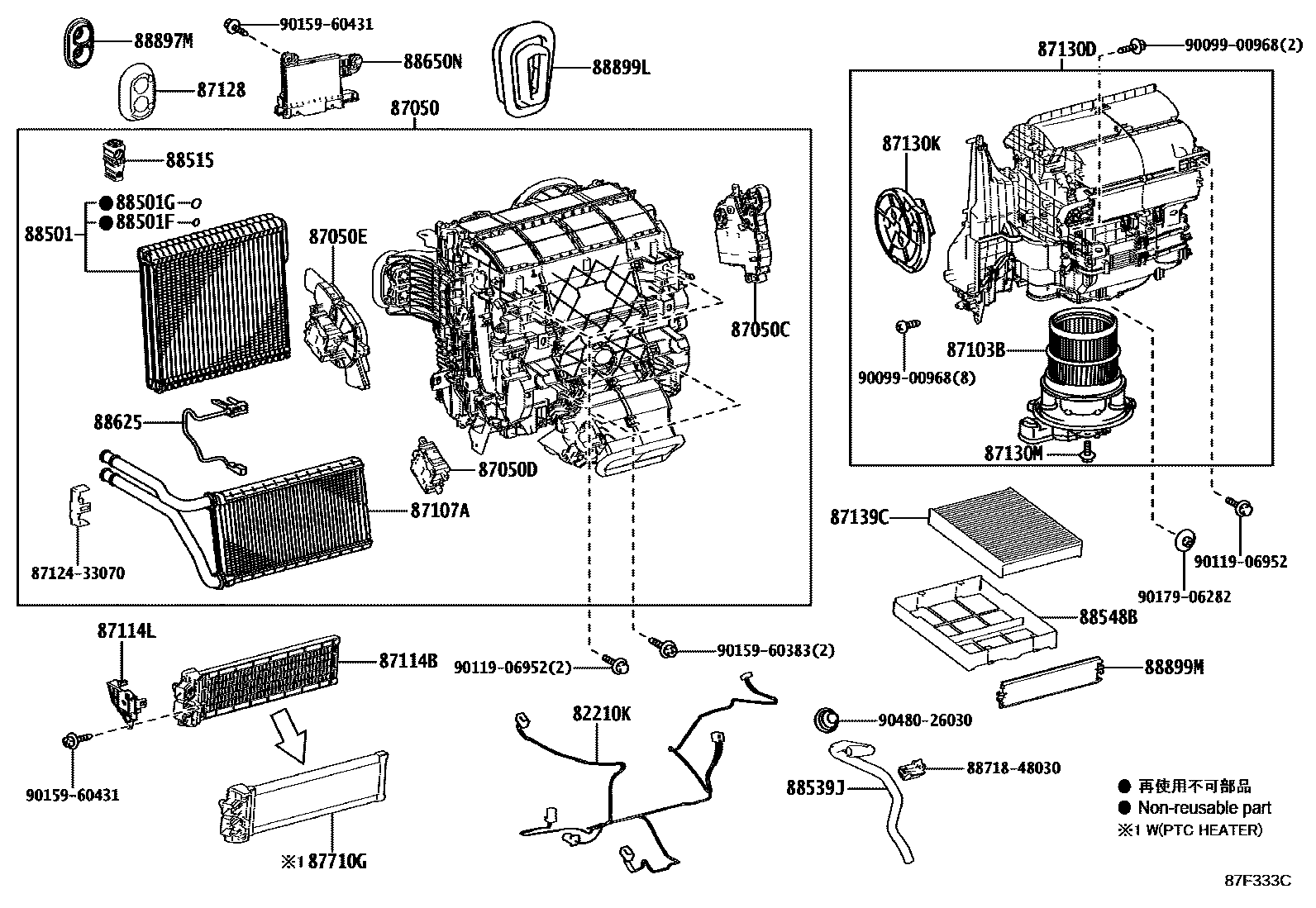

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48060iGGL25,GYL25201509-201908

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48580iGGL25201509-201611

main87050-48590iGYL25201908

main87050-48600iGGL25..A201908

main87050-48640iGGL25..B201908

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iGGL25,GYL25201509-201908

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48200iGGL25,GYL25201509-201908

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-48240iGGL25,GYL25201908

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42120iGGL25202107

main87103-58080iGGL25201908-202106

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48120iGGL25,GYL25201908

87114BCOVER, HEATER

main87114-58050iGGL25201509-201908

87114LCOVER, HEATER, NO.2

main87114-48140iGGL25,GYL25201509-201908

87128GROMMET, HEATER

main87128-58030iGGL25,GYL25201509-201908

87130DBLOWER ASSY

main87130-48340iGYL25201908-202108

main87130-48341iGYL25202109

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-58050iGGL25,GYL25201509-201908

87130MSCREW(FOR BLOWER)

main87193-87101×3iGGL25202107

87139CFILTER, CLEAN AIR

main87139-48050iGGL25,GYL25201509-201908

87710GQUICK HEATER ASSY

main87710-58010iGYL25201510-201908

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48430iGGL25201509-201908

main88501-48440iGYL25201908

main88501-48470iGGL25..B201908

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iGGL25,GYL25201509-201908

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iGGL25,GYL25201509-201908

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-48110iGYL25201509-201908

main88515-48130iGGL25..A201908

main88515-48140iGGL25..B201908

88539JHOSE, DRAIN COOLER

main88539-48090iGGL25,GYL25201908

88548BCASE, AIR FILTER

main88899-48050iGGL25,GYL25201806-201908

main88899-48070iGGL25,GYL25201509-201805

88625THERMISTOR, COOLER, NO.1

main88620-28050iGGL25,GYL25201509-201908

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-48A20iGGL25..A201509-201610

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48A21iGGL25..A201611-201712

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48A30supersedes 88650-48D81iGGL25201509-201610

COLD AREA SPEC

main88650-48A31supersedes 88650-48A51iGGL25201611-201712

COLD AREA SPEC

main88650-48A40iGGL25..A201509-201610

MINUS ION GENERATOR-WITH

main88650-48A41iGGL25..A201611-201712

MINUS ION GENERATOR-WITH

main88650-48B00supersedes 88650-48E61iGYL25201510-201610

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48B01supersedes 88650-48B31iGYL25201611-201712

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48B10supersedes 88650-48E61iGYL25201510-201610

COLD AREA SPEC

main88650-48B11supersedes 88650-48B31iGYL25201611-201712

COLD AREA SPEC

main88650-48B20supersedes 88650-48E61iGYL25201510-201610

MINUS ION GENERATOR-WITH

main88650-48B21supersedes 88650-48B31iGYL25201611-201712

MINUS ION GENERATOR-WITH

main88650-48D50iGGL25..A201712-201806

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48D51iGGL25..A201807-201908

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48D60supersedes 88650-48D80iGGL25201712-201806

COLD AREA SPEC

main88650-48D61supersedes 88650-48D81iGGL25201807-201908

COLD AREA SPEC

main88650-48D70iGGL25..A201712-201806

MINUS ION GENERATOR-WITH

main88650-48D71iGGL25..A201807-201908

MINUS ION GENERATOR-WITH

main88650-48E30supersedes 88650-48E60iGYL25201712-201806

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48E31supersedes 88650-48E61iGYL25201807-201908

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48E40supersedes 88650-48E60iGYL25201712-201806

COLD AREA SPEC

main88650-48E41supersedes 88650-48E61iGYL25201807-201908

COLD AREA SPEC

main88650-48E50supersedes 88650-48E60iGYL25201712-201806

MINUS ION GENERATOR-WITH

main88650-48E51supersedes 88650-48E61iGYL25201807-201908

MINUS ION GENERATOR-WITH

main88650-48G90iGGL25..A201908-202107

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48J00supersedes 88650-48J20iGGL25201908-202107

COLD AREA SPEC

main88650-48J10iGGL25..A201908-202107

MINUS ION GENERATOR-WITH

main88650-48J70supersedes 88650-48K00iGYL25201908-202107

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48J80supersedes 88650-48K00iGYL25201908-202107

COLD AREA SPEC

main88650-48J90supersedes 88650-48K00iGYL25201908-202107

MINUS ION GENERATOR-WITH

main88650-48M20iGGL25..A202107

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48M30supersedes 88650-48M50iGGL25202107

COLD AREA SPEC

main88650-48M40iGGL25..A202107

MINUS ION GENERATOR-WITH

main88650-48N00supersedes 88650-48N30iGYL25202107

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48N10supersedes 88650-48N30iGYL25202107

COLD AREA SPEC

main88650-48N20supersedes 88650-48N30iGYL25202107

MINUS ION GENERATOR-WITH

88897MGROMMET (FOR HEATER PIPE)

main90480-01696iGGL25,GYL25201509-201908

88899LPARTS, COOLING UNIT

main88899-48030iGGL25,GYL25201509-201908

88899MPLATE, COVER(FOR AIR FILTER)

main88899-28620iGGL25,GYL25201509-201707

main88899-47120iGGL25,GYL25201708-201908

8712433070CLAMP, HEATER

main87124-33070

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

9009900968

main90099-00968

9011906952

main90119-06952

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

9048026030

main90480-26030

34 parts on this diagram · 3 diagrams in section
