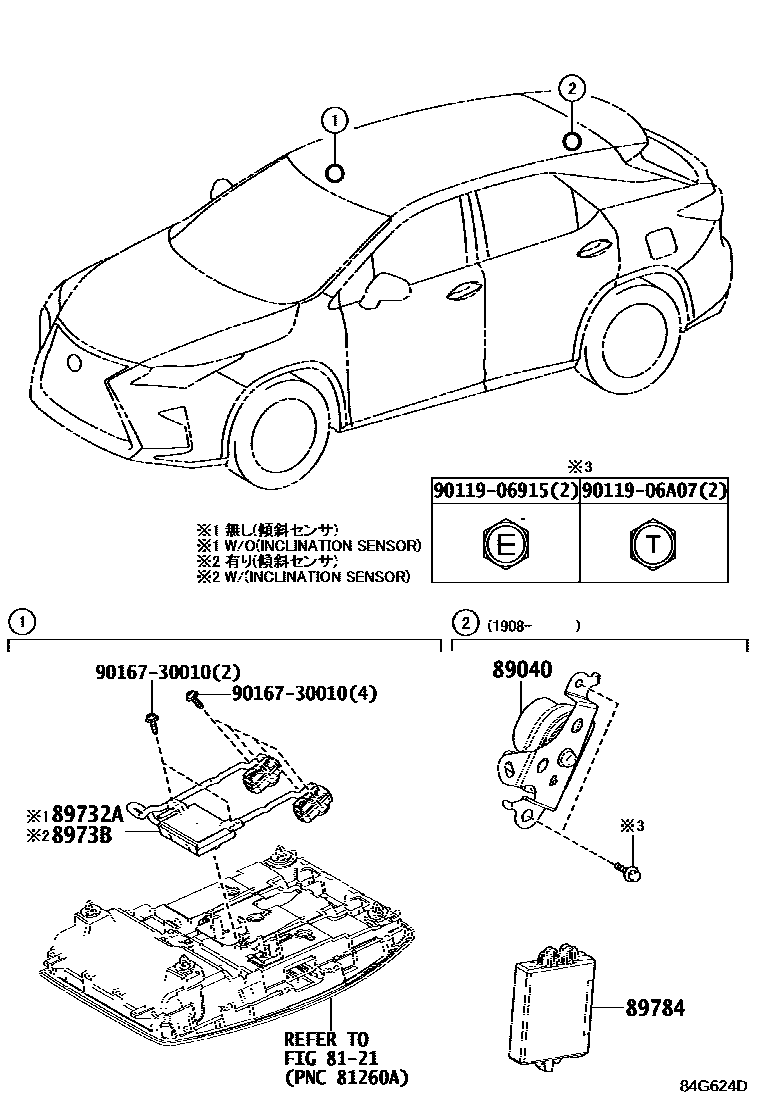

ANTI-THEFT DEVICE

8121INTERIOR LAMP

→ Go to FIG 81-21

89040SIREN ASSY, THEFT WARNING

main89040-48070iGGL25,GYL25..A201908

89732ASENSOR, THEFT WARNING ULTRASONIC

main89732-78010iGGL25,GYL25..A201509-201712

main89732-78020iGGL25,GYL25..A201712-201908

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-78020iGGL25,GYL25..A201908

89784COMPUTER, IMMOBILIZER CODE

main89784-12040iGGL25..B202107

main89784-33020iGGL25..B201908-202107

main89784-47030iGGL25,GYL25201509-201908

9011906915

main90119-06915

9011906A07

main90119-06A07

9016730010

main90167-30010

8 parts on this diagram · 1 diagram in section
