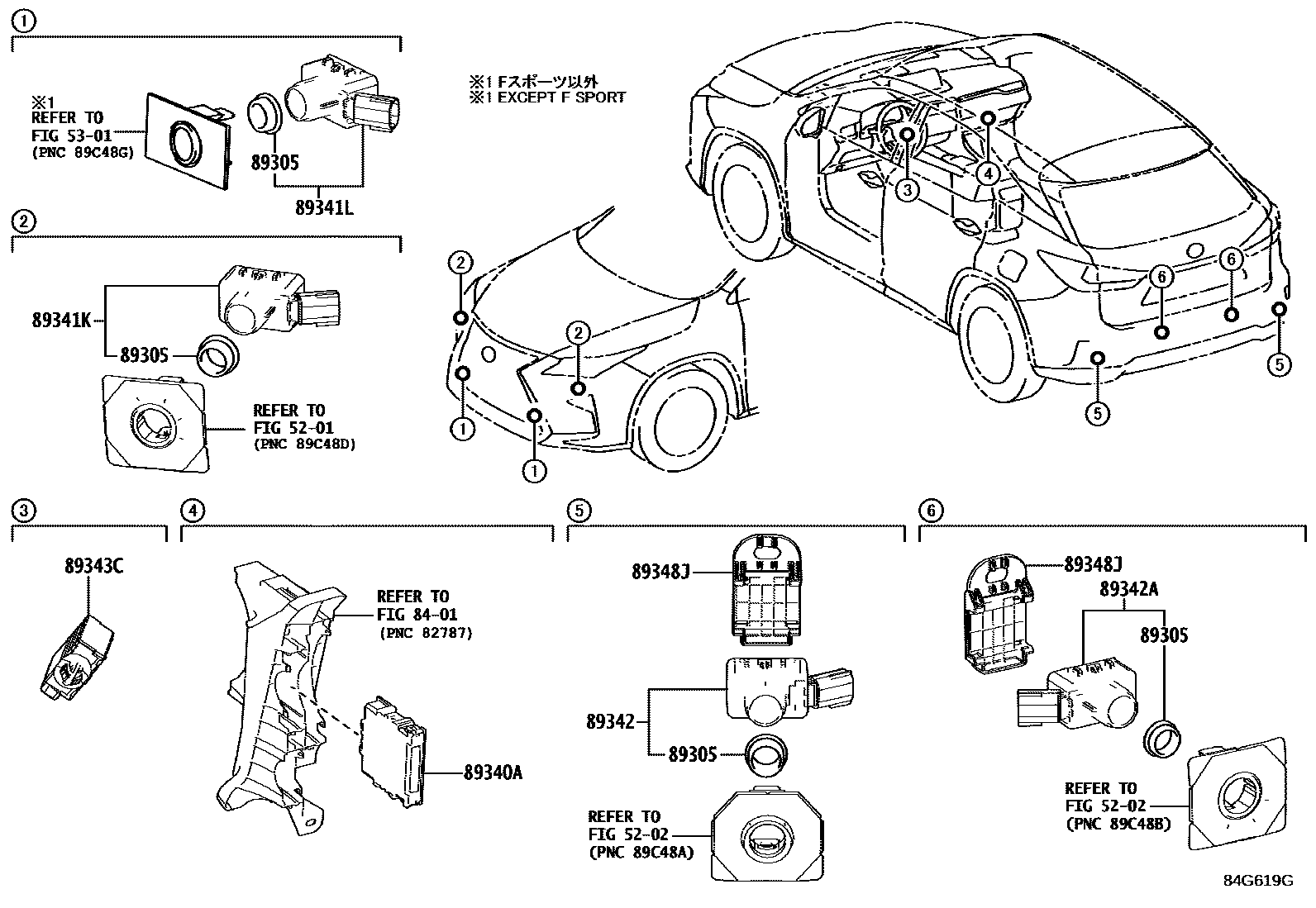

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
5301RADIATOR GRILLE
8401SWITCH & RELAY & COMPUTER
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
89340ACOMPUTER ASSY, CLEARANCE WARNING
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
89341KSENSOR, ULTRASONIC, FRONT CORNER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
AMBER CS.,4X2
ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085; SONIC QUARTZ,085
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212; BLACK,212; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7; SLEEK ECRU ME.,4U7
AMBER CS.,4X2
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5
"F-SPORT"*(F),WHITE NOVA GF.,083
"F-SPORT"*(F),HEAT BLUE CONTRAST LAYERI,8X1
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1
89341LSENSOR, ULTRASONIC, FRONT CENTER
MAT BLACK
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DUMMY-MAT BLACK; DUMMY-MAT BLACK
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),METALLIC BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
AMBER CS.,4X2
ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085; SONIC QUARTZ,085
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212; BLACK,212; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7; SLEEK ECRU ME.,4U7
AMBER CS.,4X2
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5
"F-SPORT"*(F),WHITE NOVA GF.,083
"F-SPORT"*(F),HEAT BLUE CONTRAST LAYERI,8X1
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1
89342ASENSOR, ULTRASONIC, REAR CENTER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
AMBER CS.,4X2
ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC QUARTZ,085; SONIC QUARTZ,085
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SONIC TITANIUM,1J7; SONIC TITANIUM,1J7
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVERME.,1J4; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),PLATINUM SILVER ME.,1J4; PLATINUM SILVER ME.,1J4
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212; BLACK,212; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),BLACK,212
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),GRAPHITE BLACK GF.,223; GRAPHITE BLACK GF.,223
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),RED MC.CS.,3R1; RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),SLEEK ECRU ME.,4U7; SLEEK ECRU ME.,4U7
AMBER CS.,4X2
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),DEEP BLUE MC.,8X5; DEEP BLUE MC.,8X5
"F-SPORT"*(F),WHITE NOVA GF.,083
"F-SPORT"*(F),HEAT BLUE CONTRAST LAYERI,8X1
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),WHITE NOVA GF.,083
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),MERCURY GRAY MC.,1H9
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR),HEAT BLUE CONTRAST LAYERI,8X1
89343CBUZZER, CLEARANCE WARNING, NO.1
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
89348JCLIP, ULTRASONIC SENSOR
"F-SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR); CLEARANCE & BACK SONAR-WITH(CLEARANCE & BACK SONAR)
12 parts on this diagram · 2 diagrams in section
