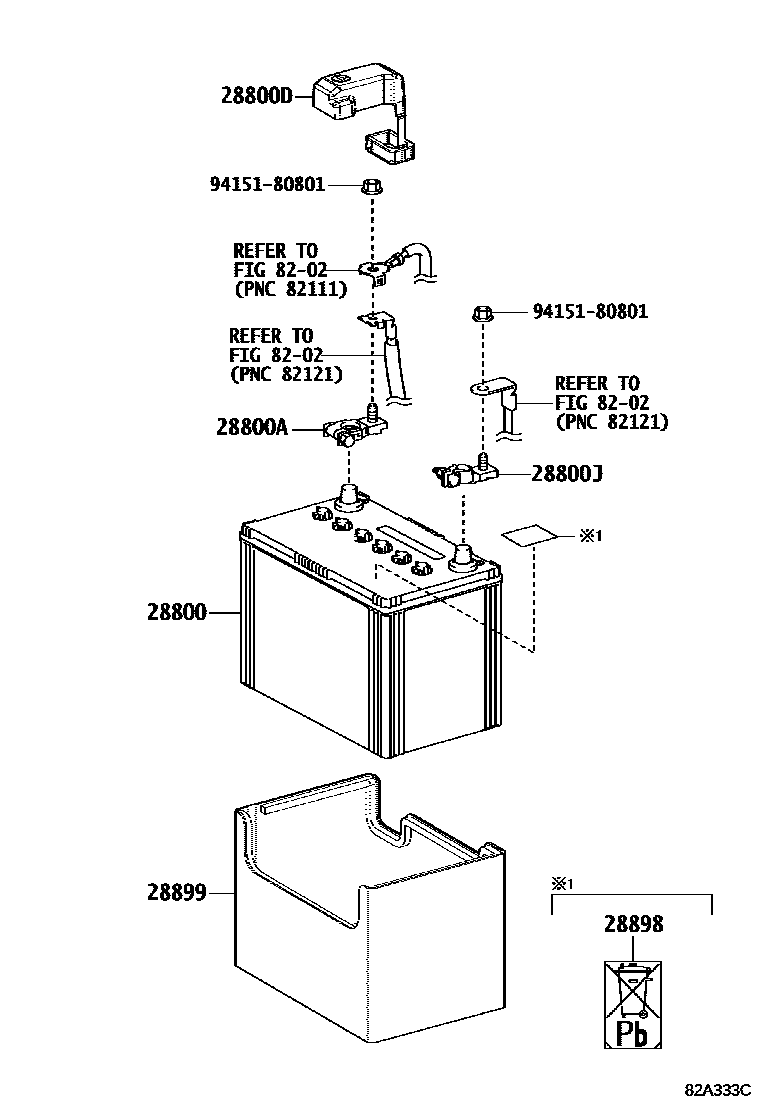

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-36131i2GRFXS..GYL25201510-201908

LN2

main28800-38080i2GRFKS..GGL25201509-201908

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFXS..GYL25201908

main90982-05056i2GRFKS..GGL25201509-201908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i2GRFKS..GGL25201509-201712

main82821-48250i2GRFKS..GGL25201712-201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2GRFKS..GGL25201509-201908

28898PLATE, BATTERY

main28898-46020i2GRFKS..GGL25..A201509-201908

28899INSULATOR, BATTERY

main28899-31220i2GRFKS..GGL25201908

main28899-36050i2GRFXS..GYL25201908-202109

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
