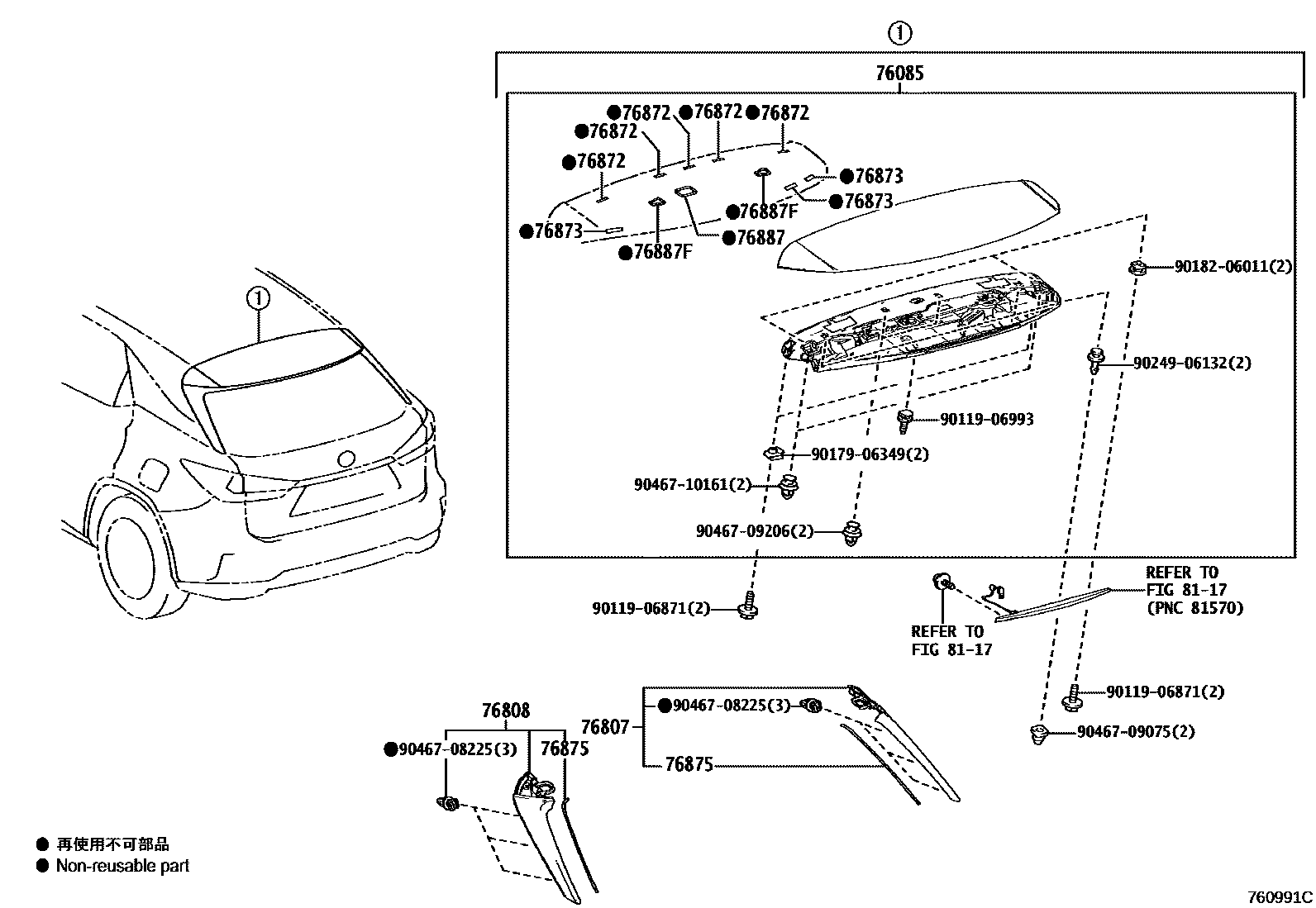

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
MERCURY GRAY MC.,1H9
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,8X1
SONIC QUARTZ,085
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
MERCURY GRAY MC.,1H9
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH
76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76875PROTECTOR, REAR SPOILER, NO.4
76887SEAL, REAR SPOILER
76887FSEAL, REAR SPOILER, NO.2
8117CENTER STOP LAMP
9011906871
main90119-06871
9011906993
main90119-06993
9017906349
main90179-06349
9018206011
main90182-06011
9024906132
main90249-06132
9046708225
main90467-08225
9046709075
main90467-09075
9046709206
main90467-09206
9046710161
main90467-10161
18 parts on this diagram · 1 diagram in section
