REAR SEAT & SEAT TRACK

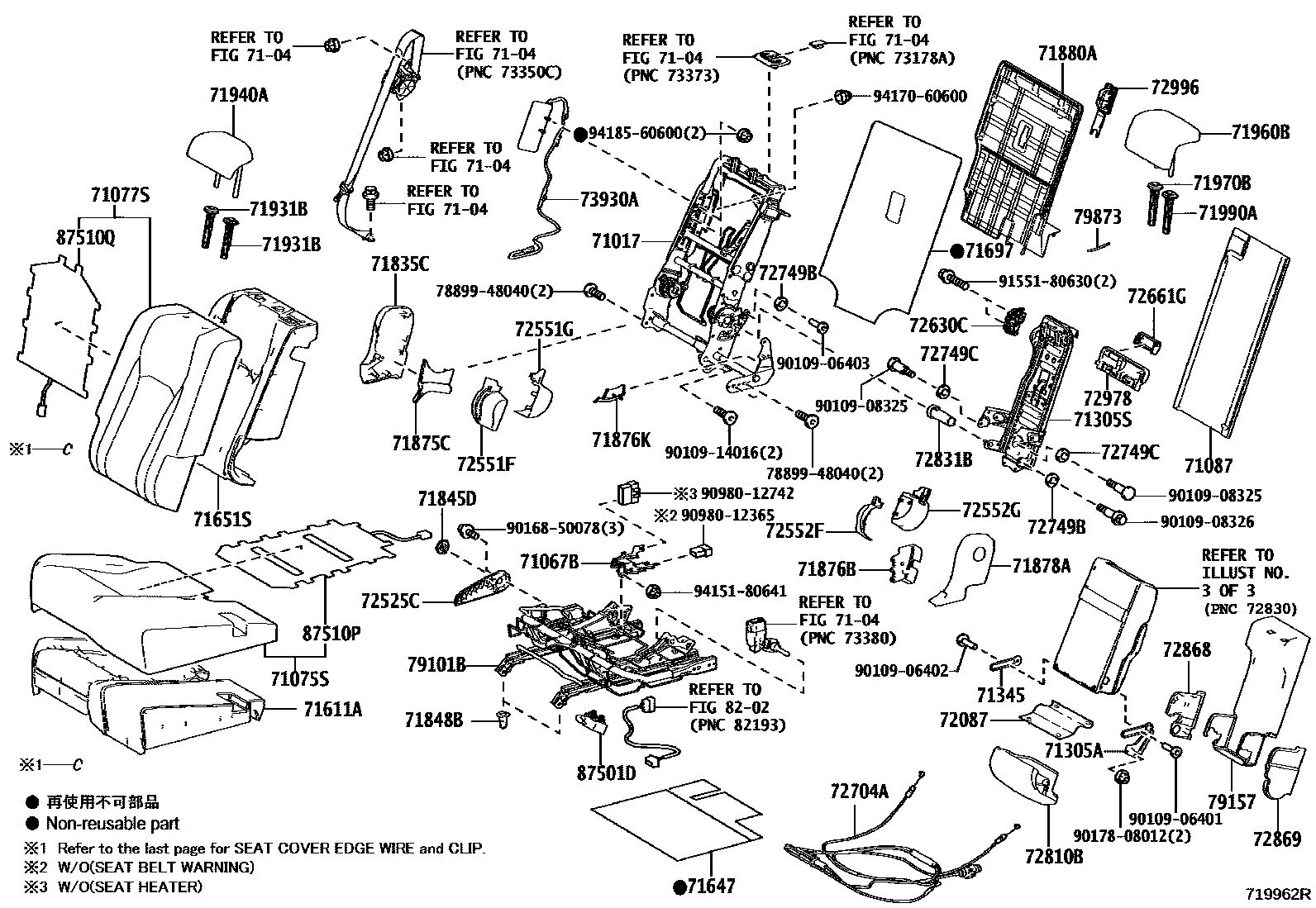

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-48230i201509-201908
main71017-48240i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71067BPLATE SUB-ASSY, REAR SEAT LEG, RH
main71067-48010i201509-201908
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-48630-A5i201509-201908
IVORY,TRIM0#
main71075-48630-C4i201509-201908
BLACK,TRIM2#
main71075-48630-E4i201509-201908
NOBLE BROWN,TRIM4#
main71075-48630-F4i201509-201908
TOPAZ BROWN,TRIM5#
main71075-48A40-A4i202007
IVORY,TRIM0#
main71075-48A40-C5i202010-202107
BLACK,TRIM2#
main71075-48A50-A5i201908-202007
IVORY,TRIM0#
main71075-48A50-A7i201908
RICH CREAM,TRIM6#
main71075-48A50-E7i201908-202007
NOBLE BROWN,TRIM4#
main71075-48670-A8supersedes 71075-48A50-A5i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71075-48670-C4supersedes 71075-48A50-C4i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71075-48670-E4supersedes 71075-48A50-E7i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71075-48670-F4supersedes 71075-48A50-E8i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),TOPAZ BROWN,TRIM5#
main71075-48680-C4supersedes 71075-48A50-C4i201509-201908
"F-SPORT"*(F),BLACK/WHITE,TRIM2#
main71075-48680-D3i201509-201908
"F-SPORT"*(F),DK.ROSE,TRIM3#
main71075-48B00-A7supersedes 71075-48A50-A5i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71075-48B00-C4supersedes 71075-48A50-C4i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71075-48B00-E6supersedes 71075-48A50-E7i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71075-48B00-E7supersedes 71075-48A50-E8i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
main71075-48B10-C7i201908-202107
"F-SPORT"*(F),BLACK/LT.GRAY,TRIM25,26,98
main71075-48B10-C8i201908
"F-SPORT"*(F),BLACK/MELLOW WHITE,TRIM27,28,97
main71075-48B10-D3i201908-202107
"F-SPORT"*(F),RED,TRIM3#,99
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-48B30-A4i201509-201908
IVORY,TRIM0#
main71077-48B30-C4i201509-201908
BLACK,TRIM2#
main71077-48B30-E4i201509-201908
NOBLE BROWN,TRIM4#
main71077-48B30-F4i201509-201908
TOPAZ BROWN,TRIM5#
main71077-48E40-A3i202007
IVORY,TRIM0#
main71077-48E40-C3i202010-202107
BLACK,TRIM2#
main71077-48E70-A5i201908-202007
IVORY,TRIM0#
main71077-48E70-A7i201908-202007
RICH CREAM,TRIM6#
main71077-48E70-E7i201908-202007
NOBLE BROWN,TRIM4#
main71077-48R40-A1i202007
RICH CREAM,TRIM6#
main71077-48B40-A9i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71077-48B40-C4i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71077-48B40-E4i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71077-48B40-F4i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),TOPAZ BROWN,TRIM5#
main71077-48B50-C4i201509-201908
"F-SPORT"*(F),BLACK/WHITE,TRIM2#
main71077-48B50-D4i201509-201908
"F-SPORT"*(F),DK.ROSE,TRIM3#
main71077-48F30-A7i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71077-48F30-C4supersedes 71077-48E70-C4i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71077-48F30-E6i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71077-48F30-E7supersedes 71077-48E70-E8i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
main71077-48G00-20i201908-202007
"F-SPORT"*(F),BLACK/MELLOW WHITE,TRIM27,28,97
main71077-48G00-C9i201908-202007
"F-SPORT"*(F),BLACK/LT.GRAY,TRIM25,26,98
main71077-48G00-D4i201908-202007
"F-SPORT"*(F),RED,TRIM3#,99
main71077-48R50-A0supersedes 71077-48R40-A0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71077-48R50-C0supersedes 71077-48R40-C0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71077-48R50-E0supersedes 71077-48R40-E0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71077-48R50-E1supersedes 71077-48R40-E1i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
main71077-48R60-C0i202007-202107
"F-SPORT"*(F),BLACK,TRIM27,28,97
main71077-48R60-C1i202007
"F-SPORT"*(F),BLACK/WHITE,TRIM25,26,98
main71077-48R60-D0i202007
"F-SPORT"*(F),RED,TRIM3#,99
71087BOARD SUB-ASSY, REAR SEATBACK
main71087-48080-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
main71087-48080-E0i201908-202007
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-48080i201509-201608
main71305-48130i201608-201908
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-48080i201908
71345HINGE, REAR SEATBACK
main71345-48010i201608-201908
71611APAD, REAR SEAT CUSHION, RH
main71611-48310i201908
main71611-48330i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
71647PROTECTOR, REAR SEAT CUSHION EDGE
main71647-48020i201908
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-48240i201908
main71651-48260i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
71697PROTECTOR, REAR SEATBACK EDGE
main71697-48010i201908
71835CMOULDING, REAR SEATBACK, RH
main71835-48030-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main71835-48030-C0i201509-201908
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#
main71835-48030-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#; NOBLE BROWN,TRIM0#,5#
71845DCAP, REAR SEAT COVER, RH
main71845-48040-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main71845-48040-C0i201509-201908
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#
main71845-48040-E1i201509-201908
NOBLE BROWN,TRIM0#,5#
71848BCAP, SEAT ADJUSTER COVER, RH
main71848-76010×2i201908
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-48110-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main71875-48110-C0i202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM0#,2#,4#,5#; BLACK,TRIM0#,1#,2#,4#,5#; BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
main71875-48110-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#; NOBLE BROWN,TRIM0#,5#
71876BCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-48100-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main71876-48100-C0i201908-202007
BLACK,TRIM02,1#,2#,4#,5#; BLACK,TRIM04,2#,3#,4#,5#,6#,9#
main71876-48100-E0i201509-201908
NOBLE BROWN,TRIM5#
main71876-48110-A0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM00,01,02,03
main71876-48110-C0i201908-202007
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM00,2#,4#,5#
main71876-48110-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#
71876KCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-48150-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main71876-48150-C0i201908-202007
BLACK,TRIM02,1#,2#,4#,5#; BLACK,TRIM04,2#,3#,4#,5#,6#,9#
main71876-48150-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#; NOBLE BROWN,TRIM5#
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-48110-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main71878-48110-C0i201509-201908
BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
main71878-48110-E0i201509-201908
NOBLE BROWN,TRIM5#
main71878-48120-A0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71878-48120-C0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#,4#
main71878-48120-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-48290-C0i201908-202007
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
main71880-48290-E0i201908-202007
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
main71930-47020-A4×2i201509-201908
W(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#; W(LOCK),IVORY,TRIM0#
main71930-47020-C0×2i201509-201710
W(LOCK),BLACK,TRIM0#,2#,3#,4#; W(LOCK),BLACK,TRIM2#,4#
main71930-47020-C4×2i202007
W(LOCK),BLACK,TRIM0#,1#,2#,5#; W(LOCK),BLACK,TRIM0#,2#,4#,5#,6#
main71930-47020-L1×2i201509-201908
W(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#; W(LOCK),NOBLE BROWN,TRIM5#
main71931-47020-A4×2i201509-201908
W/O(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#; W/O(LOCK),IVORY,TRIM0#
main71931-47020-C0×2i201509-201710
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#; W/O(LOCK),BLACK,TRIM2#,4#
main71931-47020-C4×2i201908-202007
W/O(LOCK),BLACK,TRIM04,2#,4#,5#,6#; W/O(LOCK),BLACK,TRIM2#,4#,5#
main71931-47020-L1×2i201509-201908
W/O(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#; W/O(LOCK),NOBLE BROWN,TRIM5#
71940AHEADREST ASSY, REAR SEAT
main71940-48890-A0×2i201509-201703
IVORY,TRIM0#
main71940-48890-C0×2i201509-201703
BLACK,TRIM2#
main71940-48890-E0×2i201509-201703
NOBLE BROWN,TRIM4#
main71940-48890-F0×2i201509-201703
TOPAZ BROWN,TRIM5#
main71940-48891-A0×2i201703-201908
IVORY,TRIM0#
main71940-48891-C0×2i201703-201908
BLACK,TRIM2#
main71940-48891-E0×2i201703-201908
NOBLE BROWN,TRIM4#
main71940-48891-F0×2i201703-201908
TOPAZ BROWN,TRIM5#
main71940-48B30-A0×2i201908-202007
IVORY,TRIM0#
main71940-48B30-A1×2i201908
RICH CREAM,TRIM6#
main71940-48B30-E0×2i201908-202007
NOBLE BROWN,TRIM4#
main71940-48C40-A1×2i202007
IVORY,TRIM0#
main71940-48C40-C1×2i202010-202107
BLACK,TRIM2#
main71940-48780-C3×2i201908
"F-SPORT"*(F),BLACK/LT.GRAY,TRIM2#,97,98
main71940-48780-D0×2i201908
"F-SPORT"*(F),RED,TRIM3#,99
main71940-48790-A2×2supersedes 71940-48B30-A0i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71940-48790-C2×2supersedes 71940-48B30-C4i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71940-48790-E3×2supersedes 71940-48B30-E0i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71940-48790-E4×2supersedes 71940-48B30-E1i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
main71940-48830-C0×2supersedes 71940-48B30-C4i201509-201703
"F-SPORT"*(F),BLACK,TRIM2#
main71940-48830-D0×2i201509-201703
"F-SPORT"*(F),DK.ROSE,TRIM3#
main71940-48831-C0×2supersedes 71940-48B30-C4i201703-201908
"F-SPORT"*(F),BLACK,TRIM2#
main71940-48831-D0×2i201703-201908
"F-SPORT"*(F),DK.ROSE,TRIM3#
main71940-48870-A0×2supersedes 71940-48B30-A0i201509-201703
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71940-48870-C0×2supersedes 71940-48B30-C4i201509-201703
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71940-48870-E0×2supersedes 71940-48B30-E0i201509-201703
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71940-48870-F0×2supersedes 71940-48B30-E1i201509-201703
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),TOPAZ BROWN,TRIM5#
main71940-48871-A0×2supersedes 71940-48B30-A0i201703-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71940-48871-C0×2supersedes 71940-48B30-C4i201703-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71940-48871-E0×2supersedes 71940-48B30-E0i201703-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71940-48871-F0×2supersedes 71940-48B30-E1i201703-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),TOPAZ BROWN,TRIM5#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-48550-A0i201509-201908
IVORY,TRIM0#
main71960-48550-C0i201608-201908
BLACK,TRIM2#
main71960-48550-E0i201509-201908
NOBLE BROWN,TRIM4#
main71960-48550-F0i201509-201908
TOPAZ BROWN,TRIM5#
main71960-48600-A5i202007-202112
IVORY,TRIM0#
main71960-48600-C5i202010-202107
BLACK,TRIM2#
main71960-48630i201908-202007
main71960-48670-A1i201908-202112
RICH CREAM,TRIM6#
main71960-48890-A1i202201
IVORY,TRIM0#
main71960-48A90-A1i202201
RICH CREAM,TRIM6#
main71960-48470supersedes 71960-48530i201509-201608
"F-SPORT"*(F)
main71960-48560-A0supersedes 71960-48A90-A0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71960-48560-C0supersedes 71960-48A90-C0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71960-48560-E0supersedes 71960-48A90-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71960-48560-F0supersedes 71960-48A90-E1i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),TOPAZ BROWN,TRIM5#
main71960-48570-C0i201608-201908
"F-SPORT"*(F),BLACK,TRIM2#
main71960-48570-D0i201608-201908
"F-SPORT"*(F),DK.ROSE,TRIM3#
main71960-48610i201908-202107
"F-SPORT"*(F)
main71960-48650-C3i201908-202112
"F-SPORT"*(F),BLACK/LT.GRAY,TRIM2#,97,98
main71960-48650-D0i201908-202112
"F-SPORT"*(F),RED,TRIM3#,99
main71960-48660-C2supersedes 71960-48A90-C0i201908-202112
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71960-48660-E5supersedes 71960-48A90-E1i201908-202112
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
main71960-48A70-C0i202201
"F-SPORT"*(F),BLACK/LT.GRAY,TRIM2#,97,98
main71960-48A70-D0i202201
"F-SPORT"*(F),RED,TRIM3#,99
main71960-48A80-A0supersedes 71960-48A90-A0i202201
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main71960-48A80-C0supersedes 71960-48A90-C0i202201
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main71960-48A80-E0supersedes 71960-48A90-E0i202201
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main71960-48A80-E1supersedes 71960-48A90-E1i202201
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
71970BSUPPORT ASSY, REAR SEAT HEADREST, RH
main71970-48120-A0i201908-202007
IVORY,TRIM0#; IVORY,TRIM04
main71970-48120-C0i201509-201806
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#
main71970-48120-C1i201908-202007
BLACK,TRIM04,2#,4#,5#,6#; BLACK,TRIM2#,4#,5#
main71970-48120-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#; NOBLE BROWN,TRIM5#
71990ASUPPORT ASSY, REAR SEAT HEADREST, LH
main71990-48010-A0i201908-202007
IVORY,TRIM0#; IVORY,TRIM04
main71990-48010-C0i201509-201806
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#
main71990-48010-C1i201806-201908
BLACK,TRIM2#; BLACK,TRIM2#,4#
main71990-48010-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#; NOBLE BROWN,TRIM5#
72087COVER, REAR SEAT CENTER ARMREST, NO.1
main72087-48230i201908
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
main72525-48040-A0i201908-202007
IVORY,TRIM02; IVORY,TRIM04
main72525-48040-C0i201509-201908
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#
main72525-48040-E1i201509-201908
NOBLE BROWN,TRIM0#,5#
72551FCOVER, RECLINING LINK, RH NO.1
main72551-48070i201908
72551GCOVER, RECLINING LINK, RH NO.2
main72551-48080i201908
72552FCOVER, RECLINING LINK, LH NO.1
main72552-48070i201908
72552GCOVER, RECLINING LINK, LH NO.2
main72552-48080i201908
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-48030i201509-201908
72661GLEVER, REAR SEATBACK LOCK
main72661-48040-A0i201908
IVORY,TRIM0#
main72661-48040-A2i201908
RICH CREAM,TRIM6#
main72661-48040-C0i201509-201908
BLACK,TRIM05,06,2#,30,31,4#; BLACK,TRIM2#,4#
main72661-48040-D0i201509-201908
DK.ROSE,TRIM30,31
main72661-48040-E0i201908
NOBLE BROWN,TRIM4#
main72661-48040-E1i201908
OCHER,TRIM5#
main72661-48040-F0i201509-201908
TOPAZ BROWN,TRIM5#
main72661-48040-D1i201908-202107
"F-SPORT"*(F),RED,TRIM3#,99
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-48140i201509-201908
72749BSPACER, REAR SEAT RECLINING, NO.1
main72749-42010i201509-201908
72749CSPACER, REAR SEAT RECLINING, NO.2
main72749-48030×2i201908
72810BARMREST ASSY, NO.1 SEAT
main72810-48240-A0i202007
IVORY,TRIM0#
main72810-48240-C1i202010-202107
BLACK,TRIM2#
main72810-48250-A0i201908-202007
IVORY,TRIM0#
main72810-48250-A1i201908
RICH CREAM,TRIM6#
main72810-48250-C0i201908
BLACK,TRIM2#,9#
main72810-48250-E0i201908-202007
NOBLE BROWN,TRIM4#
main72810-48320-A1i201509-201908
IVORY,TRIM0#
main72810-48320-C0i201509-201908
BLACK,TRIM2#
main72810-48320-D0i201509-201908
DK.ROSE,TRIM3#
main72810-48320-E0i201509-201908
NOBLE BROWN,TRIM4#
main72810-48320-F0i201509-201908
TOPAZ BROWN,TRIM5#
main72810-48250-D0i201908-202107
"F-SPORT"*(F),RED,TRIM3#,99
main72810-48260-A0supersedes 72810-48250-A0i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main72810-48260-C0i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main72810-48260-E0supersedes 72810-48250-E0i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main72810-48260-E1supersedes 72810-48250-E2i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),OCHER,TRIM5#
main72810-48330-A0supersedes 72810-48250-A0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
main72810-48330-C0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
main72810-48330-E0supersedes 72810-48250-E0i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM4#
main72810-48330-F0supersedes 72810-48250-E2i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),TOPAZ BROWN,TRIM5#
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
main72831-48010i201509-201908
72868COVER, CENTER ARMREST HINGE, RH
main72868-48040-A0i201908-202007
IVORY,TRIM00,04; IVORY,TRIM02
main72868-48040-C0i202007
BLACK,TRIM0#,1#,2#,4#,5#; BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
main72868-48040-E0i201509-201908
NOBLE BROWN,TRIM5#
72869COVER, CENTER ARMREST HINGE, LH
main72869-48020-A0i201908-202007
IVORY,TRIM00,04; IVORY,TRIM02
main72869-48020-C0i201908-202007
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
main72869-48020-E0i201509-201908
NOBLE BROWN,TRIM5#
72978COVER, NO.2 CENTER SEATBACK
main72978-48040-A0i201908
IVORY,TRIM0#
main72978-48040-A2i201908
RICH CREAM,TRIM6#
main72978-48040-C0i201908
BLACK,TRIM2#,9#
main72978-48040-D0i201509-201908
DK.ROSE,TRIM30,31
main72978-48040-E0i201908
NOBLE BROWN,TRIM4#
main72978-48040-E1i201908
OCHER,TRIM5#
main72978-48040-F0i201509-201908
TOPAZ BROWN,TRIM5#
main72978-48040-D1i201908-202107
"F-SPORT"*(F),RED,TRIM3#,99
72996COVER, REAR SEATBACK, RH
main72996-48150-C0i201908-202007
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
main72996-48150-E0i201908-202007
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
main72996-78020-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
main72996-78020-E0i201509-201908
NOBLE BROWN,TRIM0#,5#; NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-48030i201509-201908
main73930-48031i202208
79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
main79101-48080i201509-201908
main79101-48100i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
main79101-48110supersedes 79101-48090i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
79157COVER, NO.1 SEATBACK
main79157-48080-A0i201908-202007
IVORY,TRIM00,04; IVORY,TRIM02
main79157-48080-C0i201509-201908
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main79157-48080-E0i201509-201908
NOBLE BROWN,TRIM5#
79873WIRE, FOLD SEATBACK
main79873-48030i201908
8202WIRING & CLAMP
→ Go to FIG 82-02
87501DCONTROL SUB-ASSY, SEAT HEATER
main87501-30041×2i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
87510PHEATER ASSY, SEAT
main87510-48210i201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
87510QHEATER ASSY, SEAT
main87530-48090i201509-201908
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR)
7889948040BOLT, FRONT SEAT
main78899-48040
9010906401
main90109-06401
9010906402
main90109-06402
9010906403
main90109-06403
9010908325
main90109-08325
9010908326
main90109-08326
9010914016
main90109-14016
9016850078
main90168-50078
9017808012
main90178-08012
9098012365
main90980-12365
9098012742
main90980-12742
9155180630
main91551-80630
9415180641
main94151-80641
9417060600
main94170-60600
9418560600
main94185-60600

66 parts on this diagram · 11 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
