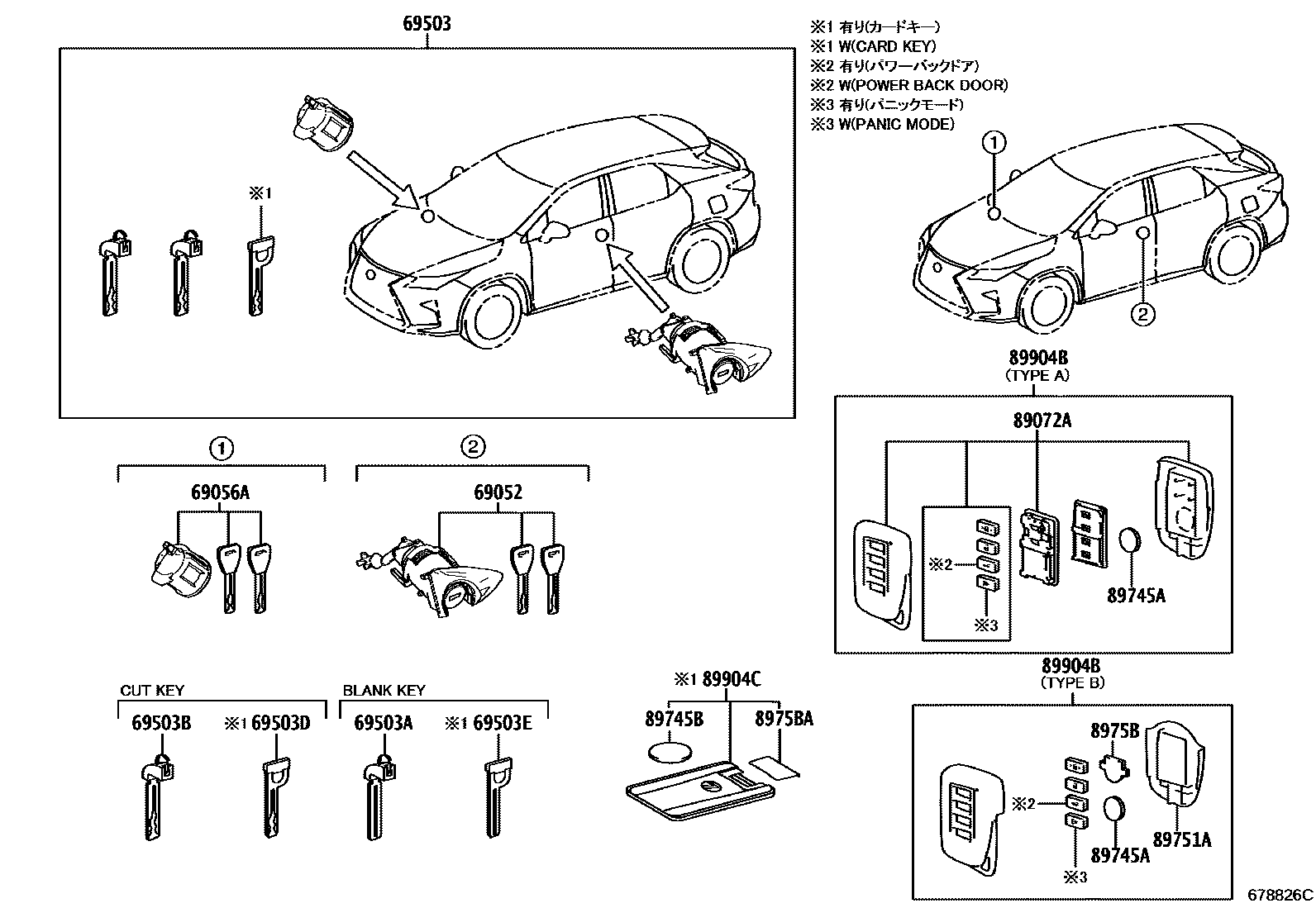

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
ELECTRICAL KEY(2) FOR HV & CARD KEY(1)
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
MASTER KEY,ELECTRICAL KEY(2) & CARD KEY(1)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
89745ABATTERY, TRANSMITTER
CR2032
CR2032
89745BBATTERY, TRANSMITTER(CARD KEY)
CR2412,ELECTRICAL KEY(2) & CARD KEY(1)
89751ACOVER, TRANSMITTER HOUSING
8975BCOVER, TRANSMITTER BATTERY HOUSING
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
ELECTRICAL KEY(2) & CARD KEY(1)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
ELECTRICAL KEY(2) & CARD KEY(1)
ELECTRICAL KEY(2) FOR HV & CARD KEY(1)
15 parts on this diagram · 1 diagram in section
