REAR DOOR LOCK & HANDLE

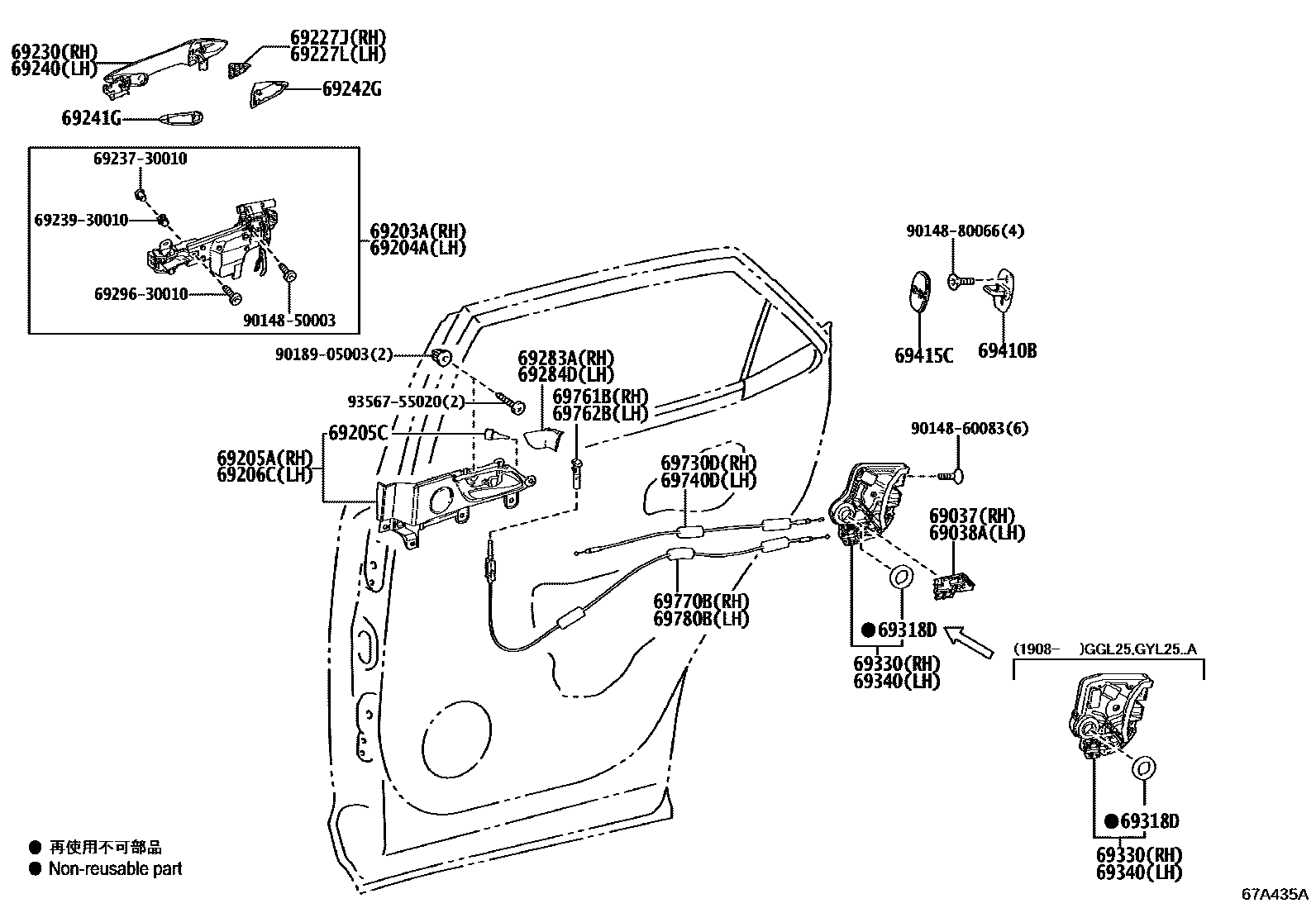

Parts diagram
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
main69037-30010i201908
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
main69038-30010i201908
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-48060i201908
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-48060i201908
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main67607-48030-C0i201509-201905
BLACK,TRIM05,2#,3#,4#; BLACK,TRIM2#,4#
main67607-48041-C0supersedes 67607-48031-C0i201908-202007
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
main67607-48041-E0supersedes 67607-48031-E0i201908-202007
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
main67607-48040-C0i201509-201905
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#; SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; SPEAKER-12SPEAKER,BLACK,TRIM2#,4#; SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#
main67607-48040-E0supersedes 67607-48030-E0i201509-201905
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#; SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04014×2i201908
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main67608-48030-C0i201509-201905
BLACK,TRIM05,2#,3#,4#; BLACK,TRIM2#,4#
main67608-48041-C0supersedes 67608-48031-C0i201908-202007
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
main67608-48041-E0supersedes 67608-48031-E0i201908-202007
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
main67608-48040-C0i201509-201905
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#; SPEAKER-12SPEAKER,BLACK,TRIM05,06,2#,3#,4#; SPEAKER-12SPEAKER,BLACK,TRIM2#,4#; SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#
main67608-48040-E0supersedes 67608-48030-E0i201509-201905
"F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "F-SPORT"*(F)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; "VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#; SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#; SPEAKER-15SPEAKER & *MAR,NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-78010i201908
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69228-78010i201509-201908
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-48110-A0i201509-201908
WHITE NOVA GF.,083
main69210-48110-A1i201908
SONIC QUARTZ,085
main69210-48110-B0i201908-202107
MERCURY GRAY MC.,1H9
main69210-48110-B1i201509-201908
PLATINUM SILVER ME.,1J4
main69210-48110-B2i201908
SONIC TITANIUM,1J7
main69210-48110-B5i202107
SONIC CHROME,1L1
main69210-48110-B6i202107
SONIC IRIDIUM,1L2
main69210-48110-C0i201908
BLACK,212
main69210-48110-C1i201908
GRAPHITE BLACK GF.,223
main69210-48110-D0i201908
RED MC.CS.,3R1
main69210-48110-E0i201509-201908
SLEEK ECRU ME.,4U7
main69210-48110-E1i201509-201908
AMBER CS.,4X2
main69210-48110-E4i201908
ICE ECRU M.M.,4X8
main69210-48110-G0i201908
TERRANE KHAKI M.M.,6X4
main69210-48110-J0i201908
DEEP BLUE MC.,8X5
main69210-48110-J1i201908
HEAT BLUE CONTRAST LAYERI,8X1
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69220-48070-A0i201908
WHITE NOVA GF.,083
main69220-48070-A1i201509-201908
SONIC QUARTZ,085
main69220-48070-B0i201908-202107
MERCURY GRAY MC.,1H9
main69220-48070-B1i201509-201908
PLATINUM SILVER ME.,1J4
main69220-48070-B2i201509-201908
SONIC TITANIUM,1J7
main69220-48070-B5i202107
SONIC CHROME,1L1
main69220-48070-B6i202107
SONIC IRIDIUM,1L2
main69220-48070-C0i201908
BLACK,212
main69220-48070-C1i201509-201908
GRAPHITE BLACK GF.,223
main69220-48070-D0i201509-201908
RED MC.CS.,3R1
main69220-48070-E0i201509-201908
SLEEK ECRU ME.,4U7
main69220-48070-E1i201509-201908
AMBER CS.,4X2
main69220-48070-E4i201908
ICE ECRU M.M.,4X8
main69220-48070-G0i201908
TERRANE KHAKI M.M.,6X4
main69220-48070-J0i201509-201908
DEEP BLUE MC.,8X5
main69220-48070-J1i201608-201908
HEAT BLUE CONTRAST LAYERI,8X1
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-78010i201509-201908
RH
main69242-78010i201509-201908
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-78020i201509-201908
RH
main69242-78020i201509-201908
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-48010-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
main69283-48010-E0i201908-202007
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-48010-C0i201509-201908
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
main69284-48010-E0i201509-201908
NOBLE BROWN,TRIM0#,5#; NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i201908
69330LOCK ASSY, REAR DOOR, RH
main69050-48070i201509-201908
main69050-48080i201908
69340LOCK ASSY, REAR DOOR, LH
main69060-48070i201509-201908
main69060-48080i201908
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33030×2i201509-201908
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-60020×2i201509-201908
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-48080i201509-201908
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-48080i201509-201908
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
main69761-48010i201509-201710
main69761-48030i201908
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
main69761-48010i201509-201710
main69761-48030i201710-201908
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-48090i201509-201709
main69770-48091i201908
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-48090i201509-201709
main69770-48091i201908
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
