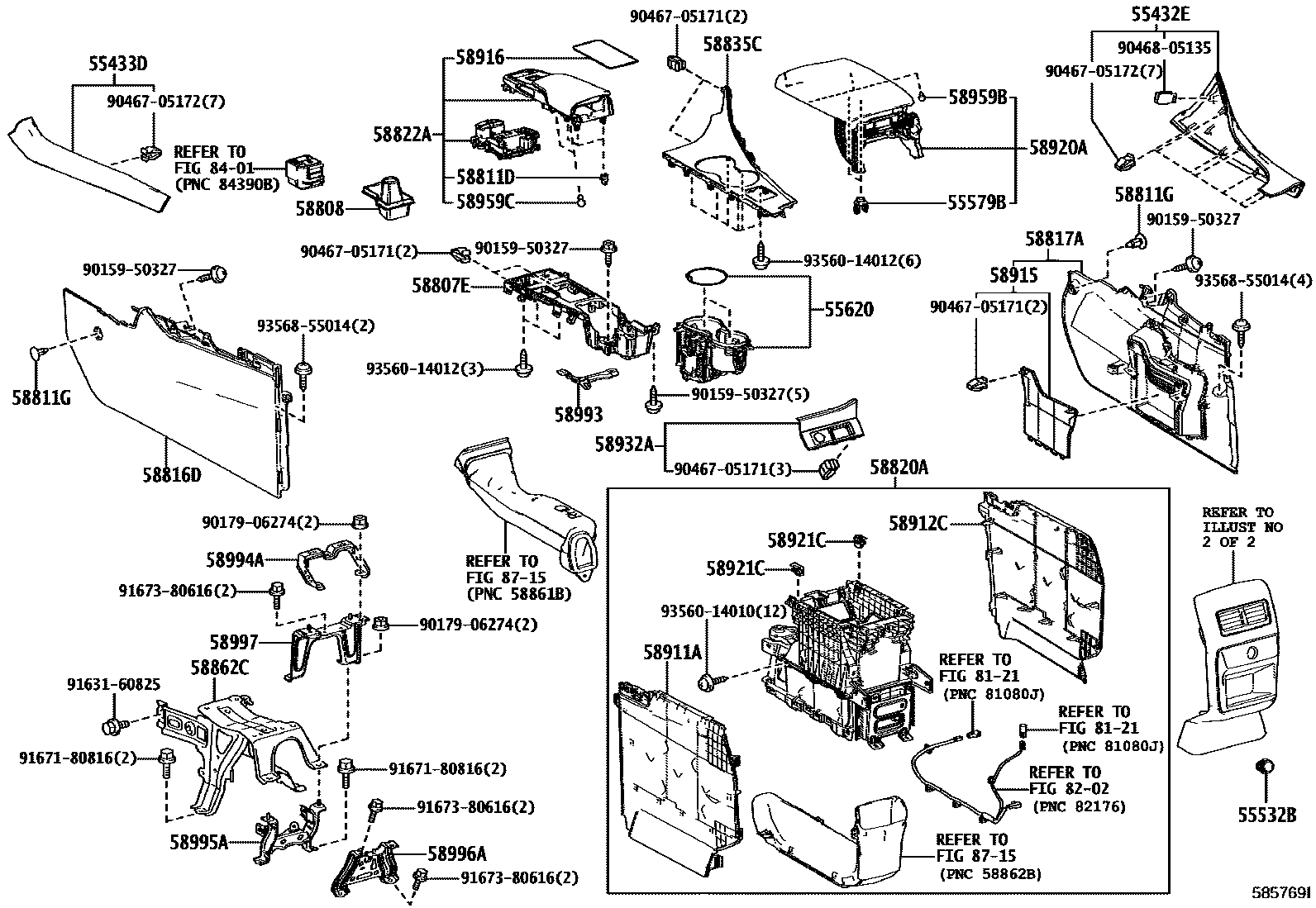

CONSOLE BOX & BRACKET
55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
WHITE,TRIM05,06
RICH CREAM,TRIM6#
IVORY,TRIM0#; IVORY,TRIM00,01,02,03,04
RICH CREAM,TRIM6#
IVORY,TRIM0#
WHITE ASH,TRIM1#
BLACK,TRIM2#
BLACK/WHITE,TRIM27,28,97
BLACK,TRIM2#; BLACK,TRIM20,23,24,25,26,98
DK.ROSE,TRIM3#
RED,TRIM3#,99
NOBLE BROWN,TRIM4#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
TOPAZ BROWN,TRIM5#
55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
WHITE,TRIM05,06
RICH CREAM,TRIM6#
IVORY,TRIM0#; IVORY,TRIM00,01,02,03,04
RICH CERAM,TRIM6#
IVORY,TRIM0#
WHITE ASH,TRIM1#
BLACK,TRIM2#
BLACK/WHITE,TRIM27,28,97
BLACK,TRIM2#; BLACK,TRIM20,23,24,25,26,98
DK.ROSE,TRIM3#
RED,TRIM3#,99
NOBLE BROWN,TRIM4#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
TOPAZ BROWN,TRIM5#
55532BCOVER, CIGAR LIGHTER HOLE
55579BBAND, GLOVE COMPARTMENT BOX
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58807EFRAME SUB-ASSY, SHIFTING HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK/CRIMSON,TRIM4#
BLACK/LT.GRAY,TRIM05,06,2#,3#; BLACK/LT.GRAY,TRIM2#
NOBLE BROWN/IVORY,TRIM00,04; NOBLE BROWN/IVORY,TRIM02
58811DCLIP(FOR CONSOLE BOX)
58811GCLIP(CONSOL BOX)
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#; NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM2#,3#,4#
NOBLE BROWN,TRIM00,04
58820ABOX ASSY, CONSOLE COMPARTMENT
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#; BLACK,TRIM02,1#,2#,4#,5#
NOBLE BROWN,TRIM00,04; NOBLE BROWN,TRIM02
58822APANEL, CONSOLE, UPPER REAR
RICH CREAM,TRIM6#
IVORY,TRIM0#
BLACK/LT.GRAY,TRIM2#; BLACK/LT.GRAY,TRIM2#,97,98
RED,TRIM3#,99
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
WHITE/LT.GRAY,TRIM05,06
RICH CREAM/TERRA COTTA,TRIM6#
IVORY,TRIM00,01,02,03,04
BLACK/LT.GRAY,TRIM2#; EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2#
DK.ROSE,TRIM3#
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4#; NOBLE BROWN,TRIM4#
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0#; IVORY,TRIM0#
BLACK/LT.GRAY,TRIM2#; EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2#
DK.ROSE,TRIM3#
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4#; NOBLE BROWN,TRIM4#
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
58835CORNAMENT, CONSOLE BOX
BLACK,TRIM2#
DK.BROWN,TRIM2#
DK.BROWN,TRIM4#,5#
NATURAL BROWN,TRIM0#
BLACK,TRIM0#,2#,4#,5#,6#
DK.BROWN,TRIM4#
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),OPENPORE,TRIM23,53,9#; OPEN PORE,TRIM2#,5#
DK.BROWN,TRIM1#,29,55
NATURAL BROWN,TRIM0#
"F-SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),MD.SILVER ALUMINUM,TRIM2#,3#
"F-SPORT"*(F)&DOOR TRIM-ALUMINUM & WITH(ILLUMINATION LAMP),MD.SILVER ALUMINUM,TRIM2#,3#
"F-SPORT"*(F)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM00,06,20,26,3#,40,50,60; "VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM00,06,20,26,3#,40,50,60
"F-SPORT"*(F)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM0#,20,26,28,3#,4#,50; "VERSION L"*(L)&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),DK.GRAY AND SILVER,TRIM0#,20,26,28,3#,4#,50
58862CSUPPORT, CONSOLE BOX, NO.2
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,4#,5#; BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM0#,5#; NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM05,06,2#,3#,4#; BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#; NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
58915PANEL, BOX BOTTOM
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#
58916MAT, BOX BOTTOM
58920AARMREST ASSY, REAR CONSOLE
BLACK/NOBLE BROWN/CRIMSON,TRIM4#
WHITE,TRIM05,06
RICH CREAM,TRIM6#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK/RICH CREAM,TRIM6#
BLACK/IVORY,TRIM0#
BLACK/BLACK/LT.GRAY,TRIM2#; BLACK/BLACK/LT.GRAY,TRIM2#,97,98
DK.ROSE,TRIM3#
RED,TRIM3#,9#; RED,TRIM3#,99
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
TOPAZ BROWN,TRIM5#
58921CPLATE, BOX, UPPER NO.1
58932AGARNISH, REAR CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9015950327
main90159-50327
9017906274
main90179-06274
9046705171
main90467-05171
9046705172
main90467-05172
9046805135
main90468-05135
9163160825
main91631-60825
9167180816
main91671-80816
9167380616
main91673-80616
9356014010
main93560-14010
9356014012
main93560-14012
9356855014
main93568-55014
44 parts on this diagram · 4 diagrams in section
