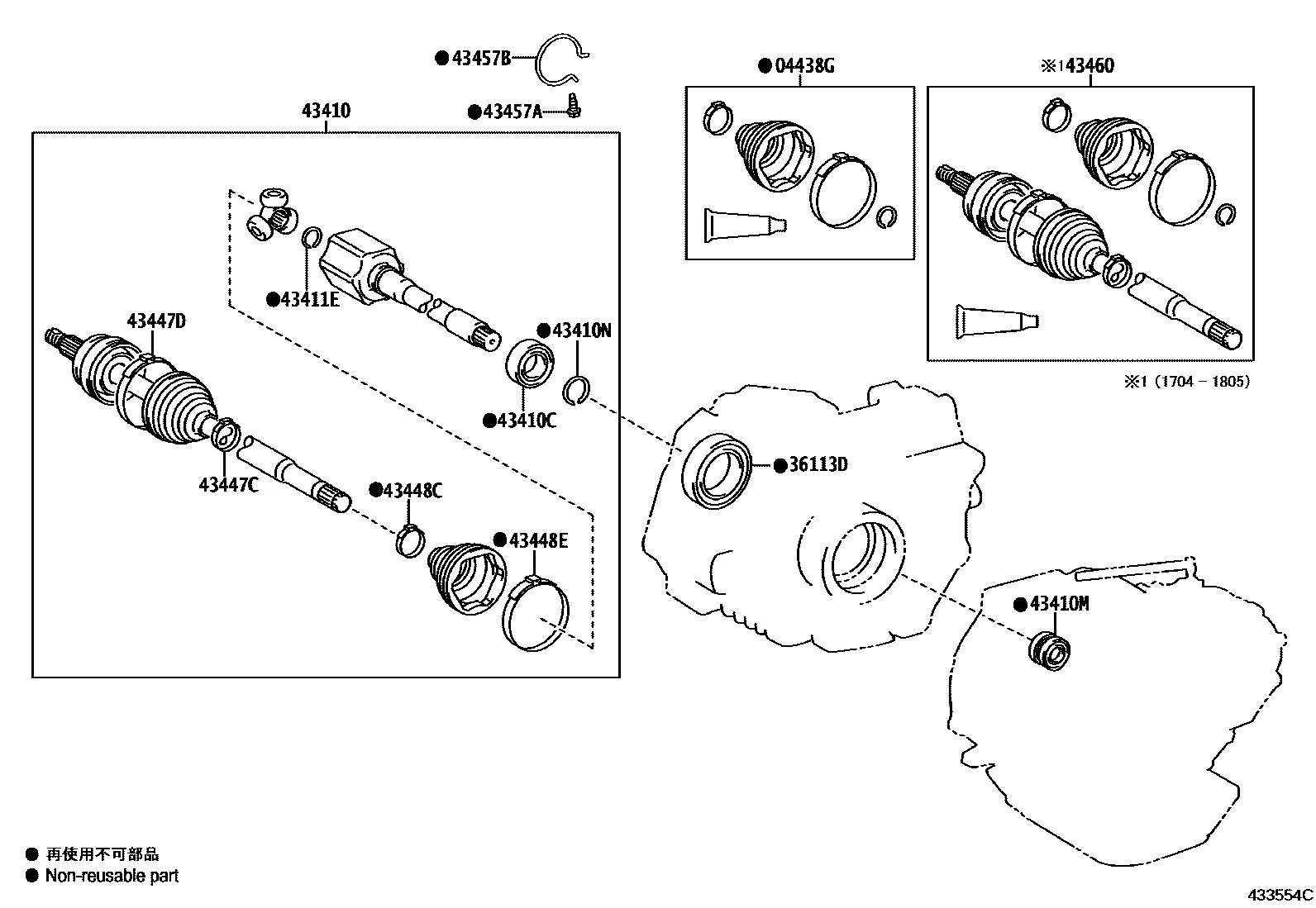

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH 0005 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-48160iGGL25,GYL25201509-201804

main04437-48161iGGL25,GYL25201804-201908

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-36006iGGL25201509-201908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-48130iGGL25201509-201805

main43410-48150iGYL25201510-201805

main43410-48180iGGL25201908

main43410-48200iGYL25201805-201908

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iGGL25201908

main90363-36011iGGL25201509-201606

main90363-41003iGYL25201604-201908

main90363-41005iGYL25201510-201603

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40039iGYL25201510-201908

main90316-34001iGGL25201908

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-78010iGYL25201908

main43425-78040iGGL25201509-201908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-58030iGGL25,GYL25201509-201908

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48160iGGL25,GYL25201509-201908

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-78050iGGL25,GYL25201509-201908

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48140iGGL25,GYL25201509-201908

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-48130iGGL25,GYL25201509-201908

43457BRACKET, DRIVE SHAFT BEARING

main43457-33030iGYL25201908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iGYL25201510-201908

*10-1.25PX19.8-8.3

main90901-19060iGGL25201509-201908

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iGGL25201509-201908

main90521-78002iGYL25201510-201908

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80361iGYL25201510-201804

main43470-80362iGGL25201704-201804

main43470-80431iGYL25201804-201805

main43470-80432iGGL25201804-201805

15 parts on this diagram · 5 diagrams in section
