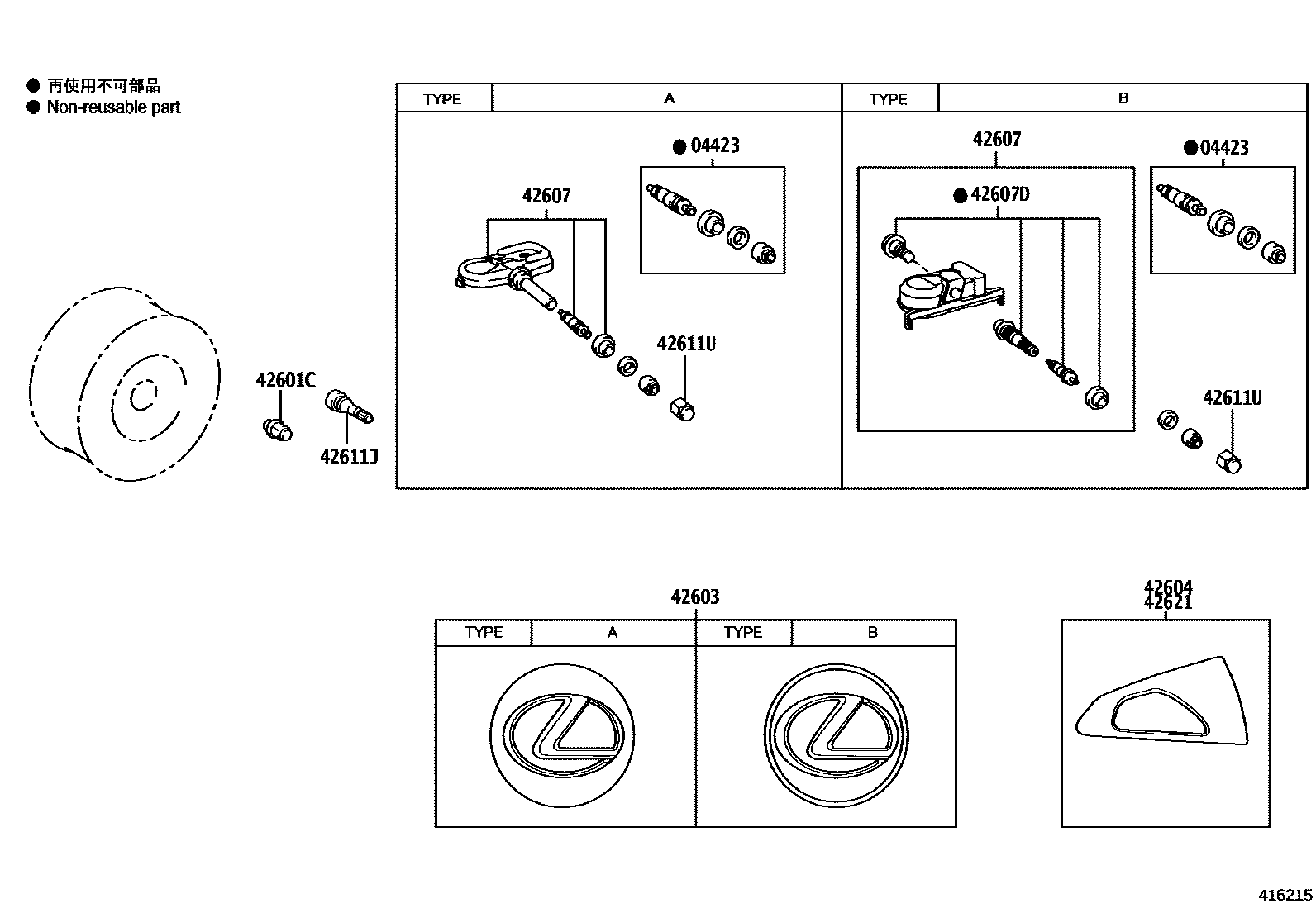

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4i201509-201908

42601WHEEL, DISC

main42611-48810×4i201509-201712

18X8J,#,TYPE A:REFER ILLUST.

sub42611-48811

main42611-48A30×4i201605-201712

18X8J,#,TYPE F:REFER ILLUST.

sub42611-48811

main4261A-48180×4i201712-201908

18X8J,#,TYPE A:REFER ILLUST.

sub4261A-48181

main4261A-48200×4i201712-201801

18X8J,#,TYPE F:REFER ILLUST.

sub4261A-48220

main42611-48830×4i201509-201908

20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE NOISE REDUCTION,TYPE B:REFER ILLUST.

sub42611-48831

main42611-48850×4supersedes 4261A-48201i201509-201907

20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE G:REFER ILLUST.

main42611-48851×4supersedes 4261A-48201i201908

20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE,TYPE G:REFER ILLUST.

sub42611-48860

main42611-48890×4i201509-201908

20X8J,#,TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL,TYPE E:REFER ILLUST.

sub42611-48891

main42611-48B10×4i201908-202107

20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOWTYRE COLORED MACHINING,TYPE G:REFER ILLUST.

main42611-48B20×4i202107

20X8J,#,TIRE & DISC WHEEL-235/55R20 MUD&SNOWTYRE COLORED MACHINING,TYPE G:REFER ILLUST.

main4261A-48160×4i201509-201907

20X8J,*DPMP,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE(F SPORT),TYPE D:REFER ILLUST.

main4261A-48161×4i201908

20X8J,*DPMP,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE,F SPORT,TYPE D:REFER ILLUST.

main4261A-48230×4i201908

20X8J,*HCMP,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE HIMETA,TYPE I:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201908

main90942-01115×20i201908-202107

"F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE,F SPORT

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50380×4i201908-201912

*ALU,TYPE B:REFER ILLUST.

main42603-50381×4i202001

*ALU,TYPE B:REFER ILLUST.

main42603-30550×4supersedes 42603-50370i201509-201712

*CHR,TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE NOISE REDUCTION,TYPE B:REFER ILLUST.

sub42603-30551

main42603-53110×4i201509-201908

*ALU,"F-SPORT"*(F)&TIRE & DISC WHEEL-235/55R20 MUD&SNOW TIRE MACHINING,TYPE B:REFER ILLUST.

42604WHEEL CAP SET

main42604-48050i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLORTRIM(BKACK)

main42604-48060i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLORTRIM(AMBER)

main42604-48070i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLORTRIM(WHITE)

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48010×4i201509-201908

TYPE A:REFER ILLUST.

main42607-48020×4i201509-201908

TYPE A:REFER ILLUST.

main42607-53020×4i201908

TYPE B:REFER ILLUST.

main42607-53040×4i202107

TYPE B:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4i201908

TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201509-201908

TYPE A:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-05042×4i201509-201908

42621CAP, WHEEL

main42602-48030×20i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL

main42602-48040×20i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLORTRIM(BKACK)

main42602-48050×20i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLORTRIM(AMBER)

main42602-48060×20i201509-201908

TIRE & DISC WHEEL-235/55R20 M&S TIRE SELECTOR BULL&WHEEL CAP-CENTER ORNAMENT&COLORTRIM(WHITE)

10 parts on this diagram · 2 diagrams in section
