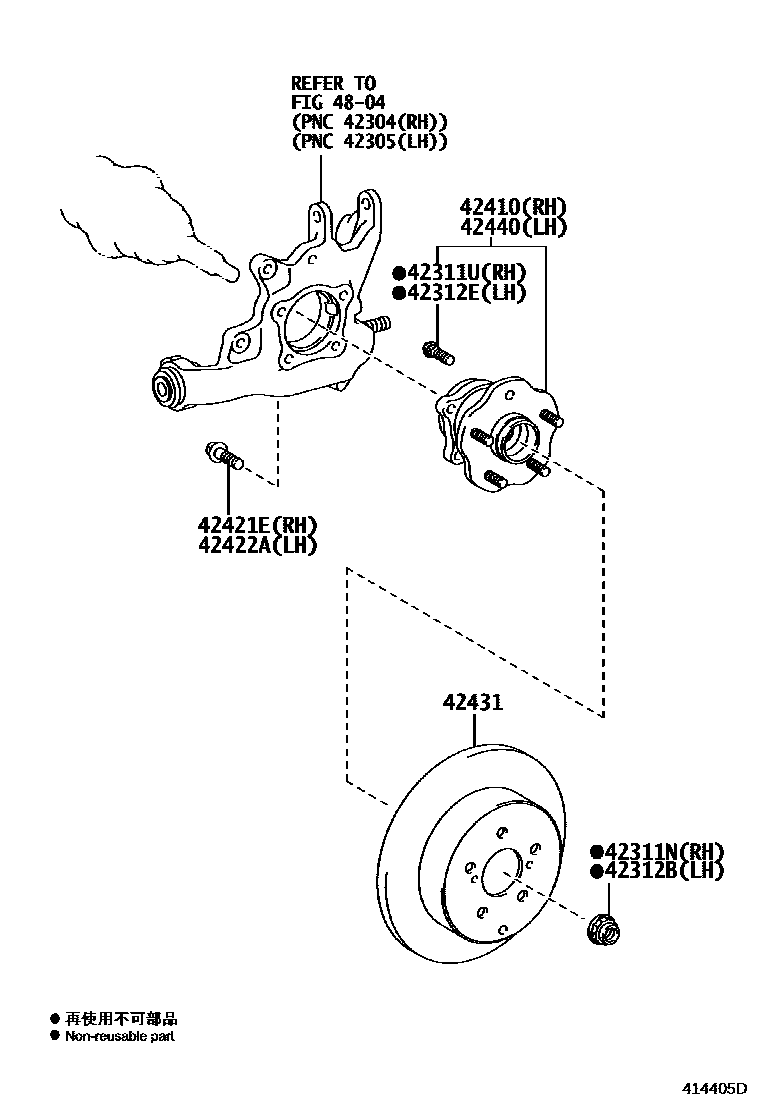

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGGL25,GYL25201509-201908

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02052×5iGGL25,GYL25201509-201908

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGGL25,GYL25201908

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02052×5iGGL25,GYL25201509-201908

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-48060iGGL25,GYL25201509-201902

main42410-48061iGGL25,GYL25201903-201908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-14097×4iGGL25,GYL25201509-201908

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-14097×4iGGL25,GYL25201509-201908

42431DISC, REAR

main42431-48090×2iGGL25,GYL25201509-201908

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-48060iGGL25,GYL25201509-201902

main42410-48061iGGL25,GYL25201903-201908

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

10 parts on this diagram · 3 diagrams in section
