Toyota 523430 — OIL COOLER & TUBE (ATM)

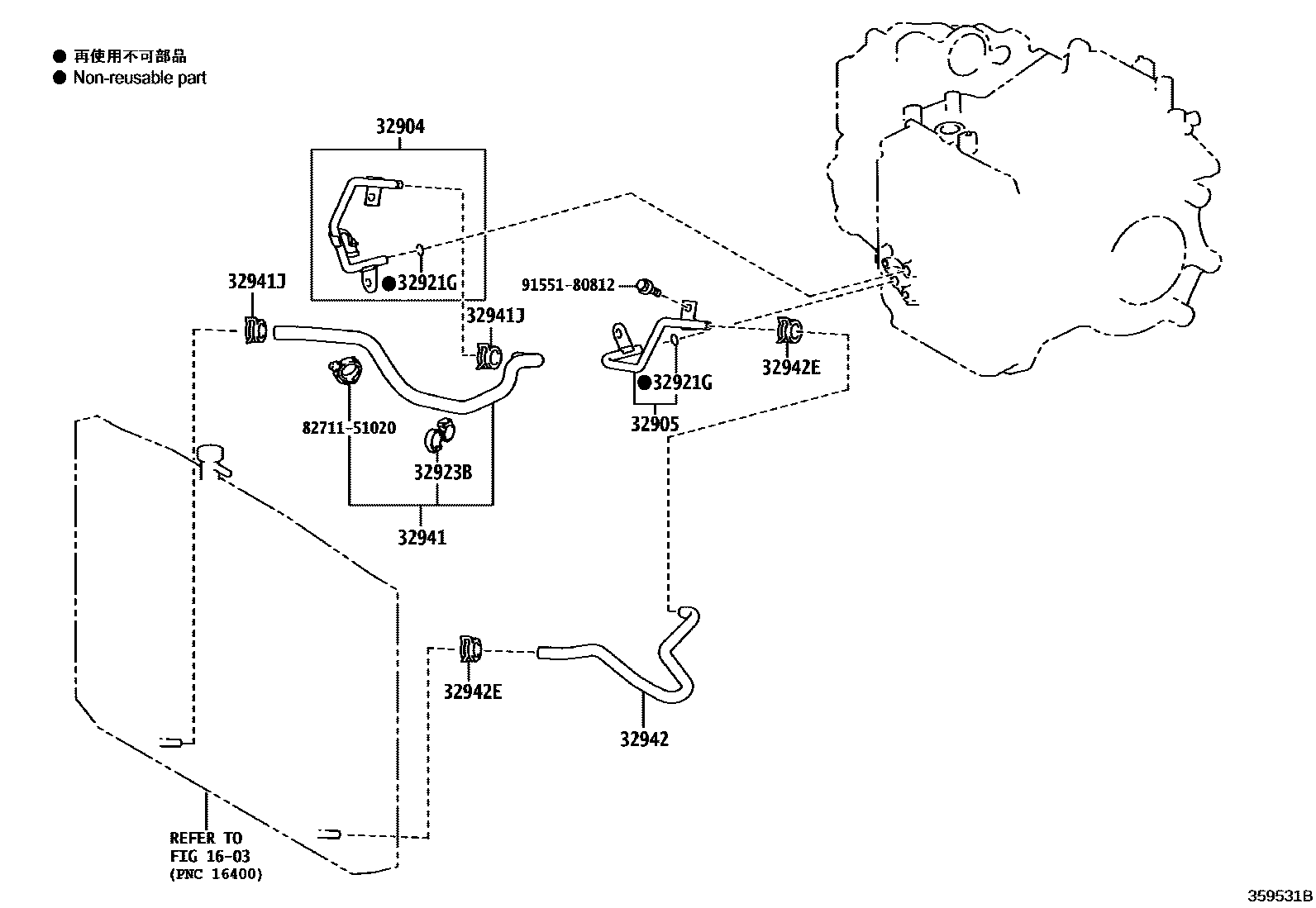

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

32921GRING, O(FOR OIL COOLER TUBE UNION)

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

32941HOSE, OIL COOLER INLET, NO.1

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

32942HOSE, OIL COOLER OUTLET, NO.1

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9155180812

12 parts on this diagram · 5 diagrams in section

OIL COOLER & TUBE (ATM) for Toyota 523430

This section contains 26 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota 523430. Key components include: RADIATOR & WATER OUTLET, TUBE SUB-ASSY, OIL COOLER INLET, NO.1, TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1, COOLER ASSY, OIL, BRACKET, OIL COOLER.
