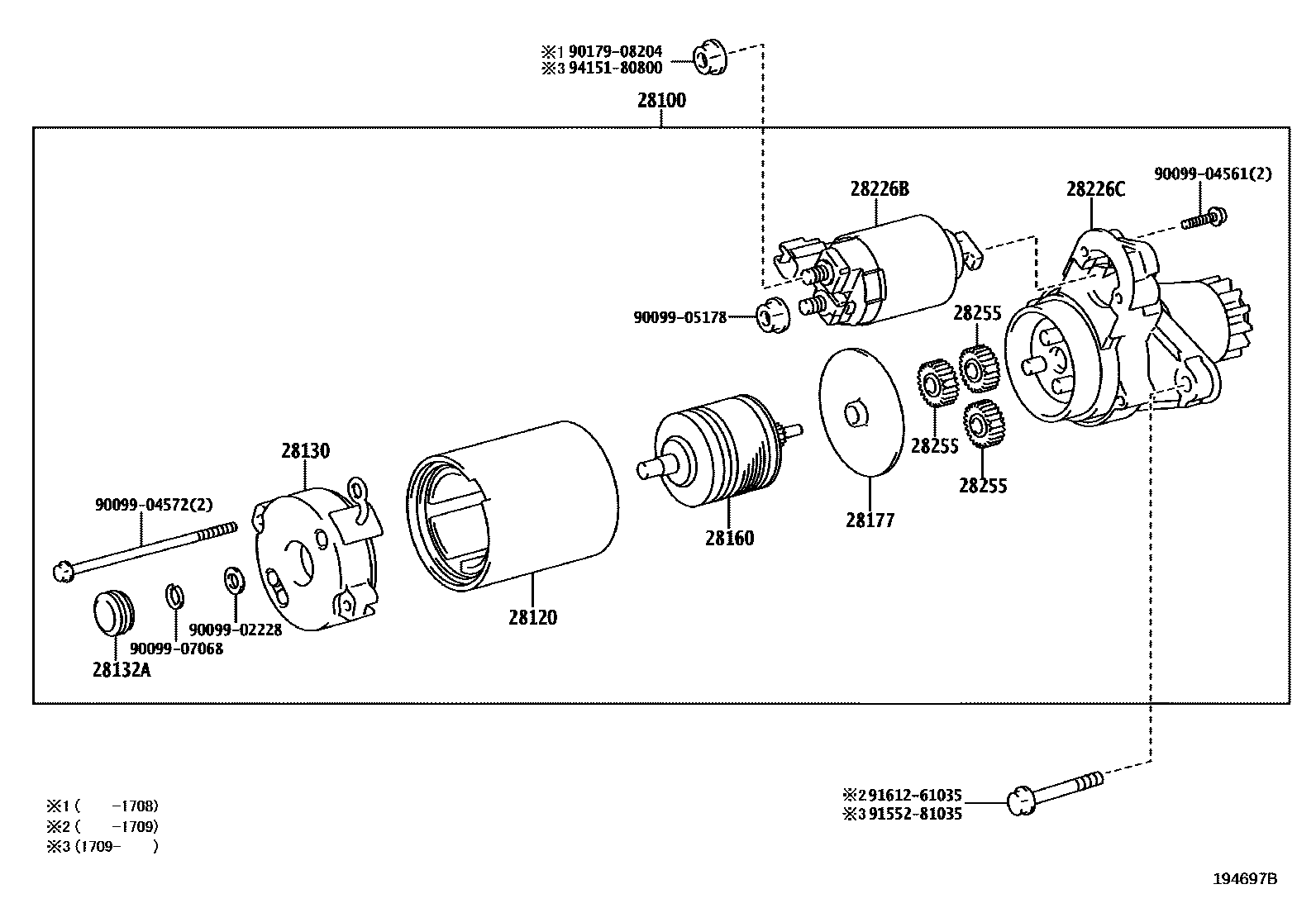

STARTER

0001 1 0002 1

28100STARTER ASSY

main28100-31200i2GRFKS..GGL25201509-201908

12V 1.7KW

main28100-31270i2GRFKS..GGL25201908

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28060i2GRFKS..GGL25201509-201908

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31200i2GRFKS..GGL25201509-201908

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFKS..GGL25201509-201908

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFKS..GGL25201509-201908

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFKS..GGL25201509-201908

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2GRFKS..GGL25201509-201908

main28226-31270i2GRFKS..GGL25201908

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-31200i2GRFKS..GGL25201509-201908

28255GEAR, PLANET

main28255-20020×3i2GRFKS..GGL25201509-201908

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9155281035

main91552-81035

9161261035

main91612-61035

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
