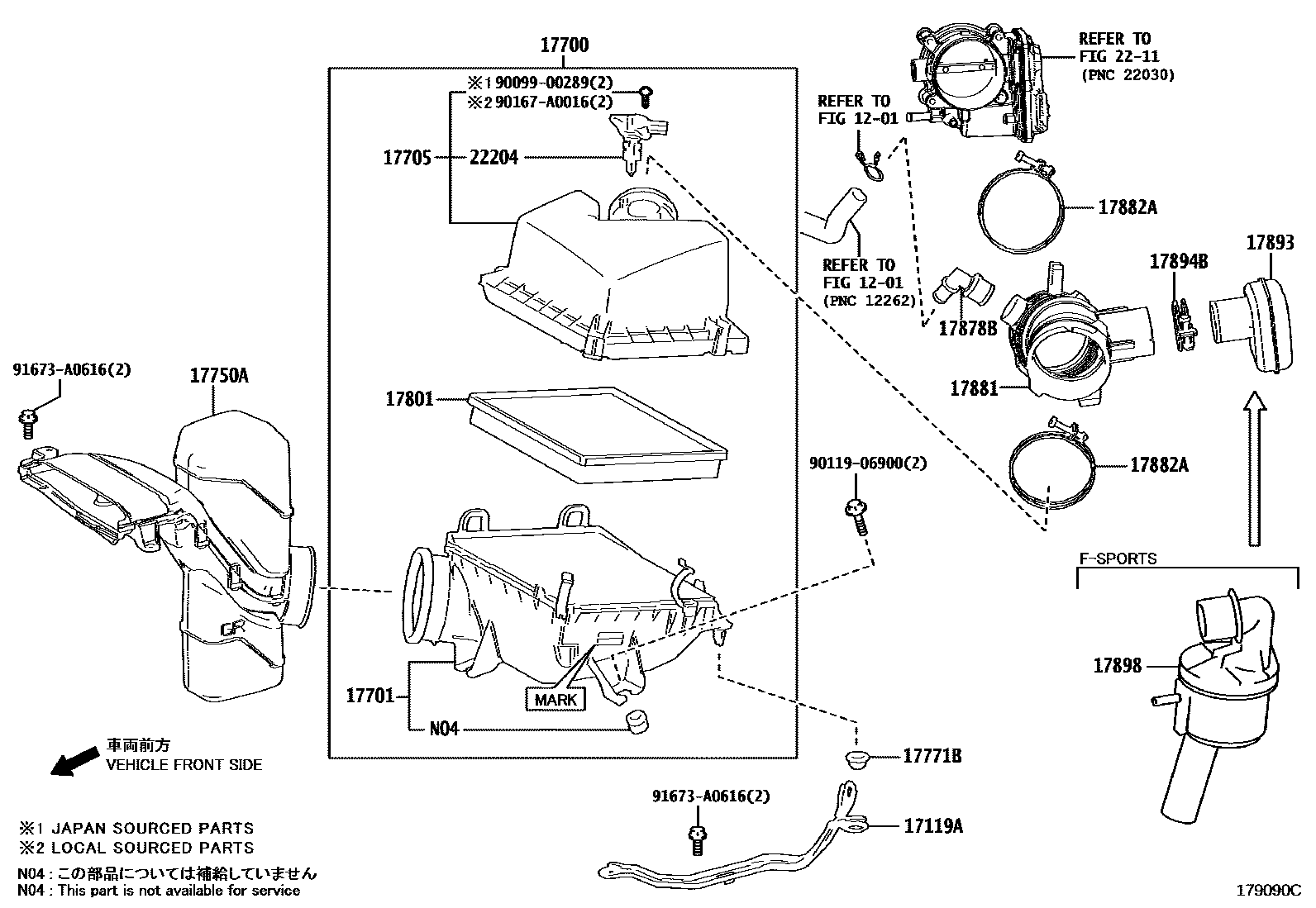

AIR CLEANER
1201VENTILATION HOSE
17700CLEANER ASSY, AIR
REFER TO PNC 17701
REFER TO PNC 17701
17701CASE SUB-ASSY, AIR CLEANER
MARK 17701-0P150
MARK 17701-31740
17705CAP SUB-ASSY, AIR CLEANER
REFER TO PNC 17701
REFER TO PNC 17701
17750AINLET ASSY, AIR CLEANER
17771BGROMMET(FOR AIR CLEANER BRACKET)
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(L)
(J)
(J)
17878BTUBE, VENTILATION
17881HOSE, AIR CLEANER, NO.1
MARK 17881-31410
MARK 17881-31411
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17898CREATOR, INTAKE AIR SOUND
"F-SPORT"*(F)
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
REFER TO PNC 17701
9009900289
main90099-00289
9011906900
main90119-06900
90167A0016
main90167-A0016
91673A0616
main91673-A0616
20 parts on this diagram · 2 diagrams in section
