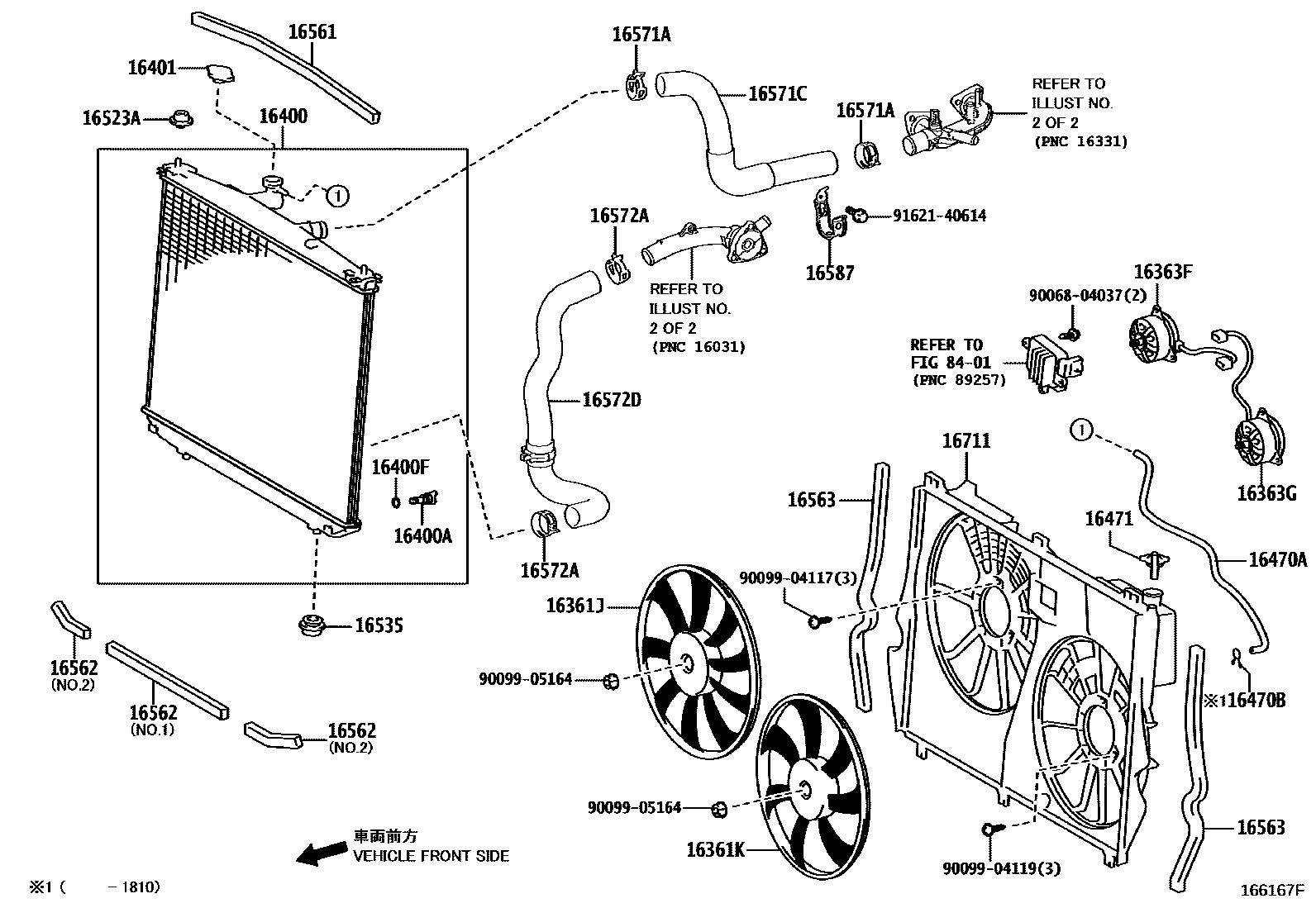

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1W/O OIL COOLER 0005 1W/OIL COOLER

16361JFAN, RH

main16361-31460i2GRFXS..GYL25201510-201908

main16361-31470i2GRFKS..GGL25201908

main16361-31450i2GRFKS..GGL25..B201509-201908

TOWING PACKAGE-3500LBS

16361KFAN, LH

main16361-31370i2GRFXS..GYL25201908

main16361-36010i2GRFKS..GGL25201908

main16361-31480i2GRFKS..GGL25..B201509-201908

TOWING PACKAGE-3500LBS

16363FMOTOR, COOLING FAN, RH

main16363-20280i2GRFKS..GGL25201908

main16363-31200i2GRFXS..GYL25201510-201908

main16363-31480i2GRFKS..GGL25..B201509-201908

TOWING PACKAGE-3500LBS

16363GMOTOR, COOLING FAN, LH

main16363-31470i2GRFKS..GGL25201509-201908

main16363-36090i2GRFXS..GYL25201510-201908

main16363-31450i2GRFKS..GGL25..B201509-201908

TOWING PACKAGE-3500LBS

16400RADIATOR ASSY

main16400-31890i2GRFKS..GGL25201908

main16400-31A30i2GRFXS..GYL25201510-201908

main16400-31A40i2GRFKS..GGL25..B201509-201908

TOWING PACKAGE-3500LBS

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-21280i2GR#..GGL25,GYL25201509-201908

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GR#..GGL25,GYL25201908

16401CAP SUB-ASSY, RADIATOR

main16401-31520i2GRFXS..GYL25201510-201601

main16401-31792i2GRFKS..GGL25201509-201601

main16401-31830i2GRFKS..GGL25201908

main16401-36020i2GRFXS..GYL25201908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-31460i2GR#..GGL25,GYL25; 2GRFKS..GGL25..B201509-201810

TOWING PACKAGE-3500LBS

main16377-31490i2GR#..GGL25,GYL25; 2GRFKS..GGL25..B201908

TOWING PACKAGE-3500LBS

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2GR#..GGL25,GYL25201509-201810

16471CAP SUB-ASSY, RESERVE TANK

main16405-31100i2GR#..GGL25,GYL25201509-201908

16523ACUSHION, RADIATOR SUPPORT

main16523-20020×2i2GR#..GGL25,GYL25201509-201908

16535SUPPORT, RADIATOR, LOWER

main16535-20030×2i2GR#..GGL25,GYL25201509-201908

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-31120i2GRFXS..GYL25201510-201908

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-31140i2GRFXS..GYL25201510-201908

NO.1

main16562-31150×2i2GRFKS..GGL25..B; 2GRFXS..GYL25201908

NO.2; TOWING PACKAGE-3500LBS,NO.2

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-31060×2i2GRFXS..GYL25201510-201908

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001×2i2GR#..GGL25,GYL25201509-201908

16571CHOSE, RADIATOR, NO.1

main16571-31370i2GR#..GGL25,GYL25201509-201908

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001×2i2GR#..GGL25,GYL25201509-201908

16572DHOSE, RADIATOR, NO.2

main16572-31420i2GR#..GGL25,GYL25201908

16587CLAMP, RADIATOR PIPE

main16587-31040i2GR#..GGL25,GYL25201509-201908

16711SHROUD, FAN

main16711-31650i2GRFXS..GYL25201510-201908

main16711-31670i2GRFKS..GGL25201908

main16711-31550i2GRFKS..GGL25..B201509-201908

TOWING PACKAGE-3500LBS

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9006804037

main90068-04037

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9162140614

main91621-40614

28 parts on this diagram · 5 diagrams in section
