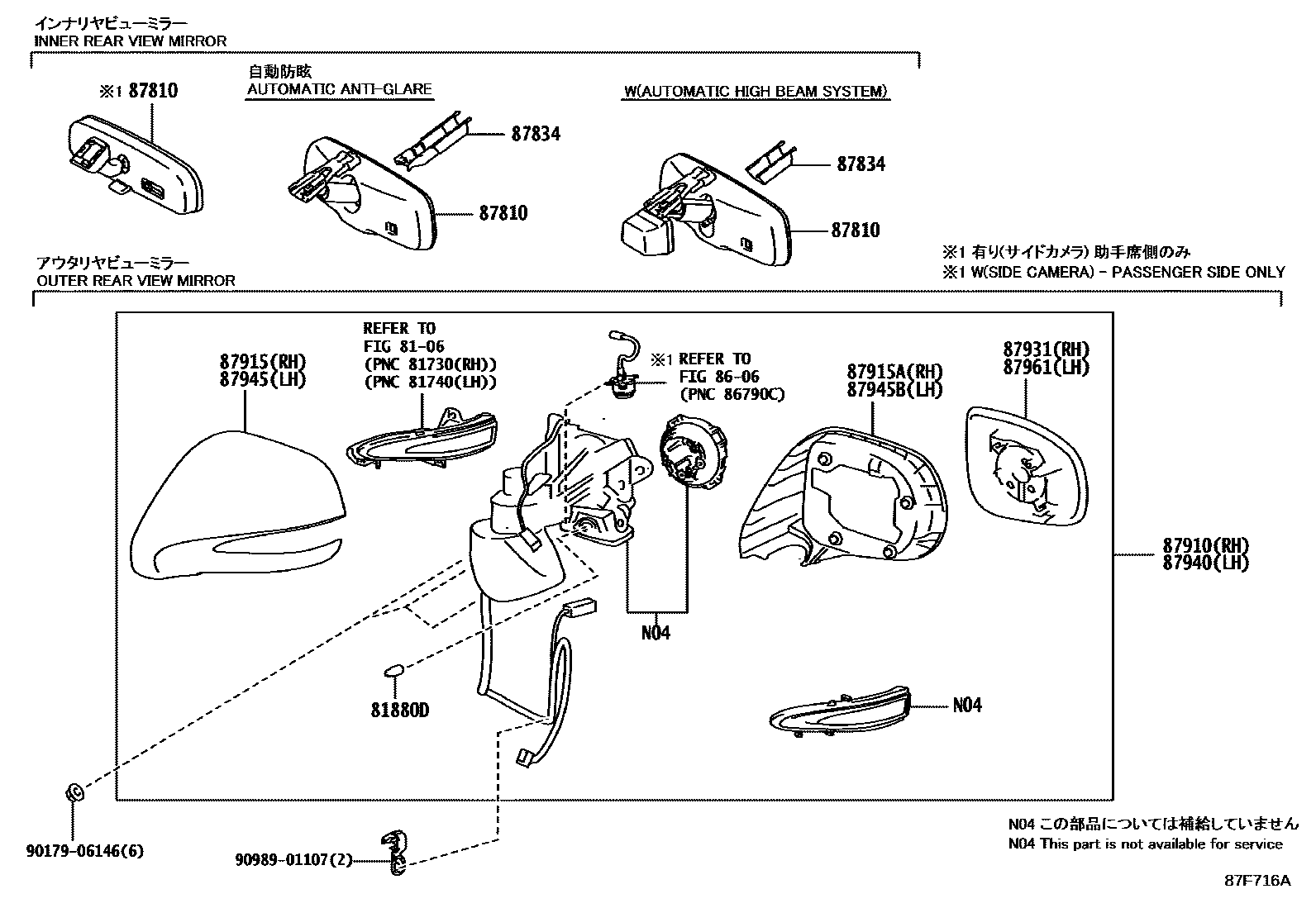

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

81880DBULB, OUTER MIRROR LAMP ASSY

main99132-12050×2i201203-201509

12V 5W

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0E040supersedes 87810-0WC40i200812-201203

INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY)

main87810-0E050i201108-201203

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY

main87810-0E060i201108-201203

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY); HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY)

main87810-0E100i201108-201203

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0W170i201008-201108

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0W190i201008-201108

KOREA SPEC&HEADLAMP-DISCHARGE & SECOND LINE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; KOREA SPEC&HEADLAMP-DISCHARGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0W200i200812-201008

KOREA SPEC&HEADLAMP-DISCHARGE

main87810-0W270i201108-201203

HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & MEMORY; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY

main87810-0W280i201108-201203

HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY); HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY)

main87810-0W690i201108-201203

HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0WB00supersedes 87810-0WC40i201203-201402

INSIDE REAR VIEW MIRROR-W(GARAGE DOOR OPENER & RR CAMERA DISPLAY

main87810-0WB01i201403-201509

INSIDE REAR VIEW MIRROR-W(GARAGE DOOR OPENER & RR CAMERA DISPLAY

main87810-0WC30i201203-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0WC50supersedes 87810-0WC40i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-W(GARAGE DOOR OPENER); OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION&INSIDE REAR VIEW MIRROR-W(GARAGE DOOR OPENER); OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-W(GARAGE DOOR OPENER)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-04010i201108-201203

HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY); HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY); HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & MEMORY; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY); HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM&OUTSIDE REAR VIEW MIRROR-MEMORY&INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY)

main87818-33010i201203

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-48421-A0supersedes 87910-48542-A0i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077

main87910-48421-A1supersedes 87910-48541-A1i200903-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,QUARTZ WHITE CS.,078

main87910-48421-B0supersedes 87910-48541-B0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,DK.GRAY MC.,1G0

main87910-48421-B2supersedes 87910-48541-B2i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SILVER M.M.,1G1

main87910-48421-B3supersedes 87910-48541-B3i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9

main87910-48421-C0supersedes 87910-48542-C0i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212

main87910-48421-C1supersedes 87910-48541-C1i200910-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,BLACK OPAL MC.,214

main87910-48421-C2supersedes 87910-48541-C2i201008-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF.,217

main87910-48421-D0supersedes 87910-48541-D0i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,RED MC.CS.,3R1

main87910-48421-E0supersedes 87910-48541-E0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,BEIGE ME.,4T1

main87910-48421-E1supersedes 87910-48541-E1i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SABLE M.M.,4T5

main87910-48421-E2supersedes 87910-48541-E2i201008-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7

main87910-48421-J0supersedes 87910-48541-J0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,DK.BLUE MC. CC.,8U0

main87910-48421-J1supersedes 87910-48541-J1i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SILVERY BLUE ME.,8U9

main87910-48451-A0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,WHITE PEARL CS.,077

main87910-48451-A1i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,QUARTZ WHITE CS.,078

main87910-48451-B0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,DK.GRAY MC.,1G0

main87910-48451-B2i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,SILVER M.M.,1G1

main87910-48451-B3i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,MERCURY GRAY MC.,1H9

main87910-48451-C0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,BLACK,212

main87910-48451-C1i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BLACK OPAL MC.,214

main87910-48451-C2i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,STARLIGHT BLACK GF.,217

main87910-48451-D0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,RED MC.CS.,3R1

main87910-48451-E0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,BEIGE ME.,4T1

main87910-48451-E1i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,SABLE M.M.,4T5

main87910-48451-E2i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SLEEK ECRU ME.,4U7

main87910-48451-J0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,DK.BLUE MC. CC.,8U0

main87910-48451-J1i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVERY BLUE ME.,8U9

main87910-48610-A0supersedes 87910-48542-A0i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE PEARL CS.,077

main87910-48610-A1supersedes 87910-48542-A1i201203-201308

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,QUARTZ WHITE CS.,078

main87910-48610-B1supersedes 87910-48542-B3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,MERCURY GRAY MC.,1H9

main87910-48610-B2supersedes 87910-48542-B4i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,PLATINUM SILVER ME.,1J4

main87910-48610-C0supersedes 87910-48542-C0i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,BLACK,212

main87910-48610-C1supersedes 87910-48542-C2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,STARLIGHT BLACK GF.,217

main87910-48610-D0supersedes 87910-48542-D1i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,GARNET RED MC.,3S0

main87910-48610-E0supersedes 87910-48542-E2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,SLEEK ECRU ME.,4U7

main87910-48610-E1supersedes 87910-48542-E3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,FIRE AGATE M.M.,4V3

main87910-48610-J0supersedes 87910-48542-J2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,LAPIS LAZULI MC.,8V3

main87910-48620-A0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,WHITE PEARL CS.,077

main87910-48620-A1supersedes 87910-48542-A1i201203-201308

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,QUARTZ WHITE CS.,078

main87910-48620-A2supersedes 87910-48542-A2i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,WHITE NOVA GF.,083; OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE NOVA GF.,083

main87910-48620-B0supersedes 87910-48542-B3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9

main87910-48620-B1i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,PLATINUM SILVER ME.,1J4

main87910-48620-C0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BLACK,212

main87910-48620-C1supersedes 87910-48542-C2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF.,217

main87910-48620-D0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,GARNET RED MC.,3S0

main87910-48620-E0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SLEEK ECRU ME.,4U7

main87910-48620-E1supersedes 87910-48542-E3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,FIRE AGATE M.M.,4V3

main87910-48620-J0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,LAPIS LAZULI MC.,8V3

87915COVER, OUTER MIRROR, RH

main8791A-48421-A0i200812-201203

WHITE PEARL CS.,077

main8791A-48421-A1supersedes 8791A-48421-A2i200903-201203

QUARTZ WHITE CS.,078

main8791A-48421-B0i200812-201108

DK.GRAY MC.,1G0

main8791A-48421-B2i200812-201203

SILVER M.M.,1G1

main8791A-48421-B4i201203-201509

PLATINUM SILVER ME.,1J4

main8791A-48421-C0i200812-201203

BLACK,212

main8791A-48421-C1i200910-201203

BLACK OPAL MC.,214

main8791A-48421-C2i201008-201203

STARLIGHT BLACK GF.,217

main8791A-48421-D0i200812-201203

RED MC.CS.,3R1

main8791A-48421-D1i201203-201509

GARNET RED MC.,3S0

main8791A-48421-E0i200812-201008

BEIGE ME.,4T1

main8791A-48421-E1i200812-201008

SABLE M.M.,4T5

main8791A-48421-E2i201008-201203

SLEEK ECRU ME.,4U7

main8791A-48421-E3i201203-201509

FIRE AGATE M.M.,4V3

main8791A-48421-J0i200812-201008

DK.BLUE MC. CC.,8U0

main8791A-48421-J1i200812-201203

SILVERY BLUE ME.,8U9

main8791A-48421-J2i201203-201509

LAPIS LAZULI MC.,8V3

main8791A-48421-B3i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9; OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,MERCURY GRAY MC.,1H9

87915ACOVER, OUTER MIRROR, RH

main8791B-48421-A0i201203-201509

WHITE PEARL CS.,077

main8791B-48421-A1supersedes 8791B-48421-A2i200903-201203

QUARTZ WHITE CS.,078

main8791B-48421-B0i200812-201108

DK.GRAY MC.,1G0

main8791B-48421-B2i200812-201203

SILVER M.M.,1G1

main8791B-48421-B3i201108-201203

MERCURY GRAY MC.,1H9

main8791B-48421-B4i201203-201509

PLATINUM SILVER ME.,1J4

main8791B-48421-C0i200812-201203

BLACK,212

main8791B-48421-C1i200910-201203

BLACK OPAL MC.,214

main8791B-48421-C2i201008-201203

STARLIGHT BLACK GF.,217

main8791B-48421-D0i200812-201203

RED MC.CS.,3R1

main8791B-48421-D1i201203-201509

GARNET RED MC.,3S0

main8791B-48421-E0i200812-201008

BEIGE ME.,4T1

main8791B-48421-E1i200812-201008

SABLE M.M.,4T5

main8791B-48421-E2i201203-201509

SLEEK ECRU ME.,4U7

main8791B-48421-E3i201203-201509

FIRE AGATE M.M.,4V3

main8791B-48421-J0i200812-201008

DK.BLUE MC. CC.,8U0

main8791B-48421-J1i200812-201203

SILVERY BLUE ME.,8U9

main8791B-48421-J2i201203-201509

LAPIS LAZULI MC.,8V3

87931OUTER MIRROR, RH

main87931-48420i200812-201011

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY; OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA

main87931-48421supersedes 87931-48540i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY

main87931-48590supersedes 87931-48540i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-48401-A0supersedes 87940-48522-A0i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077

main87940-48401-A1supersedes 87940-48521-A1i200903-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,QUARTZ WHITE CS.,078

main87940-48401-B0supersedes 87940-48521-B0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,DK.GRAY MC.,1G0

main87940-48401-B2supersedes 87940-48521-B2i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SILVER M.M.,1G1

main87940-48401-B3supersedes 87940-48521-B3i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9

main87940-48401-C0supersedes 87940-48522-C0i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212

main87940-48401-C1supersedes 87940-48521-C1i200910-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,BLACK OPAL MC.,214

main87940-48401-C2supersedes 87940-48521-C2i201008-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF.,217

main87940-48401-D0supersedes 87940-48521-D0i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,RED MC.CS.,3R1

main87940-48401-E0supersedes 87940-48521-E0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,BEIGE ME.,4T1

main87940-48401-E1supersedes 87940-48521-E1i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SABLE M.M.,4T5

main87940-48401-E2supersedes 87940-48521-E2i201008-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7

main87940-48401-J0supersedes 87940-48521-J0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,DK.BLUE MC. CC.,8U0

main87940-48401-J1supersedes 87940-48521-J1i200812-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY,SILVERY BLUE ME.,8U9

main87940-48421-A0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,WHITE PEARL CS.,077

main87940-48421-A1i200903-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,QUARTZ WHITE CS.,078

main87940-48421-B0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,DK.GRAY MC.,1G0

main87940-48421-B2i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVER M.M.,1G1

main87940-48421-B3i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,MERCURY GRAY MC.,1H9

main87940-48421-C0i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BLACK,212

main87940-48421-C1i200910-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,BLACK OPAL MC.,214

main87940-48421-C2i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,STARLIGHT BLACK GF.,217

main87940-48421-D0i200812-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,RED MC.CS.,3R1

main87940-48421-E0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,BEIGE ME.,4T1

main87940-48421-E1i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,SABLE M.M.,4T5

main87940-48421-E2i201008-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,SLEEK ECRU ME.,4U7

main87940-48421-J0i200812-201008

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA,DK.BLUE MC. CC.,8U0

main87940-48421-J1i201108-201203

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SILVERY BLUE ME.,8U9

main87940-48590-A0supersedes 87940-48522-A0i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,WHITE PEARL CS.,077

main87940-48590-A1supersedes 87940-48522-A1i201203-201308

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,QUARTZ WHITE CS.,078

main87940-48590-B1supersedes 87940-48522-B3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,MERCURY GRAY MC.,1H9

main87940-48590-B2supersedes 87940-48522-B4i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,PLATINUM SILVER ME.,1J4

main87940-48590-C0supersedes 87940-48522-C0i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,BLACK,212

main87940-48590-C1supersedes 87940-48522-C2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,STARLIGHT BLACK GF.,217

main87940-48590-D0supersedes 87940-48522-D1i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,GARNET RED MC.,3S0

main87940-48590-E0supersedes 87940-48522-E2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,SLEEK ECRU ME.,4U7

main87940-48590-E1supersedes 87940-48522-E3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,FIRE AGATE M.M.,4V3

main87940-48590-J0supersedes 87940-48522-J2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION,LAPIS LAZULI MC.,8V3

main87940-48600-A0supersedes 87940-48522-A0i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE PEARL CS.,077

main87940-48600-A1supersedes 87940-48522-A1i201203-201308

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,QUARTZ WHITE CS.,078

main87940-48600-A2supersedes 87940-48522-A2i201308-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,WHITE NOVA GF.,083

main87940-48600-B0supersedes 87940-48522-B3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,MERCURY GRAY MC.,1H9

main87940-48600-B1supersedes 87940-48522-B4i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,PLATINUM SILVER ME.,1J4

main87940-48600-C0supersedes 87940-48522-C0i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,BLACK,212

main87940-48600-C1supersedes 87940-48522-C2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,STARLIGHT BLACK GF.,217

main87940-48600-D0supersedes 87940-48522-D1i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,GARNET RED MC.,3S0

main87940-48600-E0supersedes 87940-48522-E2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,SLEEK ECRU ME.,4U7

main87940-48600-E1supersedes 87940-48522-E3i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,FIRE AGATE M.M.,4V3

main87940-48600-J0supersedes 87940-48522-J2i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY,LAPIS LAZULI MC.,8V3

main87940-48610-A0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,WHITE PEARL CS.,077

main87940-48610-A1supersedes 87940-48522-A2i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,WHITE NOVA GF.,083

main87940-48610-B0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,MERCURY GRAY MC.,1H9

main87940-48610-B1i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,PLATINUM SILVER ME.,1J4

main87940-48610-C0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,BLACK,212

main87940-48610-C1i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,STARLIGHT BLACK GF.,217

main87940-48610-D0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,GARNET RED MC.,3S0

main87940-48610-E0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,SLEEK ECRU ME.,4U7

main87940-48610-E1i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,FIRE AGATE M.M.,4V3

main87940-48610-J0i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE,LAPIS LAZULI MC.,8V3

87945COVER, OUTER MIRROR, LH

main8794A-48401-A0i201203-201509

WHITE PEARL CS.,077

main8794A-48401-A1supersedes 8794A-48401-A2i201203-201308

QUARTZ WHITE CS.,078

main8794A-48401-B0i200812-201108

DK.GRAY MC.,1G0

main8794A-48401-B2i200812-201203

SILVER M.M.,1G1

main8794A-48401-B3i201203-201509

MERCURY GRAY MC.,1H9

main8794A-48401-B4i201203-201509

PLATINUM SILVER ME.,1J4

main8794A-48401-C0i200812-201203

BLACK,212

main8794A-48401-C1i200910-201203

BLACK OPAL MC.,214

main8794A-48401-C2i201203-201509

STARLIGHT BLACK GF.,217

main8794A-48401-D0i200812-201203

RED MC.CS.,3R1

main8794A-48401-D1i201203-201509

GARNET RED MC.,3S0

main8794A-48401-E0i200812-201008

BEIGE ME.,4T1

main8794A-48401-E1i200812-201008

SABLE M.M.,4T5

main8794A-48401-E2i201203-201509

SLEEK ECRU ME.,4U7

main8794A-48401-E3i201203-201509

FIRE AGATE M.M.,4V3

main8794A-48401-J0i200812-201008

DK.BLUE MC. CC.,8U0

main8794A-48401-J1i200812-201203

SILVERY BLUE ME.,8U9

main8794A-48401-J2i201203-201509

LAPIS LAZULI MC.,8V3

87945BCOVER, OUTER MIRROR, LH

main8794B-48401-A0i201203-201509

WHITE PEARL CS.,077

main8794B-48401-A1supersedes 8794B-48401-A2i201203-201308

QUARTZ WHITE CS.,078

main8794B-48401-B0i200812-201108

DK.GRAY MC.,1G0

main8794B-48401-B2supersedes 8794B-48401-B4i200812-201203

SILVER M.M.,1G1

main8794B-48401-B3i201203-201509

MERCURY GRAY MC.,1H9

main8794B-48401-C0i201203-201509

BLACK,212

main8794B-48401-C1i200910-201203

BLACK OPAL MC.,214

main8794B-48401-C2i201203-201509

STARLIGHT BLACK GF.,217

main8794B-48401-D0i200812-201203

RED MC.CS.,3R1

main8794B-48401-D1i201203-201509

GARNET RED MC.,3S0

main8794B-48401-E0i200812-201008

BEIGE ME.,4T1

main8794B-48401-E1i200812-201008

SABLE M.M.,4T5

main8794B-48401-E2i201203-201509

SLEEK ECRU ME.,4U7

main8794B-48401-E3i201203-201509

FIRE AGATE M.M.,4V3

main8794B-48401-J0i200812-201008

DK.BLUE MC. CC.,8U0

main8794B-48401-J1i200812-201203

SILVERY BLUE ME.,8U9

main8794B-48401-J2i201203-201509

LAPIS LAZULI MC.,8V3

87961MIRROR OUTER, LH

main87961-48400i200812-201011

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & MEMORY; OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA

main87961-48401i201011-201108

OUTSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & W/SIDE CAMERA

main87961-48590i201308-201509

KOREA SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & AUTOMATIC ANTI-GLARE & MEMORY&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87961-48610supersedes 87961-48520i201203-201509

OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & BLIND SPOT DETECTION

9017906146

main90179-06146

9098901107

main90989-01107

15 parts on this diagram · 1 diagram in section
