HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-48010-A0i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,WHITEPEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARLCS.,077; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,WHITE PEARL CS.,077

main85044-48010-A1i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,QUARTZWHITE C.S.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITE C.S.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITE C.S.,078; CANADA SPEC,QUARTZ WHITE C.S.,078; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,QUARTZ WHITE C.S.,078; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,QUARTZ WHITE C.S.,078; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITE C.S.,078; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITE C.S.,078; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,QUARTZ WHITEC.S.,078

main85044-48010-B0i200812-201108

CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0; CANADA SPEC,DK.GRAY MC.,1G0; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,DK.GRAY MC.,1G0; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,DK.GRAY MC.,1G0; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0

main85044-48010-B2i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVERM.M.,1G1; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,SILVER M.M.,1G1; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SILVER M.M.,1G1; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVER M.M.,1G1

main85044-48010-B3i201108-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9; CANADA SPEC,MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9; PREMIUM PACKAGE&HEADLAMP-LED & AFS,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,MERCURY GRAYMC.,1H9

main85044-48010-C0i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK,212; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK,212; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK,212; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK,212; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,BLACK,212; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK,212

main85044-48010-C1i200910-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACKOPAL MC.,214; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS,BLACK OPAL MC.,214; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,BLACK OPAL MC.,214; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK OPAL MC.,214; CANADA SPEC,BLACK OPAL MC.,214; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK OPAL MC.,214; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK OPAL MC.,214; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK OPAL MC.,214; PREMIUM PACKAGE&HEADLAMP-LED & AFS,BLACK OPAL MC.,214; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,BLACK OPALMC.,214; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BLACK OPAL MC.,214

main85044-48010-C2i201008-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,STARLIGHT BLACK GF.,217; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,STARLIGHT BLACK GF.,217; CANADA SPEC,STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,STARLIGHT BLACK GF.,217; PREMIUM PACKAGE&HEADLAMP-LED & AFS,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,STARLIGHT BLACK GF.,217

main85044-48010-D0i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,RED MC.CS.,3R1; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,RED MC.CS.,3R1; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,RED MC.CS.,3R1

main85044-48010-E0i200903-201008

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BEIGEME.,4T1; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,BEIGE ME.,4T1; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,BEIGE ME.,4T1; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,BEIGE ME.,4T1

main85044-48010-E1i200903-201008

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SABLEM.M.,4T5; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SABLE M.M.,4T5; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SABLE M.M.,4T5; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,SABLE M.M.,4T5; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SABLE M.M.,4T5; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SABLE M.M.,4T5; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SABLE M.M.,4T5; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SABLE M.M.,4T5

main85044-48010-E2i201008-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SLEEKECRU ME.,4U7; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRU ME.,4U7; CANADA SPEC,SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRU ME.,4U7; PREMIUM PACKAGE&HEADLAMP-LED & AFS,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRUME.,4U7; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SLEEK ECRU ME.,4U7

main85044-48010-J0i200903-201008

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,DK.BLUE MC. CC.,8U0; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,DK.BLUE MC. CC.,8U0; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC.CC.,8U0; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.BLUE MC. CC.,8U0

main85044-48010-J1i200812-201203

CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9; CANADA SPEC,SILVERY BLUE ME.,8U9; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,SILVERY BLUE ME.,8U9; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SILVERY BLUE ME.,8U9; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9

main85044-48020-A0i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE,WHITE PEARL CS.,077; CANADA SPEC,WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE,WHITE PEARL CS.,077; PREMIUM PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE,WHITE PEARL CS.,077

main85044-48020-A1i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,QUARTZ WHITE CS.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,QUARTZ WHITE CS.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE,QUARTZ WHITE CS.,078; CANADA SPEC,QUARTZ WHITE CS.,078; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; KOREA SPEC&PREMIUM PACKAGE,QUARTZ WHITE CS.,078; PREMIUM PACKAGE&HEADLAMP-LED,QUARTZ WHITE CS.,078; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,QUARTZ WHITE CS.,078; ULTRAPREMIUM PACKAGE,QUARTZ WHITE CS.,078

main85044-48020-B1i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE,MERCURY GRAY MC.,1H9; CANADA SPEC,MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE,MERCURY GRAY MC.,1H9; PREMIUM PACKAGE&HEADLAMP-LED,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE,MERCURY GRAY MC.,1H9

main85044-48020-B2i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; CANADA SPEC&ULTRAPREMIUM PACKAGE,PLATINUM SILVER ME.,1J4; CANADA SPEC,PLATINUM SILVER ME.,1J4; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; KOREA SPEC&PREMIUM PACKAGE,PLATINUM SILVER ME.,1J4; PREMIUM PACKAGE&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; ULTRAPREMIUM PACKAGE,PLATINUM SILVER ME.,1J4

main85044-48020-C0i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE,BLACK,212; CANADA SPEC,BLACK,212; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK,212; KOREA SPEC&PREMIUM PACKAGE,BLACK,212; PREMIUM PACKAGE&HEADLAMP-LED,BLACK,212; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,BLACK,212; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,BLACK,212; ULTRAPREMIUM PACKAGE,BLACK,212

main85044-48020-C1i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE,STARLIGHT BLACK GF.,217; CANADA SPEC,STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE,STARLIGHT BLACK GF.,217; PREMIUM PACKAGE&HEADLAMP-LED,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE,STARLIGHT BLACK GF.,217

main85044-48020-D0i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,GARNET RED MC.,3S0; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,GARNET RED MC.,3S0; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,GARNET RED MC.,3S0; CANADA SPEC&ULTRAPREMIUM PACKAGE,GARNET RED MC.,3S0; CANADA SPEC,GARNET RED MC.,3S0; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,GARNET RED MC.,3S0; KOREA SPEC&PREMIUM PACKAGE,GARNET RED MC.,3S0; PREMIUM PACKAGE&HEADLAMP-LED,GARNET RED MC.,3S0; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,GARNET RED MC.,3S0; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,GARNET RED MC.,3S0; ULTRAPREMIUM PACKAGE,GARNET RED MC.,3S0

main85044-48020-E0i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE,SLEEK ECRU ME.,4U7; CANADA SPEC,SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE,SLEEK ECRU ME.,4U7; PREMIUM PACKAGE&HEADLAMP-LED,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE,SLEEK ECRU ME.,4U7

main85044-48020-E1i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,FIRE AGATE M.M.,4V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,FIRE AGATE M.M.,4V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,FIRE AGATE M.M.,4V3; CANADA SPEC&ULTRAPREMIUM PACKAGE,FIRE AGATE M.M.,4V3; CANADA SPEC,FIRE AGATE M.M.,4V3; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,FIRE AGATE M.M.,4V3; KOREA SPEC&PREMIUM PACKAGE,FIRE AGATE M.M.,4V3; PREMIUM PACKAGE&HEADLAMP-LED,FIRE AGATE M.M.,4V3; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,FIRE AGATE M.M.,4V3; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,FIRE AGATE M.M.,4V3; ULTRAPREMIUM PACKAGE,FIRE AGATE M.M.,4V3

main85044-48020-J0i201203-201308

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; CANADA SPEC&ULTRAPREMIUM PACKAGE,LAPIS LAZULI MC.,8V3; CANADA SPEC,LAPIS LAZULI MC.,8V3; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; KOREA SPEC&PREMIUM PACKAGE,LAPIS LAZULI MC.,8V3; PREMIUM PACKAGE&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; ULTRAPREMIUM PACKAGE&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; ULTRAPREMIUM PACKAGE,LAPIS LAZULI MC.,8V3

main85044-48030-A0i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),WHITE PEARL CS.,077; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE PEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,WHITE PEARLCS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE PEARL CS.,077; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; KOREA SPEC&PREMIUM PACKAGE&F SPORT,WHITE PEARL CS.,077; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE PEARL CS.,077; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),WHITE PEARL CS.,077; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,WHITE PEARL CS.,077

main85044-48030-A1i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),QUARTZ WHITE CS.,078; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,QUARTZ WHITE CS.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,QUARTZ WHITE CS.,078; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),QUARTZ WHITE CS.,078; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),QUARTZ WHITE CS.,078; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; KOREA SPEC&PREMIUM PACKAGE&F SPORT,QUARTZ WHITE CS.,078; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,QUARTZ WHITE CS.,078; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,QUARTZ WHITE CS.,078; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,QUARTZ WHITE CS.,078; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),QUARTZ WHITE CS.,078; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,QUARTZ WHITE CS.,078

main85044-48030-B1i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),MERCURY GRAY MC.,1H9; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,MERCURY GRAY MC.,1H9; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; KOREA SPEC&PREMIUM PACKAGE&F SPORT,MERCURY GRAY MC.,1H9; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,MERCURY GRAY MC.,1H9; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),MERCURY GRAY MC.,1H9; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,MERCURY GRAY MC.,1H9

main85044-48030-B2i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),PLATINUM SILVER ME.,1J4; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),PLATINUM SILVER ME.,1J4; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),PLATINUM SILVER ME.,1J4; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; KOREA SPEC&PREMIUM PACKAGE&F SPORT,PLATINUM SILVER ME.,1J4; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,PLATINUM SILVER ME.,1J4; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,PLATINUM SILVER ME.,1J4; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),PLATINUM SILVER ME.,1J4; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,PLATINUM SILVER ME.,1J4

main85044-48030-C0i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),BLACK,212; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,BLACK,212; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),BLACK,212; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,BLACK,212; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),BLACK,212; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,BLACK,212; KOREA SPEC&PREMIUM PACKAGE&F SPORT,BLACK,212; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,BLACK,212; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,BLACK,212; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,BLACK,212; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),BLACK,212; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,BLACK,212

main85044-48030-C1i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),STARLIGHT BLACK GF.,217; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,STARLIGHT BLACK GF.,217; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; KOREA SPEC&PREMIUM PACKAGE&F SPORT,STARLIGHT BLACK GF.,217; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,STARLIGHT BLACK GF.,217; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),STARLIGHT BLACK GF.,217; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,STARLIGHT BLACK GF.,217

main85044-48030-D0i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),GARNET RED MC.,3S0; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,GARNET RED MC.,3S0; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,GARNET REDMC.,3S0; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,GARNET RED MC.,3S0; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),GARNET RED MC.,3S0; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,GARNET RED MC.,3S0; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),GARNET RED MC.,3S0; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,GARNET RED MC.,3S0; KOREA SPEC&PREMIUM PACKAGE&F SPORT,GARNET RED MC.,3S0; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,GARNET RED MC.,3S0; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,GARNET RED MC.,3S0; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,GARNET RED MC.,3S0; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),GARNET RED MC.,3S0; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,GARNET RED MC.,3S0

main85044-48030-E0i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),SLEEK ECRU ME.,4U7; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,SLEEK ECRUME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,SLEEK ECRU ME.,4U7; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; KOREA SPEC&PREMIUM PACKAGE&F SPORT,SLEEK ECRU ME.,4U7; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,SLEEK ECRU ME.,4U7; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),SLEEK ECRU ME.,4U7; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,SLEEK ECRU ME.,4U7

main85044-48030-E1i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,FIRE AGATE M.M.,4V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,FIRE AGATEM.M.,4V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,FIRE AGATE M.M.,4V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,FIRE AGATE M.M.,4V3; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,FIRE AGATE M.M.,4V3; KOREA SPEC&PREMIUM PACKAGE&F SPORT,FIRE AGATE M.M.,4V3; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,FIRE AGATE M.M.,4V3; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,FIRE AGATE M.M.,4V3; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,FIRE AGATE M.M.,4V3; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),FIRE AGATE M.M.,4V3; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,FIRE AGATE M.M.,4V3

main85044-48030-J0i201203-201308

CANADA SPEC&AERO BUMPER(FRONT),LAPIS LAZULI MC.,8V3; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),LAPIS LAZULI MC.,8V3; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),LAPIS LAZULI MC.,8V3; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; KOREA SPEC&PREMIUM PACKAGE&F SPORT,LAPIS LAZULI MC.,8V3; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,LAPIS LAZULI MC.,8V3; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,LAPIS LAZULI MC.,8V3; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),LAPIS LAZULI MC.,8V3; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,LAPIS LAZULI MC.,8V3

main85353-48010-A0i201308-201509

main85353-48010-B0i201308-201509

main85353-48010-B1i201308-201509

main85353-48010-C0i201308-201509

main85353-48010-C1i201308-201509

main85353-48010-D0i201308-201509

main85353-48010-E0i201308-201509

main85353-48010-E1i201308-201509

main85353-48010-J0i201308-201509

main85353-48020-A0i201308-201509

main85353-48020-A1i201308-201509

CANADA SPEC&AERO BUMPER(FRONT),WHITE NOVA GF.,083; CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE NOVA GF.,083; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,WHITE NOVAGF.,083; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE NOVA GF.,083; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),WHITE NOVA GF.,083; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,WHITE NOVA GF.,083; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT),WHITE NOVA GF.,083; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE,WHITE NOVA GF.,083; KOREA SPEC&PREMIUM PACKAGE&F SPORT,WHITE NOVA GF.,083; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE NOVA GF.,083; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE,WHITE NOVA GF.,083; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED,WHITE NOVA GF.,083; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT),WHITE NOVA GF.,083; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED,WHITE NOVA GF.,083

main85353-48020-B0i201308-201509

main85353-48020-B1i201308-201509

main85353-48020-C0i201308-201509

main85353-48020-C1i201308-201509

main85353-48020-D0i201308-201509

main85353-48020-E0i201308-201509

main85353-48020-E1i201308-201509

main85353-48020-J0i201308-201509

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-48010-A0i200908-201008

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS,WHITE PEARL CS.,077

main85045-48010-A1i200903-201203

main85045-48010-B0i200903-201108

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,DK.GRAY MC.,1G0; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,DK.GRAY MC.,1G0; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,DK.GRAY MC.,1G0

main85045-48010-B2i200903-201203

main85045-48010-B3i201108-201203

main85045-48010-C0i200903-201203

main85045-48010-C1i200910-201203

main85045-48010-C2i201008-201203

main85045-48010-D0i200903-201203

main85045-48010-E0i200903-201008

main85045-48010-E1i200903-201008

main85045-48010-E2i201008-201203

main85045-48010-J0i200903-201008

main85045-48010-J1i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE,SILVERY BLUE ME.,8U9; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE,SILVERY BLUE ME.,8U9; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUE ME.,8U9; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM,SILVERY BLUEME.,8U9

main85045-48020-A0i201203-201308

main85045-48020-A1i201203-201308

main85045-48020-B1i201203-201308

main85045-48020-B2i201203-201308

main85045-48020-C0i201203-201308

main85045-48020-C1i201203-201308

main85045-48020-D0i201203-201308

main85045-48020-E0i201203-201308

main85045-48020-E1i201203-201308

main85045-48020-J0i201203-201308

main85045-48030-A0i201203-201308

main85045-48030-A1i201203-201308

main85045-48030-B1i201203-201308

main85045-48030-B2i201203-201308

main85045-48030-C0i201203-201308

main85045-48030-C1i201203-201308

main85045-48030-D0i201203-201308

main85045-48030-E0i201203-201308

main85045-48030-E1i201203-201308

main85045-48030-J0i201203-201308

main85354-48010-A0i201308-201509

main85354-48010-B0i201308-201509

main85354-48010-B1i201308-201509

main85354-48010-C0i201308-201509

main85354-48010-C1i201308-201509

main85354-48010-D0i201308-201509

main85354-48010-E0i201308-201509

main85354-48010-E1i201308-201509

main85354-48010-J0i201308-201509

main85354-48020-A0i201308-201509

main85354-48020-A1i201308-201509

main85354-48020-B0i201308-201509

main85354-48020-B1i201308-201509

main85354-48020-C0i201308-201509

main85354-48020-C1i201308-201509

main85354-48020-D0i201308-201509

main85354-48020-E0i201308-201509

main85354-48020-E1i201308-201509

main85354-48020-J0i201308-201509

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-48040i200812-201203

CANADA SPEC; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

main85207-48050i200903-201008

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM

main85207-48060i201203-201308

CANADA SPEC; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; CANADA SPEC&ULTRAPREMIUM PACKAGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; KOREA SPEC&PREMIUM PACKAGE; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; PREMIUM PACKAGE&HEADLAMP-LED; ULTRAPREMIUM PACKAGE; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; ULTRAPREMIUM PACKAGE&HEADLAMP-LED

main85207-48070i201203-201308

CANADA SPEC&AERO BUMPER(FRONT); CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; KOREA SPEC&PREMIUM PACKAGE&F SPORT; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

main85207-48080i201308-201509

main85207-48090i201308-201509

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-48040i200812-201203

main85208-48050i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM

main85208-48060i201203-201308

main85208-48070i201203-201308

main85208-48080i201308-201509

main85208-48090i201308-201509

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15051i200903-201203

L=140,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAMSYSTEM; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; L=140,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=140,KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=140,PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; L=140,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; L=140,ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM

main90075-15058i201203-201308

L=140,CANADA SPEC; L=140,CANADA SPEC&AERO BUMPER(FRONT); L=140,CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=140,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=140,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=140,KOREA SPEC&PREMIUM PACKAGE; L=140,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); L=140,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=140,KOREA SPEC&PREMIUM PACKAGE&F SPORT; L=140,KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; L=140,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=140,PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=140,PREMIUM PACKAGE&HEADLAMP-LED; L=140,ULTRAPREMIUM PACKAGE; L=140,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=140,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=140,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=140,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=140,ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=140,USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

main90075-15094i201308

L=180,CANADA SPEC; L=180,CANADA SPEC&AERO BUMPER(FRONT); L=180,CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=180,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; L=180,CANADA SPEC&ULTRAPREMIUM PACKAGE; L=180,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=180,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=180,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=180,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=180,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=180,KOREA SPEC&PREMIUM PACKAGE; L=180,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); L=180,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=180,KOREA SPEC&PREMIUM PACKAGE&F SPORT; L=180,KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; L=180,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=180,PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=180,PREMIUM PACKAGE&HEADLAMP-LED; L=180,ULTRAPREMIUM PACKAGE; L=180,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=180,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=180,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=180,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=180,ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=180,USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15050i200812-201008

L=960,CANADA SPEC; L=960,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAMSYSTEM

main90075-15061i201203

L=1400,CANADA SPEC; L=1400,CANADA SPEC&AERO BUMPER(FRONT); L=1400,CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=1400,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; L=1400,CANADA SPEC&ULTRAPREMIUM PACKAGE; L=1400,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=1400,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=1400,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=1400,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=1400,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=1400,KOREA SPEC&PREMIUM PACKAGE; L=1400,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); L=1400,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=1400,KOREA SPEC&PREMIUM PACKAGE&F SPORT; L=1400,KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; L=1400,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=1400,PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=1400,PREMIUM PACKAGE&HEADLAMP-LED; L=1400,ULTRAPREMIUM PACKAGE; L=1400,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=1400,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=1400,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=1400,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=1400,ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=1400,USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-12510×2i200812-201008

CANADA SPEC; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

main90075-15053i201203-201308

L=35,CANADA SPEC; L=35,CANADA SPEC&AERO BUMPER(FRONT); L=35,CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=35,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; L=35,CANADA SPEC&ULTRAPREMIUM PACKAGE; L=35,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=35,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=35,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=35,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=35,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=35,KOREA SPEC&PREMIUM PACKAGE; L=35,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); L=35,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=35,KOREA SPEC&PREMIUM PACKAGE&F SPORT; L=35,KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; L=35,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=35,PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=35,PREMIUM PACKAGE&HEADLAMP-LED; L=35,ULTRAPREMIUM PACKAGE; L=35,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=35,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=35,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=35,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=35,ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=35,USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

main90075-15059i201308

L=80,CANADA SPEC; L=80,CANADA SPEC&AERO BUMPER(FRONT); L=80,CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=80,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; L=80,CANADA SPEC&ULTRAPREMIUM PACKAGE; L=80,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=80,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=80,CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=80,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=80,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=80,KOREA SPEC&PREMIUM PACKAGE; L=80,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); L=80,KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=80,KOREA SPEC&PREMIUM PACKAGE&F SPORT; L=80,KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; L=80,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=80,PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=80,PREMIUM PACKAGE&HEADLAMP-LED; L=80,ULTRAPREMIUM PACKAGE; L=80,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); L=80,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; L=80,ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; L=80,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=80,ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=80,USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-28030×2i201203-201308

CANADA SPEC; CANADA SPEC&AERO BUMPER(FRONT); CANADA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; CANADA SPEC&ULTRAPREMIUM PACKAGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; KOREA SPEC&PREMIUM PACKAGE; KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT); KOREA SPEC&PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; KOREA SPEC&PREMIUM PACKAGE&F SPORT; KOREA SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-DISCHARGE; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; PREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; PREMIUM PACKAGE&HEADLAMP-LED; ULTRAPREMIUM PACKAGE; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT); ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-DISCHARGE; ULTRAPREMIUM PACKAGE&AERO BUMPER(FRONT)&HEADLAMP-LED; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; ULTRAPREMIUM PACKAGE&HEADLAMP-LED; USA DEPENDANCY SPEC&PREMIUM PACKAGE&F SPORT&HEADLAMP-LED

main85272-75050×2i201308

main85273-20020×8i200908-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS; PREMIUM PACKAGE&HEADLAMP-LED & AFS

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-30040i201203-201509

CANADA SPEC; CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; PREMIUM PACKAGE&HEADLAMP-LED; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; ULTRAPREMIUM PACKAGE&HEADLAMP-LED

85336BPACKING, HEADLAMP CLEANER WASHER

main90099-32089i200908-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS; PREMIUM PACKAGE&HEADLAMP-LED & AFS

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-33050i200903-201203

CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM

main85357-42070i201203

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85279-33040i200903-201203

main90075-17001i201203-201308

main90075-17005i201308

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85279-33040×2i200812-201008

CANADA SPEC; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

main90075-17005×2i201203-201308

main90075-17009×2i201308

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main85379-22080i200812-201008

CANADA SPEC; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85278-20590i200812-201008

CANADA SPEC; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

main85279-42010i201203

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main85287-53060i200812-201008

CANADA SPEC; CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM

main90075-17003i201203-201308

main90075-17010i201308

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85375-16020i200903-201203

L=40,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; L=40,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; L=40,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; L=40,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=40,KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=40,PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM; L=40,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM; L=40,ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM

main90075-15040i201203

85371CHOSE, HEADLAMP CLEANER, NO.1

main85375-89133i200903-201203

main85376-14301i201203

L=75,CANADA SPEC; L=75,CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED; L=75,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=75,CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED; L=75,KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=75,PREMIUM PACKAGE&HEADLAMP-LED; L=75,ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE; L=75,ULTRAPREMIUM PACKAGE&HEADLAMP-LED

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527653060RELAY, CLEANER CONTROL

main85276-53060

91641C0614

main91641-C0614

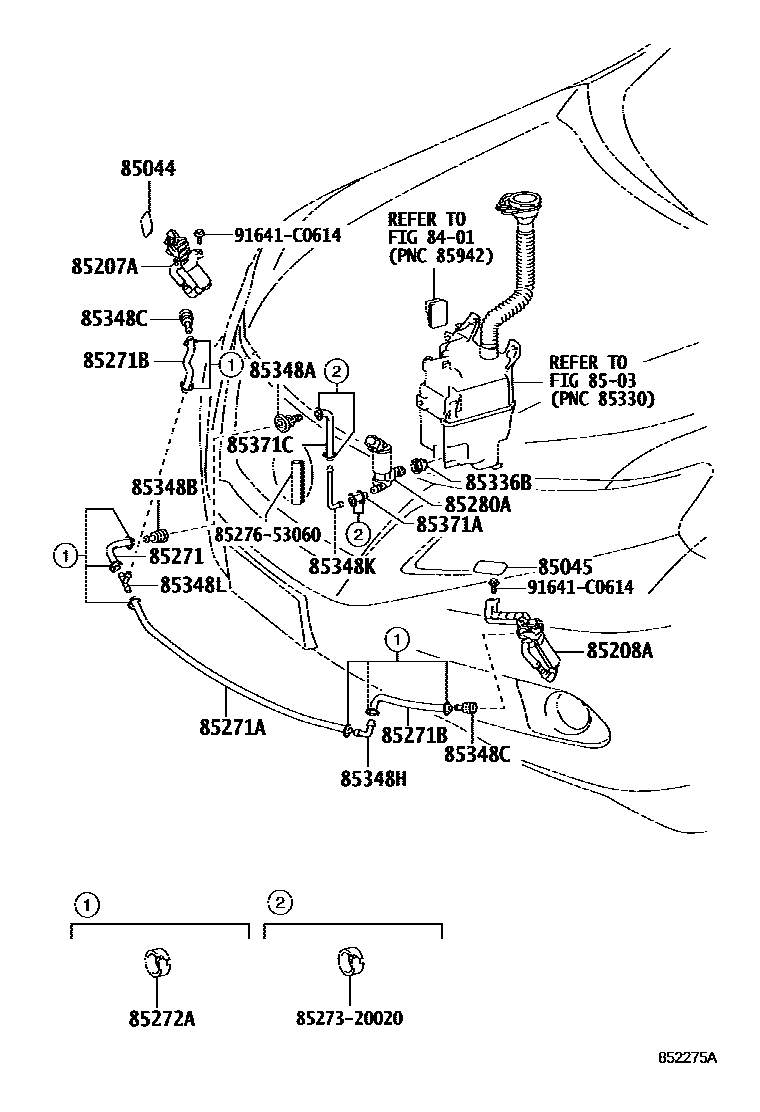

23 parts on this diagram · 3 diagrams in section
