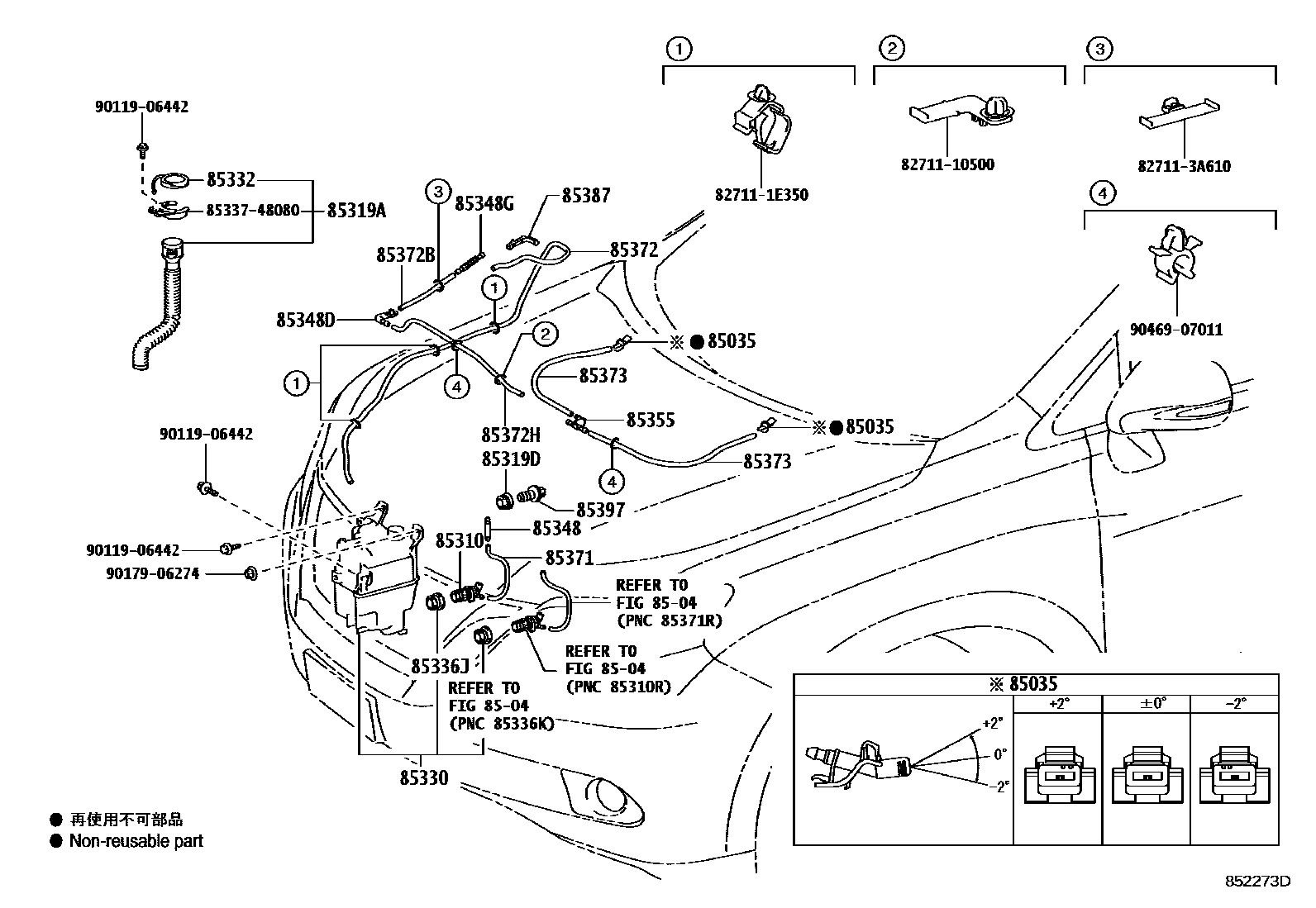

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED
CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED
ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
ULTRAPREMIUM PACKAGE&HEADLAMP-LED
PREMIUM PACKAGE&HEADLAMP-LED
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC
KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC
ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
ULTRAPREMIUM PACKAGE&HEADLAMP-LED
PREMIUM PACKAGE&HEADLAMP-LED
KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED
CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED
ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=280),ULTRAPREMIUM PACKAGE&HEADLAMP-LED
L=1450(*H,L=280),PREMIUM PACKAGE&HEADLAMP-LED
L=1450(*H,L=280)
L=1450(*H,L=280),KOREA SPEC&PREMIUM PACKAGE&HEADLAMP-DISCHARGE
L=1450(*H,L=280),CANADA SPEC
L=1450(*H,L=280),CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
L=1450(*H,L=280),CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED
L=1450(*H,L=280),CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED
L=1450(*H,L=280),ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
L=1450(*H,L=280),KOREA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE
L=1450(*H,L=280),CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATICHIGH BEAM SYSTEM
L=1450(*H,L=280),CANADA SPEC&ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM
L=1450(*H,L=280),CANADA SPEC&PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM
L=1450(*H,L=280),ULTRAPREMIUM PACKAGE&HEADLAMP-DISCHARGE&AFS&AUTOMATIC HIGH BEAM SYSTEM
L=1450(*H,L=280),ULTRAPREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM
L=1450(*H,L=280),PREMIUM PACKAGE&HEADLAMP-LED & AFS & AUTOMATIC HIGH BEAM SYSTEM
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1340)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=200)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=700)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=560)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
827113A610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A610
8533748080CASE, LEVEL WARNING SWITCH
main85337-48080
9011906442
main90119-06442
9017906274
main90179-06274
9046907011
main90469-07011
26 parts on this diagram · 6 diagrams in section
