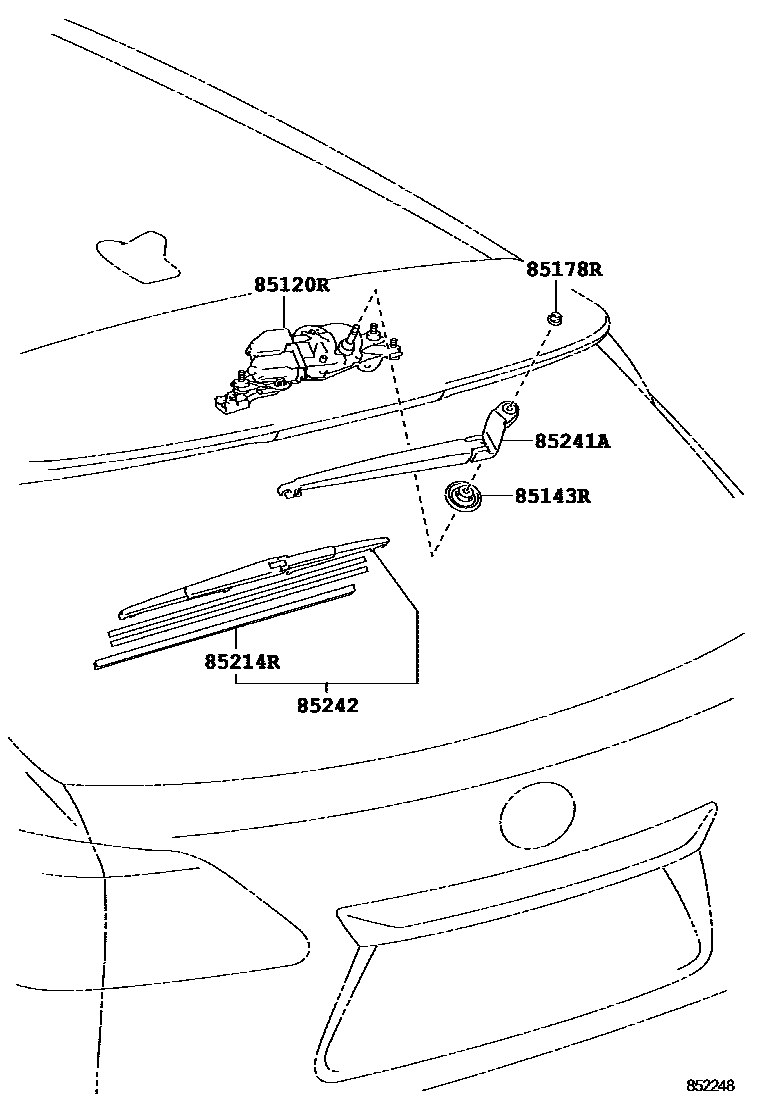

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-48070iGGL1#,GYL1#..JPP200812-201203

85143RGROMMET, REAR WIPER MOTOR

main85143-48040iGGL1#,GYL1#..JPP200812-201203

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06205iGGL1#,GYL1#..JPP200812-201203

85214RRUBBER, REAR WIPER

main85214-10100iGGL1#,GYL1#..JPP200812-201203

85241AARM, REAR WIPER

main85241-48060iGGL1#,GYL1#..JPP200812-201203

85242BLADE, RR WIPER

main85242-48040iGGL1#,GYL1#..JPP200812-201203

6 parts on this diagram · 1 diagram in section
