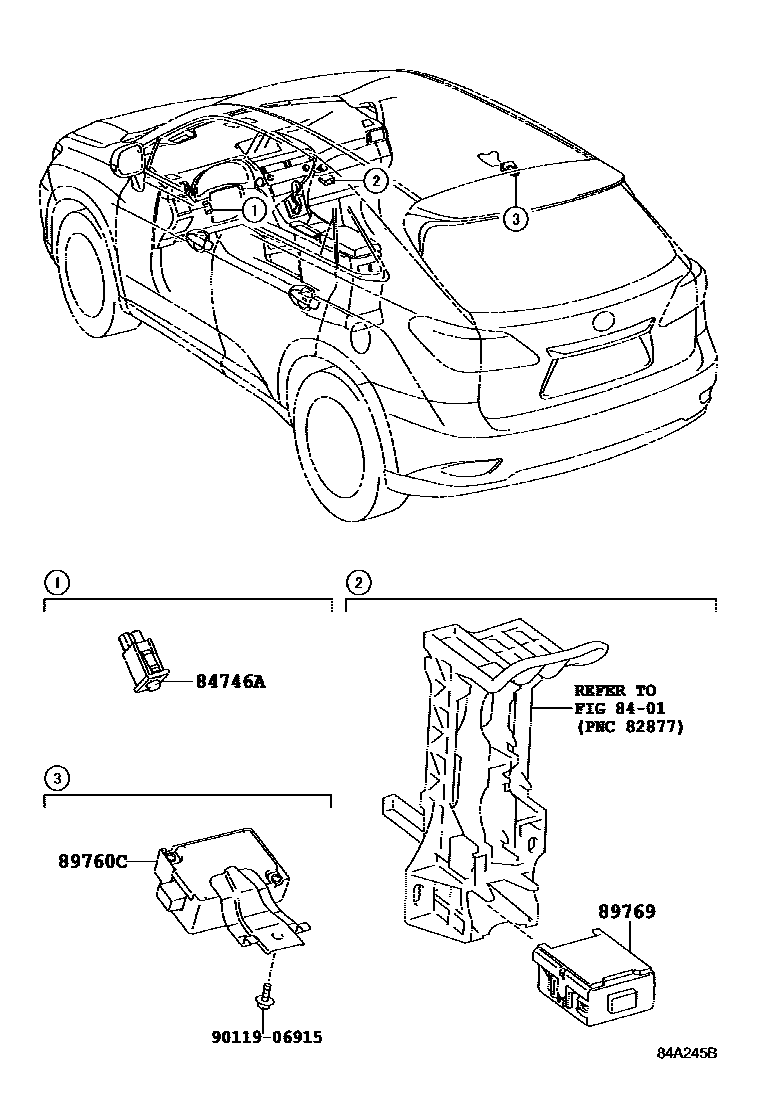

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-48010iGGL1#,GYL1#..JPP201203-201509

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-0E021iGGL1#,GYL1#..JPP201209

(L)

main89760-48040iGGL1#,GYL1#..JPP; GGL15,GYL15..JPP200812-201107

KOREA SPEC

main89760-48041iGGL1#,GYL1#..JPP; GGL15,GYL15..JPP201108-201203

KOREA SPEC

main89760-48050iGGL15..JPP201308

KOREA SPEC,(L)

main89760-48060iGGL15..JPP201308

KOREA SPEC&SPARE TIRE-GROUND TIRE,(L)

main89760-48090iGYL15..JPP201308

KOREA SPEC,(L)

main89760-48100iGYL15..JPP201308

KOREA SPEC&SPARE TIRE-GROUND TIRE,(L)

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-48090iGGL1#..JPP; GGL15..JPP200812-201203

KOREA SPEC

main89769-48100iGGL10..JPP200812-200909

MEXICO SPEC; USA DEPENDANCY SPEC

main89769-48110iGYL1#..JPP; GYL15..JPP200903-201203

KOREA SPEC

main89769-48120iGYL10..JPP200903-200909

USA DEPENDANCY SPEC

9011906915

main90119-06915

5 parts on this diagram · 2 diagrams in section
