AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
MARK=ZZ
MARK=3R
P/N LABEL=8917048340
P/N LABEL=8917048341
P/N LABEL=8917048410
P/N LABEL=8917048411
KOREA SPEC
KOREA SPEC
KOREA SPEC
KOREA SPEC
KOREA SPEC
KOREA SPEC
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89833SENSOR, AIRBAG, REAR RH
(L)
89834SENSOR, AIRBAG, REAR LH
(L)
89835SENSOR, DOOR SIDE AIRBAG, LH
(L)
KOREA SPEC&PREMIUM PACKAGE; KOREA SPEC&ULTRAPREMIUM PACKAGE
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
(L)
KOREA SPEC&PREMIUM PACKAGE; KOREA SPEC&ULTRAPREMIUM PACKAGE
89952COMPUTER, OCCUPANT DETECTION
KOREA SPEC
9011908C89
main90119-08C89
9014860038
main90148-60038
9155380620
main91553-80620
91553A0625
main91553-A0625
9415180600
main94151-80600

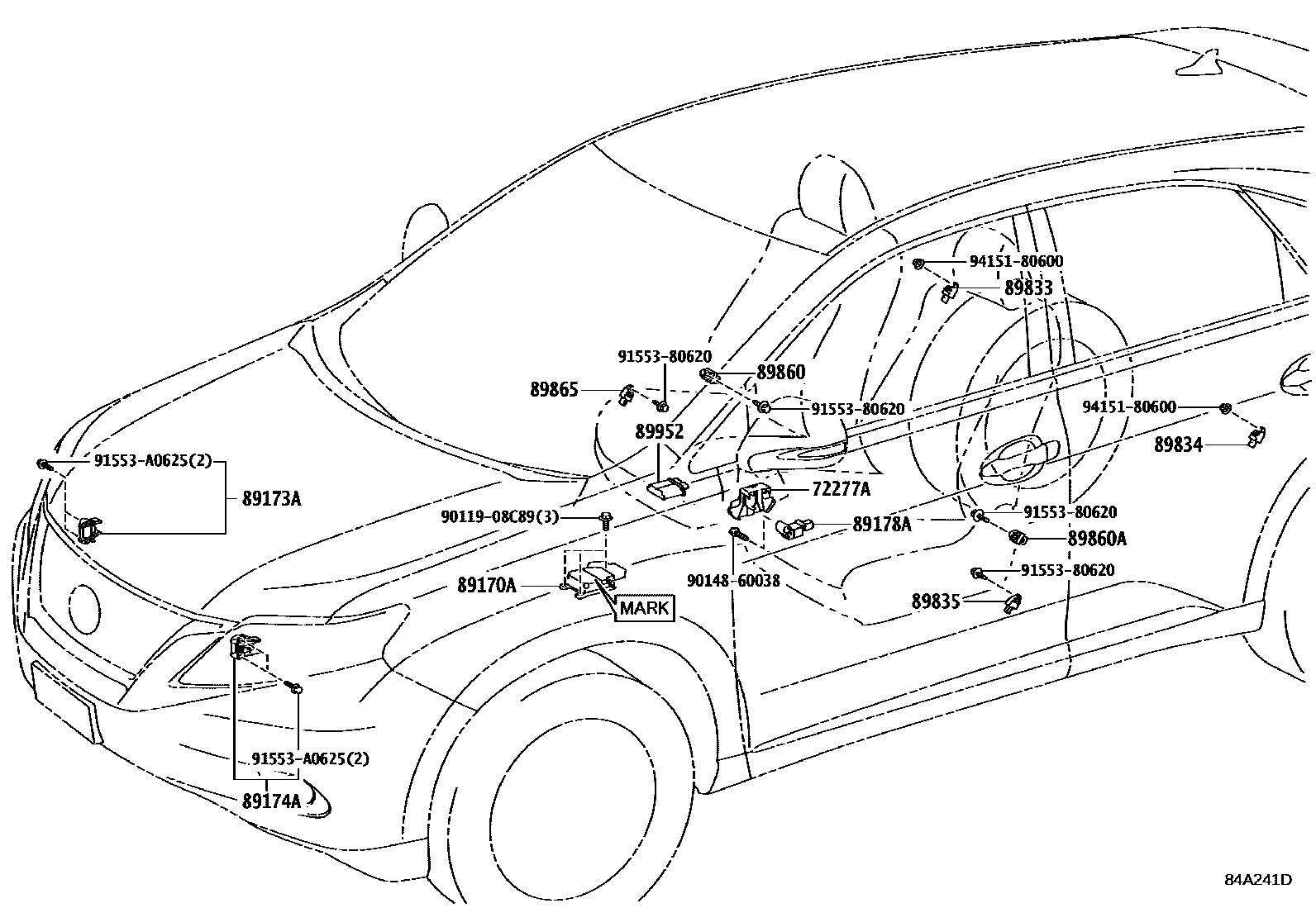

17 parts on this diagram · 1 diagram in section
