ELECTRONIC FUEL INJECTION SYSTEM

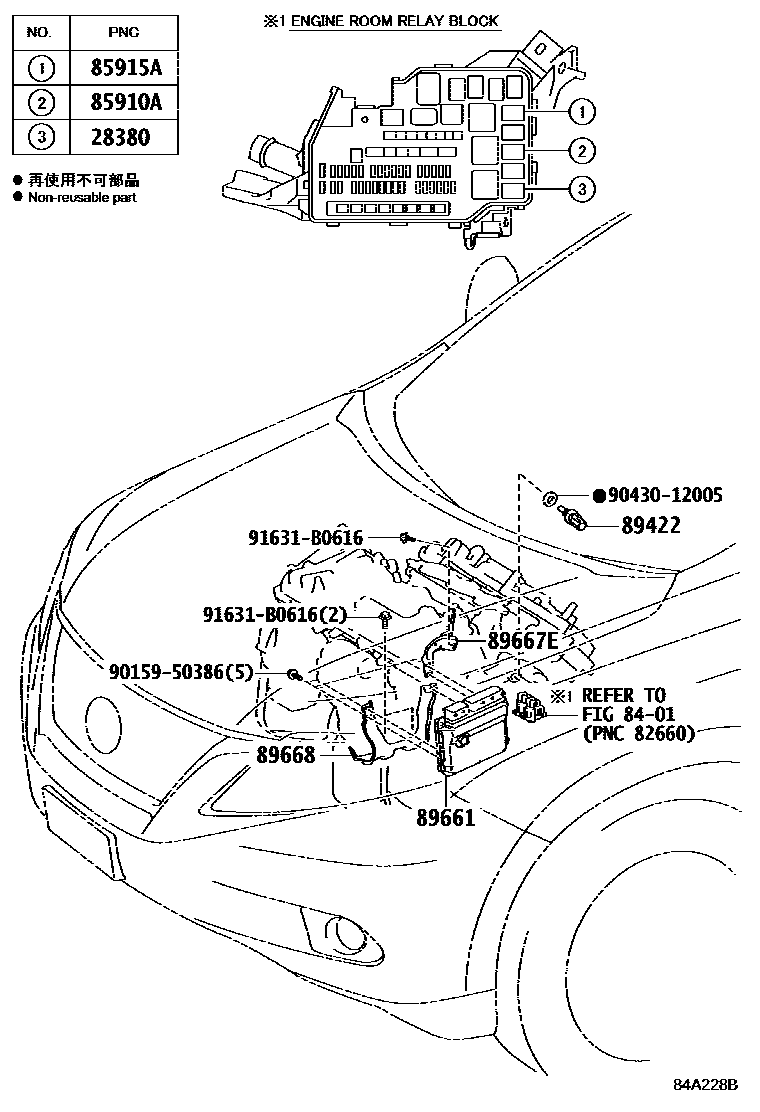

Parts diagram

28380RELAY ASSY, FUEL PUMP

main90987-04004i201203-201509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027i200812-201203

85915ARELAY, MAIN

main90987-02027i200812-201203

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i201203

89661COMPUTER, ENGINE CONTROL

main89661-48D20i200812-201007

main89661-48D30i200812-201007

main89661-48E20i200903-200905

main89661-48E21i200906-201008

main89661-48F80i201203-201308

main89661-48J00i201008-201108

main89661-48J70i201008-201108

main89661-48J80i201108-201203

main89661-48M20i201203-201305

P/N LABEL=8966148M20

main89661-48M21i201306-201403

main89661-48M30i201203-201305

P/N LABEL=8966148M30

main89661-48Q70i201308-201503

main89661-48Q71i201504

main89661-48R00i201403-201507

P/N LABEL=8966148R00

main89661-48R01i201508

main89661-48R10i201403-201507

P/N LABEL=8966148R10

main89661-48R11i201508

main89661-48D80i200812-201108

KOREA SPEC

main89661-48E00i200812-201008

MEXICO SPEC

main89661-48E10i200812-201008

MEXICO SPEC

main89661-48E60i200903-201008

KOREA SPEC

main89661-48G70i201008-201203

KOREA SPEC

main89661-48K40supersedes 89661-48J90i201108-201203

KOREA SPEC

main89661-48N60supersedes 89661-48M31i201203-201403

KOREA SPEC,P/N LABEL=8966148N60

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48110i201203

main89667-48120i200903-201203

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48090i200812-201203

main89668-48100i200903-201203

9015950386

main90159-50386

9043012005

main90430-12005

91631B0616

main91631-B0616
