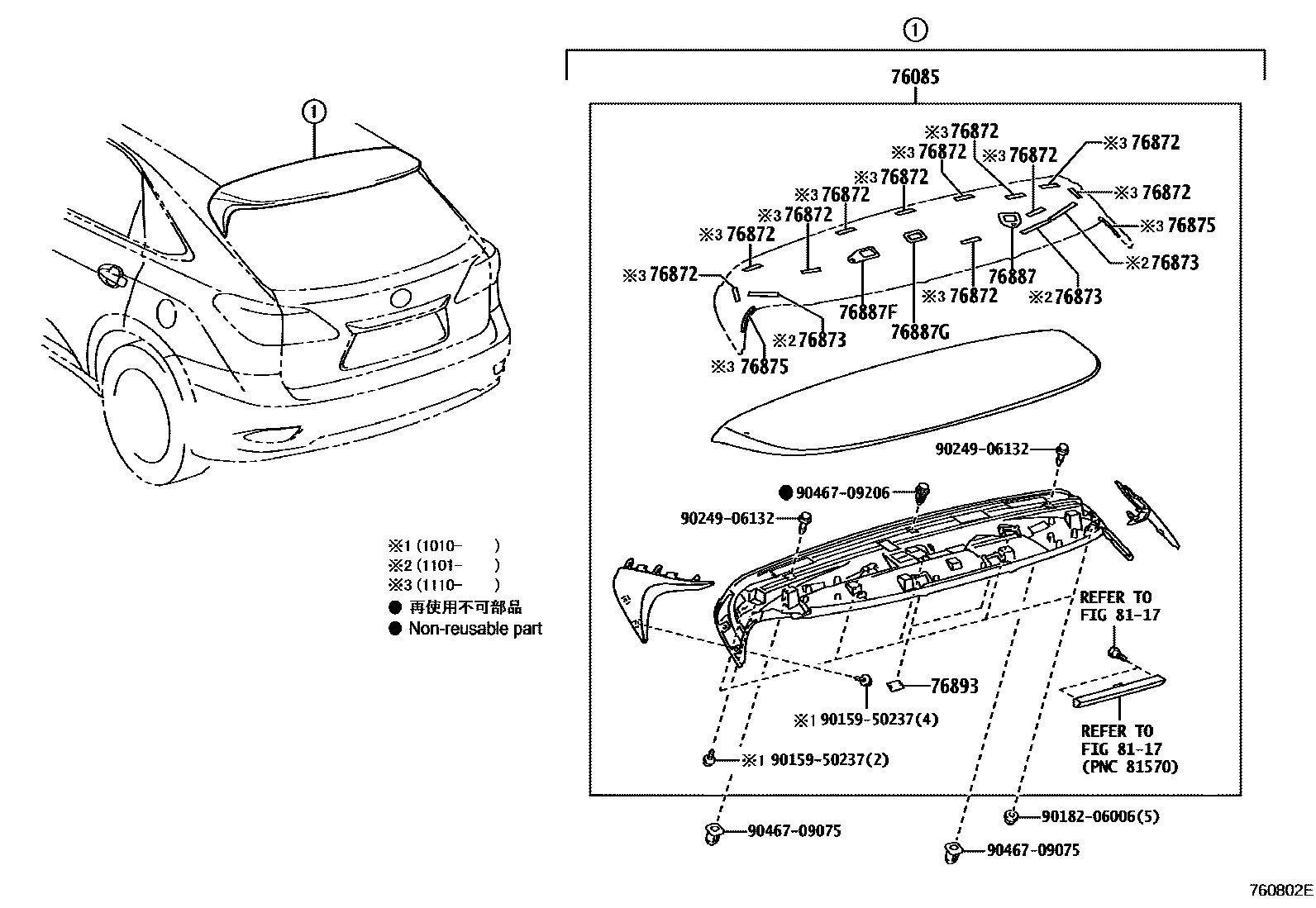

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
WHITE PEARL CS.,077
QUARTZ WHITE C.S.,078
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BEIGE ME.,4T1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
DK.BLUE MC. CC.,8U0
SILVERY BLUE ME.,8U9
WHITE PEARL CS.,077
QUARTZ WHITE CS.,078
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
LAPIS LAZULI MC.,8V3
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
BLACK,212
STARLIGHT BLACK GF.,217
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
LAPIS LAZULI MC.,8V3
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76875PROTECTOR, REAR SPOILER, NO.4
76887SEAL, REAR SPOILER
76887FSEAL, REAR SPOILER, NO.2
76887GSEAL, REAR SPOILER, NO.3
76893COVER, REAR SPOILER, NO.1
8117
9015950237
main90159-50237
9018206006
main90182-06006
9024906132
main90249-06132
9046709075
main90467-09075
9046709206
main90467-09206
14 parts on this diagram · 1 diagram in section
