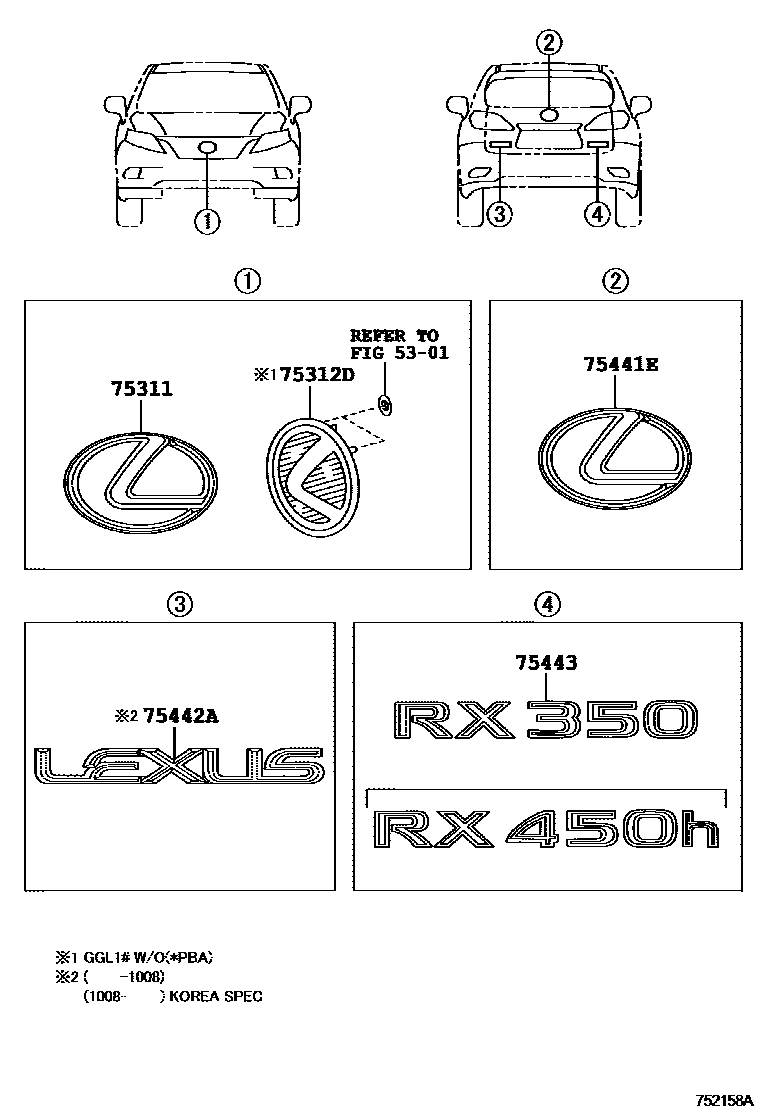

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02117i200903-201112

main90975-02126i201201-201203

main53141-48050i201203-201308

AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); USA DEPENDANCY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)

main53141-48060i201203-201308

AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); PRE-COLLISION SYSTEM-WITH(*PSB & *PBA); USA DEPENDANCY SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)

main53141-50030i200903-200908

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)

75312DBASE, RADIATOR GRILLE EMBLEM

main75312-48040i200812-200906

main75312-48041i200907-201203

main75312-48060i201008-201108

KOREA SPEC&ART WORKS

75441EPLATE, BACK DOOR NAME, NO.1

main90975-02079i200812-201203

main90975-02113i200903-201110

main90975-02228i201203-201509

75442APLATE, BACK DOOR NAME, NO.2

main75442-48110i200812-201008

LEXUS

75443PLATE, BACK DOOR NAME, NO.3

main75443-48130i201203-201509

RX350

main75443-48140i201203-201509

RX450H

6 parts on this diagram · 2 diagrams in section
