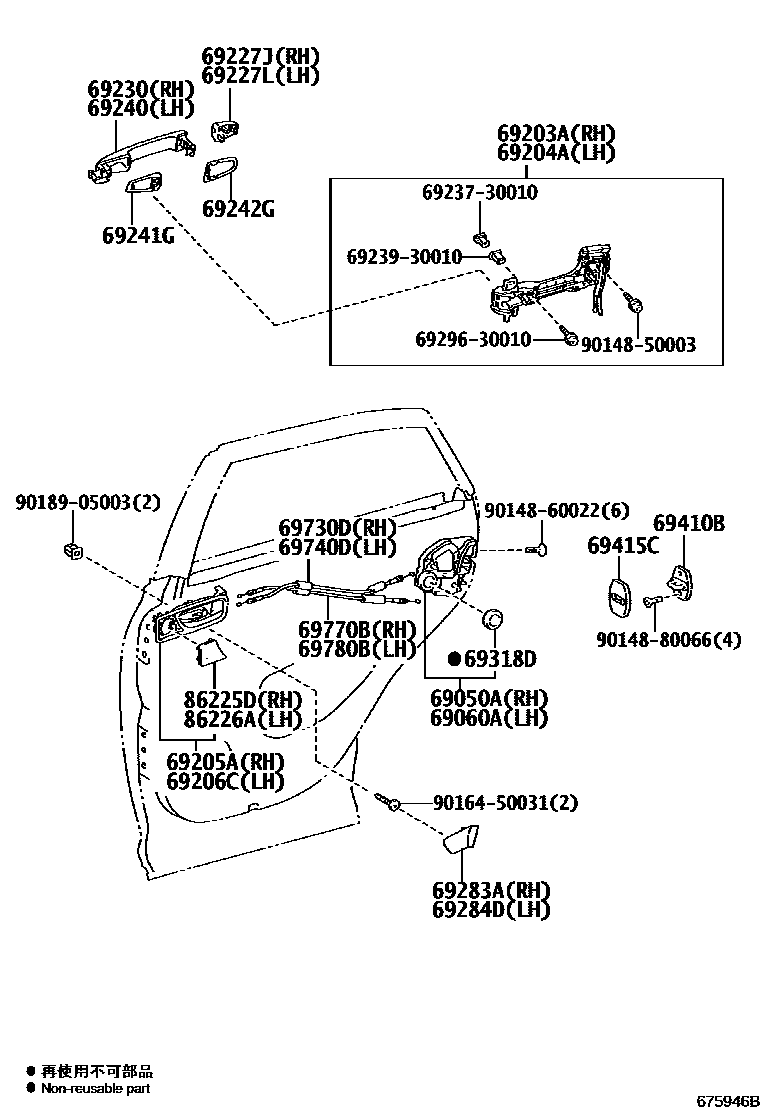

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
W(CHILD LOCK LEVER)
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
W(CHILD LOCK LEVER)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM2#
BLACK,TRIM12,2#
BLACK,TRIM1#,2#,3#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
BLACK,TRIM12,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
86225DCOVER, SPEAKER, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM12,2#
86226ACOVER, SPEAKER, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM12,2#
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section
