MAT & CARPET

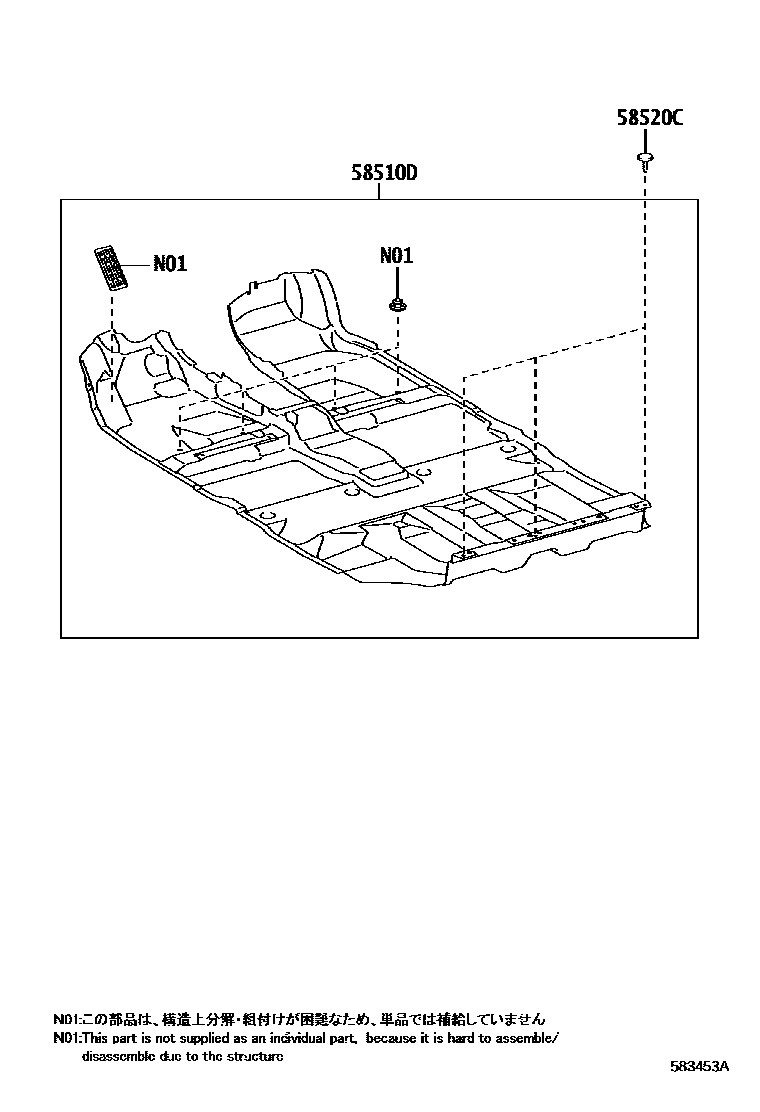

Parts diagram

58510DCARPET ASSY, FLOOR, FRONT

main58510-48270-A0i200812-201203

IVORY,TRIM0#

main58510-48270-B0i200812-201203

LT.GRAY,TRIM1#

main58510-48270-C0i200812-201203

BLACK,TRIM2#

main58510-48271-A0i201203-201403

IVORY,TRIM0#

main58510-48271-B0i201203-201403

LT.GRAY,TRIM1#

main58510-48271-C0i201203-201403

BLACK,TRIM2#,3#,4#

main58510-48272-A0i201404

IVORY,TRIM0#

main58510-48272-B0i201404

LT.GRAY,TRIM1#

main58510-48272-C0i201404

BLACK,TRIM2#,4#

main58510-48290-A0i200903-201203

IVORY,TRIM0#

main58510-48290-C0i200903-201203

BLACK,TRIM1#,2#

main58510-48291-A0i201203-201403

IVORY,TRIM0#

main58510-48291-B0i201203-201403

LT.GRAY,TRIM1#

main58510-48291-C0i201203-201403

BLACK,TRIM2#,3#,4#

main58510-48292-A0i201404

IVORY,TRIM0#

main58510-48292-B0i201404

LT.GRAY,TRIM1#

main58510-48292-C0i201404

BLACK,TRIM2#,4#

main58510-48380-C0i201203-201403

F SPORT&ACCELERATOR PEDAL-ALUMINUM TYPE,BLACK,TRIM2#,3#,4#

main58510-48381-C0i201404

F SPORT&ACCELERATOR PEDAL-ALUMINUM TYPE,BLACK,TRIM2#,3#

main58510-48400-C0i201203

F SPORT&ACCELERATOR PEDAL-ALUMINUM TYPE,BLACK,TRIM2#,3#,4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0×3i201203

BLACK

2 parts on this diagram · 4 diagrams in section
