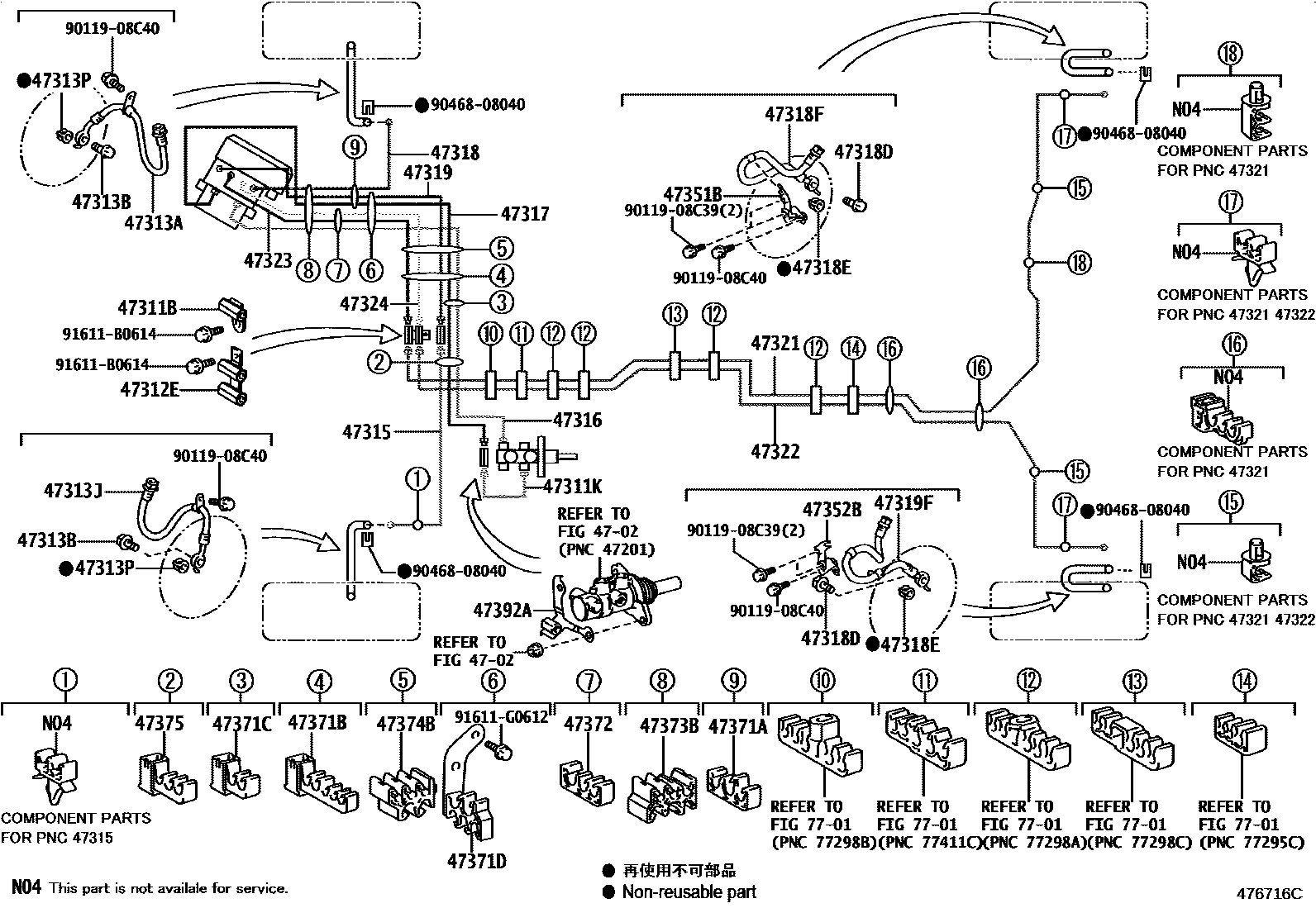

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10213200812-201203

main90412-10261200903-201203

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-48040200812-201509

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10246200812-201203

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F79200812-201203

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058200812-201203

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F80200812-201203

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020200812-201203

47315TUBE, FRONT BRAKE, NO.5

main47315-48190200812-201203

main47315-48200200903-201203

47316TUBE, FRONT BRAKE, NO.6

main47316-48270200812-201203

main47316-48300200903-201203

47317TUBE, FRONT BRAKE, NO.7

main47317-48270200812-201203

main47317-48300200903-201203

47318TUBE, FRONT BRAKE, NO.8

main47318-48170200812-201203

main47318-48180200903-201203

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058200812-201203

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020200812-201203

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F78200812-201203

47319TUBE, FRONT BRAKE, NO.9

main47319-48250200812-201203

main47319-48280200903-201203

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F78200812-201203

47321TUBE, REAR BRAKE, NO.1

main47321-48110200812-201203

main47321-48120200903-201203

47322TUBE, REAR BRAKE, NO.2

main47322-48120200812-201203

main47322-48130200903-201203

47323TUBE, REAR BRAKE, NO.3

main47323-48280200812-201203

main47323-48310200903-201203

47324TUBE, REAR BRAKE, NO.4

main47324-48280200812-201203

main47324-48310200903-201203

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-48010200812-201203

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-48010200812-201203

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00880200903-201203

main90464-00919200812-201203

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D37200903-201203

main90949-01D51200812-201203

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00857200903-201203

main90949-01D49200812-201203

47371DCLAMP, BRAKE TUBE, NO.8

main90949-04045200812-201203

47372CLAMP, BRAKE TUBE, NO.2

main90464-00894200812-201203

main90949-01C85200903-201203

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D21200903-201203

main90949-01D52200812-201203

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00904200903-201203

main90949-01D53200812-201203

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D50200812-201203

main90949-04033200903-201203

47392AWAY, BRAKE TUBE, NO.2

main47392-48010200812-201509

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C39

main90119-08C39

9011908C40

main90119-08C40

9046808040

main90468-08040

91611B0614

main91611-B0614

91611G0612

main91611-G0612

38 parts on this diagram · 4 diagrams in section
