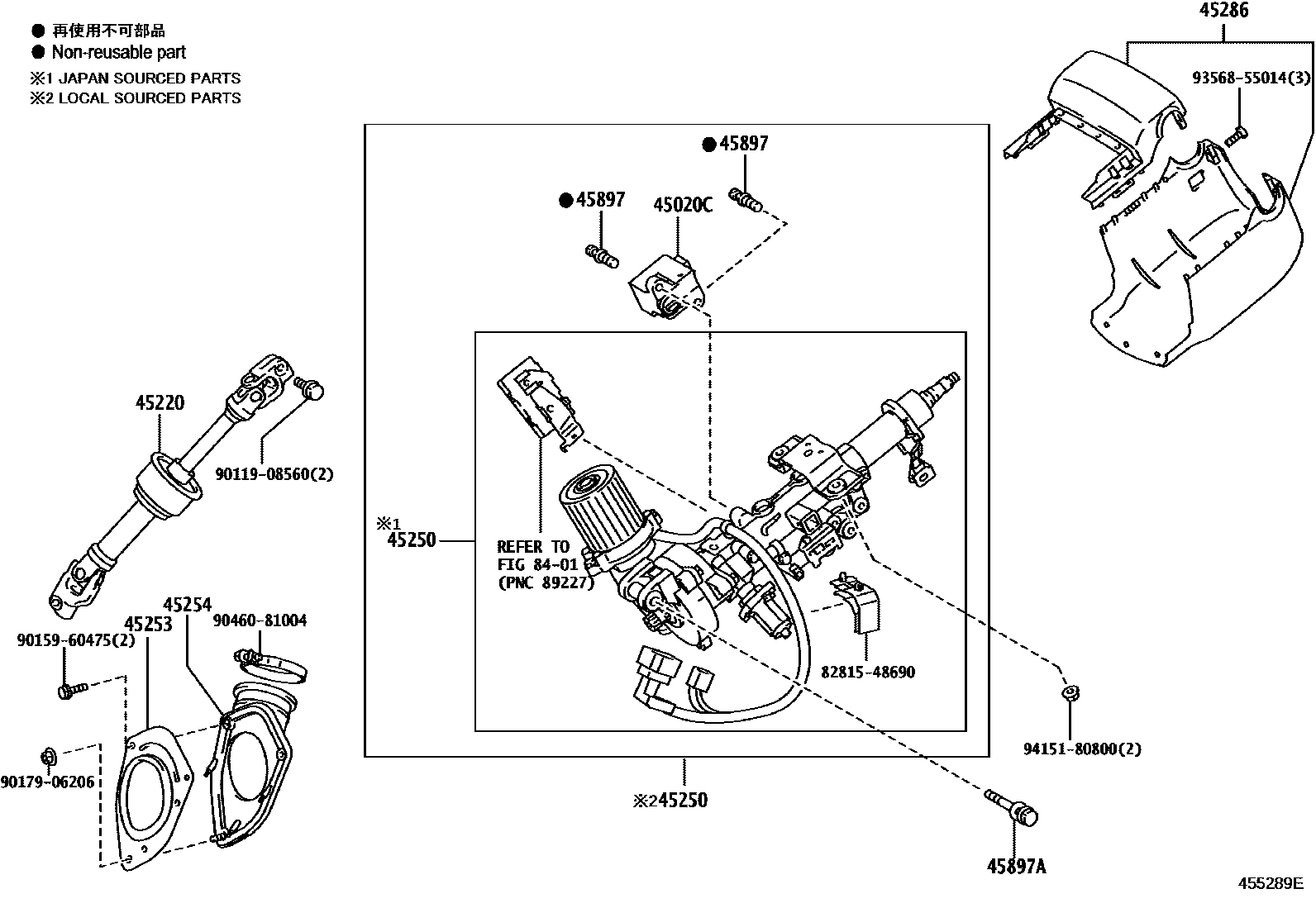

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0E020iGGL1#,GYL1#..JPP201203

(L)

main45020-48100iGGL1#,GYL1#..JPP201203

(J)

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-48200iGGL1#,GYL1#..JPP200812-201203

main45220-48201iGGL1#,GYL1#..JPP201404

45250COLUMN ASSY, STEERING

main45250-0E081iGGL1#,GYL1#..JPP201102-201203

(L)

main45250-48240iGGL1#,GYL1#..JPP200812-201105

(J)

main45250-48241iGGL1#,GYL1#..JPP201203

(J)

45253COVER, STEERING COLUMN HOLE

main45253-48050iGGL1#,GYL1#..JPP200812-201203

45254SHIELD, STEERING COLUMN HOLE

main45254-48080iGGL1#,GYL1#..JPP200812-201203

45286COVER, STEERING COLUMN

main45286-48910-C0iGGL1#,GYL1#..JPP200812-201201

BLACK,TRIM1#,2#

main45286-48910-E0iGGL1#,GYL1#..JPP200812-201201

DK. BROWN,TRIM0#

main45286-48911-C0iGGL1#,GYL1#..JPP201201-201203

BLACK,TRIM1#,2#

main45286-48911-E0iGGL1#,GYL1#..JPP201203

DK. BROWN,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iGGL1#,GYL1#..JPP200812-201203

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iGGL1#,GYL1#..JPP200812-201203

main90119-10981iGGL1#,GYL1#..JPP201210

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8281548690COVER, WIRING HARNESS PROTECTOR

main82815-48690

9011908560

main90119-08560

9015960475

main90159-60475

9017906206

main90179-06206

9046081004

main90460-81004

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
