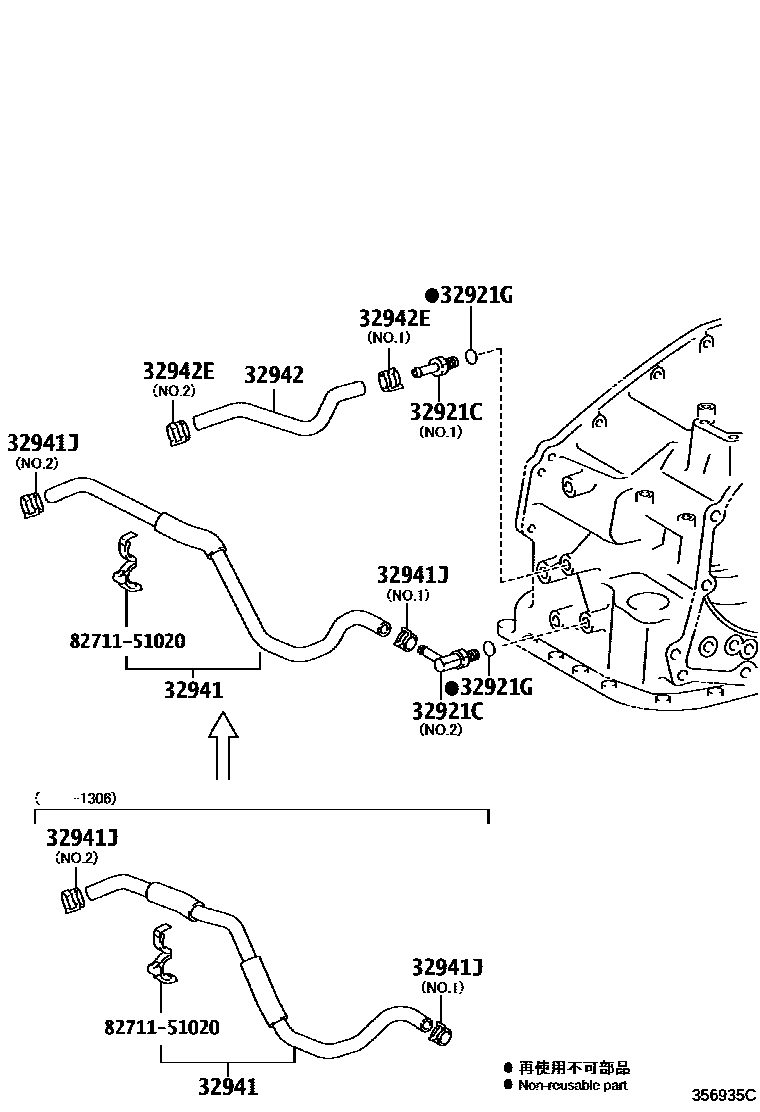

OIL COOLER & TUBE (ATM)

32921CUNION(FOR OIL COOLER TUBE)

main90404-14027i201203-201306

NO.1

main90407-14032i201203-201306

NO.2

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2i200812-201108

main90301-11031×2i201108-201203

32941HOSE, OIL COOLER INLET, NO.1

main32930-48020i200812-200906

main32930-48021i201203-201306

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004i200812-201203

NO.1

main90467-16022i200812-201203

NO.2

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-48040supersedes 32942-48070i201203-201303

AERO BUMPER(FRONT)&TOWING PACKAGE-3500LBS(W/T.CONVERTER); F SPORT&TOWING PACKAGE-3500LBS(W/T.CONVERTER); TOWING PACKAGE-3500LBS(W/T.CONVERTER)

main32942-48080supersedes 32942-48070i201304

AERO BUMPER(FRONT)&TOWING PACKAGE-3500LBS(W/T.CONVERTER); F SPORT&TOWING PACKAGE-3500LBS(W/T.CONVERTER); TOWING PACKAGE-3500LBS(W/T.CONVERTER)

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004i200812-201203

NO.1

NO.2

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

7 parts on this diagram · 3 diagrams in section
