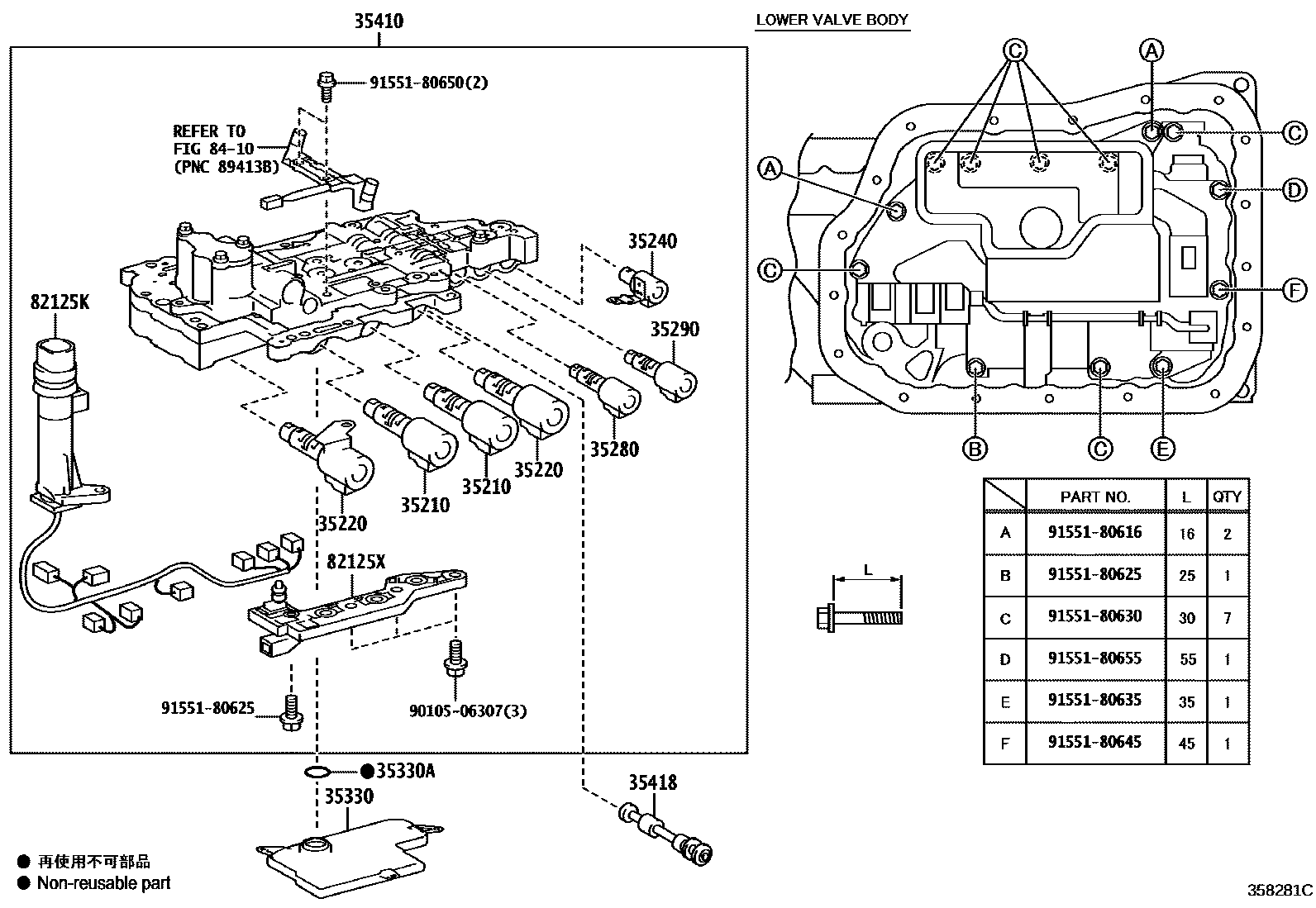

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E,U660F 0002 1U660E,U660F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030×2iGGL1#..JPP200812-201203

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040×2iGGL1#..JPP200812-201203

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iGGL1#..JPP200812-201203

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52040iGGL1#..JPP200812-201203

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iGGL1#..JPP200812-201203

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGGL1#..JPP200812-201203

main35330-48020iGGL1#..JPP201308

35330ARING, O (FOR OIL STRAINER)

main90301-27010iGGL1#..JPP200812-201108

main90301-27015iGGL1#..JPP201108-201203

35410BODY ASSY, TRANSMISSION VALVE

main35410-33171iGGL1#..JPP200812-201108

main35410-33240iGGL1#..JPP201108-201203

35418VALVE, MANUAL

main35418-73010iGGL1#..JPP200812-201203

82125KWIRE, TRANSMISSION

main82125-33100iGGL1#..JPP200812-201108

main82125-33160iGGL1#..JPP201108-201203

82125XWIRE, TRANSMISSION, WITH TEMPERATURE SENSOR

main82125-33090iGGL1#..JPP200812-201108

main82125-33150iGGL1#..JPP201108-201203

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

20 parts on this diagram · 2 diagrams in section
