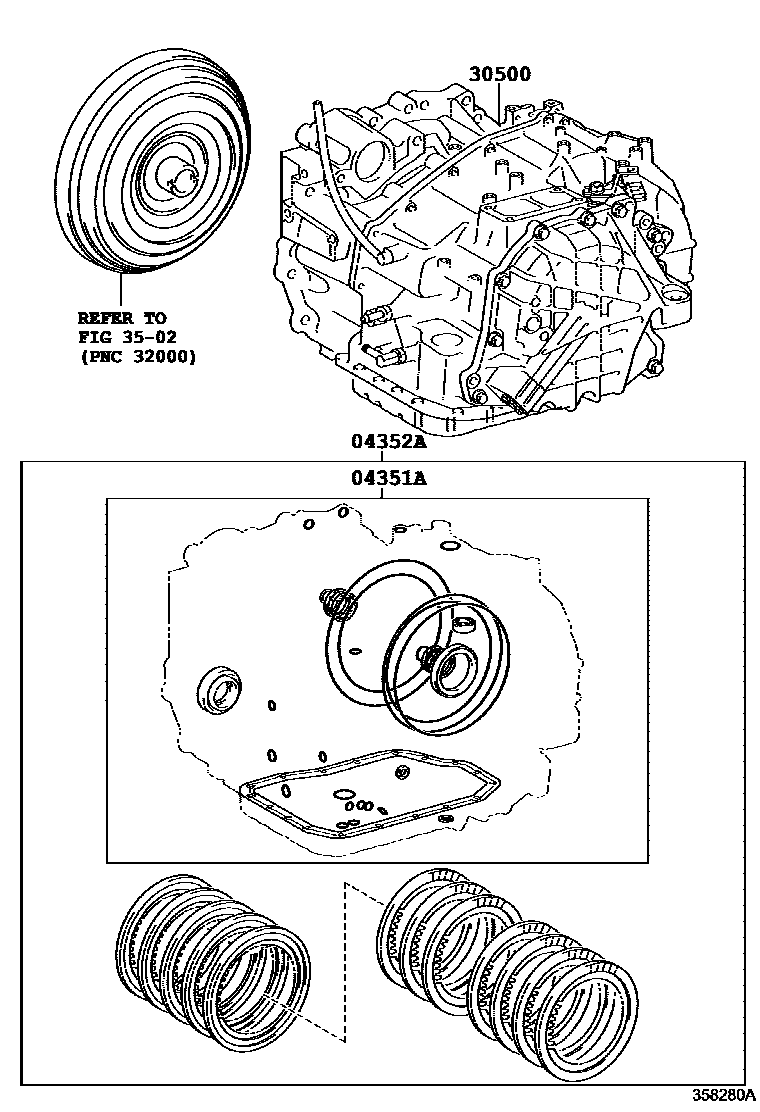

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-28180iGGL15..JPP200812-201108

main04351-28181iGGL15..JPP201203

main04351-33400iGGL10..JPP200812-201108

main04351-33401iGGL10..JPP201108-201203

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-33390iGGL10..JPP200812-201108

main04352-33391iGGL10..JPP201108-201203

main04352-58120iGGL15..JPP200812-201108

main04352-58121iGGL15..JPP201108-201203

30500TRANSAXLE ASSY, AUTOMATIC

main30500-48290iGGL10..JPP200812-201108

U660E

main30500-48291iGGL10..JPP201108-201203

U660E

main30500-48292iGGL10..JPP201306-201509

U660E

main30500-48300iGGL15..JPP200812-201108

U660F

main30500-48301iGGL15..JPP201108-201203

U660F

main30500-48302iGGL15..JPP201306-201509

U660F

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

4 parts on this diagram · 1 diagram in section
