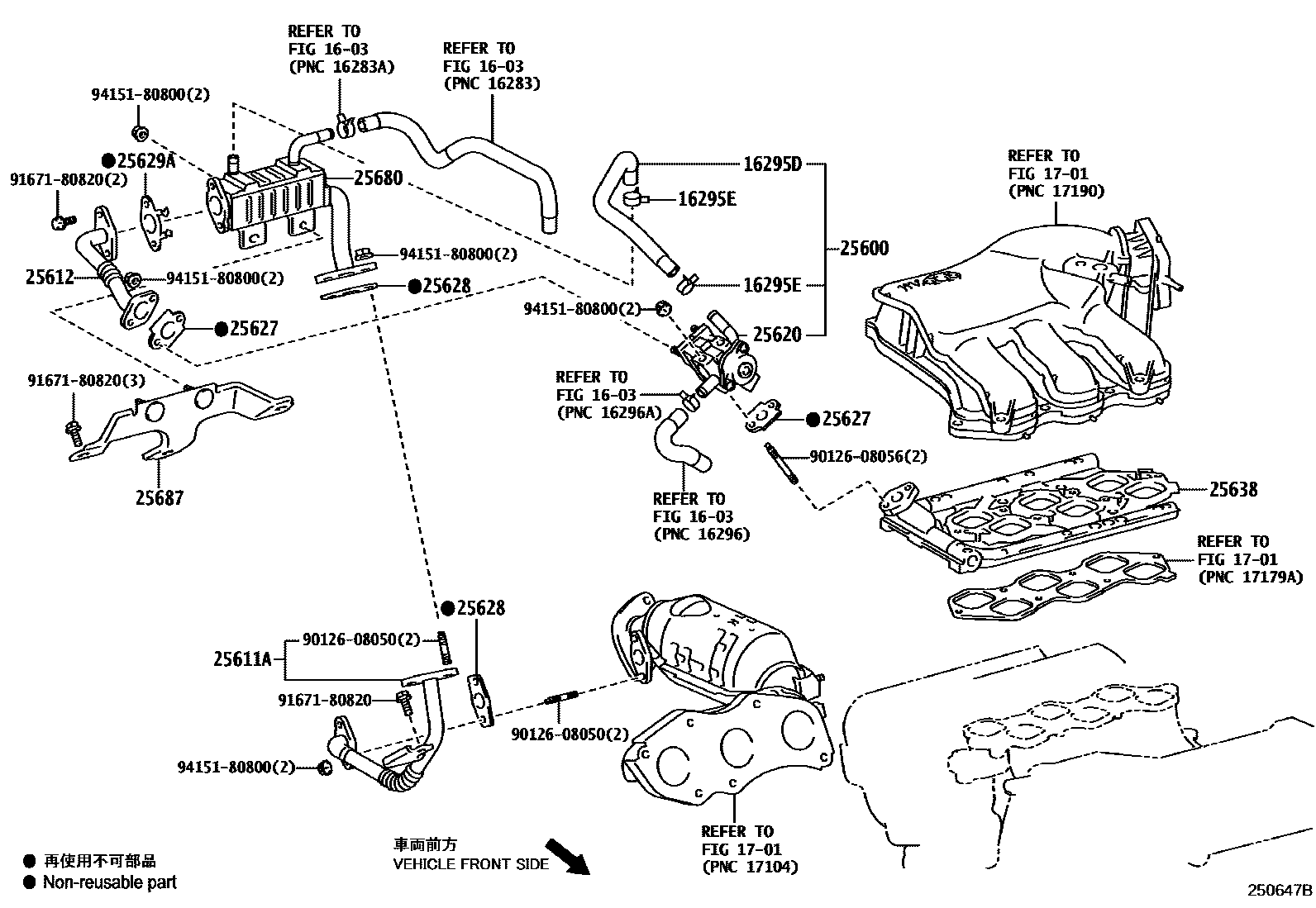

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16295DHOSE, WATER BY-PASS, NO.7

main16295-31010i2GRFXE..GYL1#..JPP200903-201203

16295ECLIP(FOR WATER BY-PASS HOSE NO.7)

main96136-52201×2i2GRFXE..GYL1#..JPP200903-201203

1701MANIFOLD

→ Go to FIG 17-01

25600VALVE ASSY, EGR INTEGRATED

main25600-31010i2GRFXE..GYL1#..JPP200903-201203

25611APIPE, EGR, NO.1

main25611-31040i2GRFXE..GYL1#..JPP200903-201203

25612PIPE, EGR, NO.2

main25612-31010i2GRFXE..GYL1#..JPP200903-201009

main25612-31030i2GRFXE..GYL1#..JPP201010-201203

25620VALVE ASSY, EGR

main25620-31070i2GRFXE..GYL1#..JPP200903-201203

25627GASKET, EGR VALVE

main25627-31030×2i2GRFXE..GYL1#..JPP200903-201203

25628GASKET, EGR INLET

main25628-31010×2i2GRFXE..GYL1#..JPP200903-201203

25629AGASKET, EGR PIPE, NO.2

main25629-31030i2GRFXE..GYL1#..JPP200903-201203

25638CHAMBER, EGR DELIVERY

main25638-31010i2GRFXE..GYL1#..JPP200903-201203

25680COOLER ASSY, EGR

main25680-31010i2GRFXE..GYL1#..JPP200903-201009

main25680-31040i2GRFXE..GYL1#..JPP201010-201203

25687BRACKET, EGR COOLER, NO.1

main25687-31010i2GRFXE..GYL1#..JPP200903-201203

9012608050

main90126-08050

9012608056

main90126-08056

9167180820

main91671-80820

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
