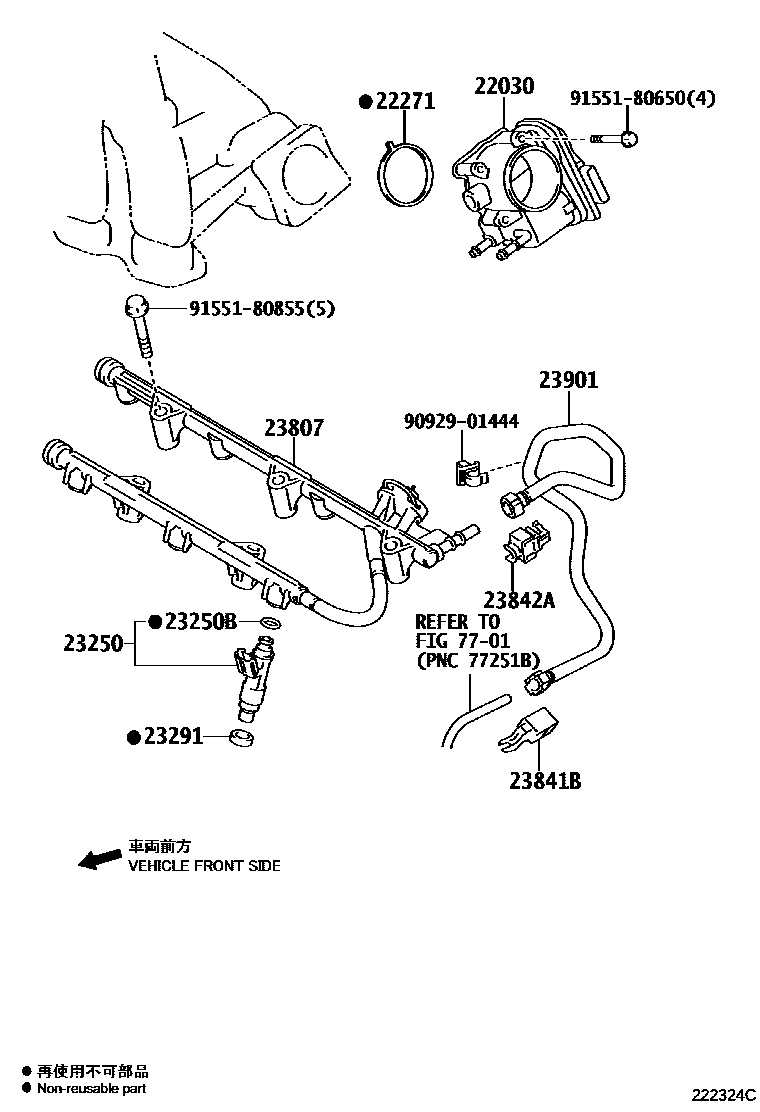

FUEL INJECTION SYSTEM

0001 1 0002 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GR#..GGL1#,GYL1#..JPP201203

(L)

main22030-31030i2GR#..GGL1#,GYL1#..JPP200812-201203

22271GASKET, THROTTLE BODY

main22271-31040i2GR#..GGL1#,GYL1#..JPP200812-201203

23250INJECTOR ASSY, FUEL

main23209-31090×6i2GR#..GGL1#,GYL1#..JPP200812-201203

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GR#..GGL1#,GYL1#..JPP200812-201203

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GGL1#..JPP201203

main23291-28020×6i2GRFXE..GYL1#..JPP200903-201203

23807PIPE SUB-ASSY, FUEL DELIVERY

main23870-31010i2GR#..GGL1#,GYL1#..JPP200812-201203

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GR#..GGL1#,GYL1#..JPP200812-201203

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31040i2GR#..GGL1#,GYL1#..JPP200812-201203

23901TUBE SUB-ASSY, FUEL

main23901-31200i2GRFE..GGL1#..JPP200812-201203

main23901-31210i2GRFXE..GYL1#..JPP200903-201203

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9092901444

main90929-01444

9155180650

main91551-80650

9155180855

main91551-80855

13 parts on this diagram · 2 diagrams in section
