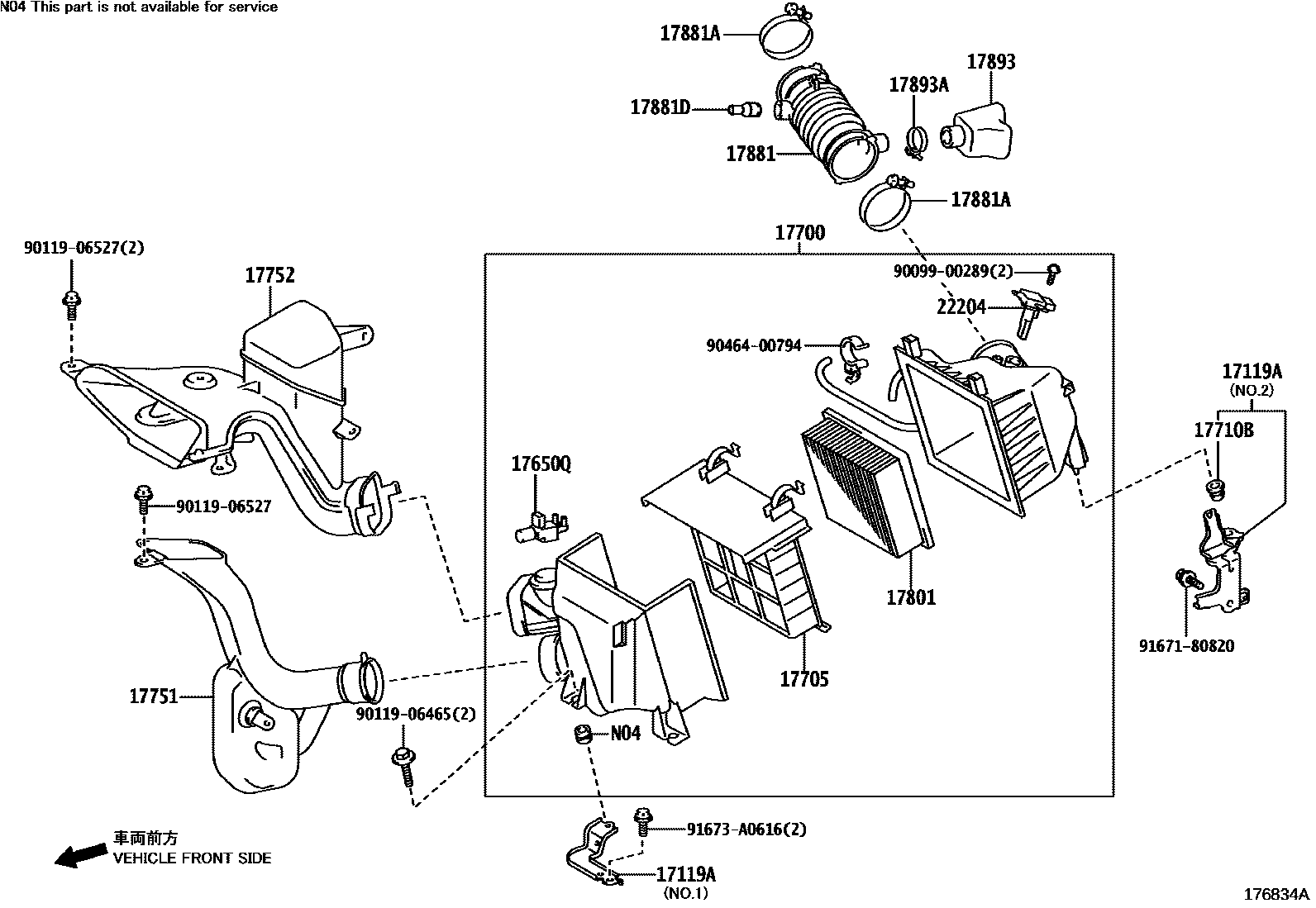

AIR CLEANER
17119ABRACKET, AIR CLEANER
NO.1
NO.2
17650QVALVE, VACUUM SWITCHING
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0T040
MARK 22204-0V010
MARK 22204-0V020
MARK 22204-28010
9009900289
main90099-00289
9011906465
main90119-06465
9011906527
main90119-06527
9046400794
main90464-00794
9167180820
main91671-80820
91673A0616
main91673-A0616
20 parts on this diagram · 3 diagrams in section
