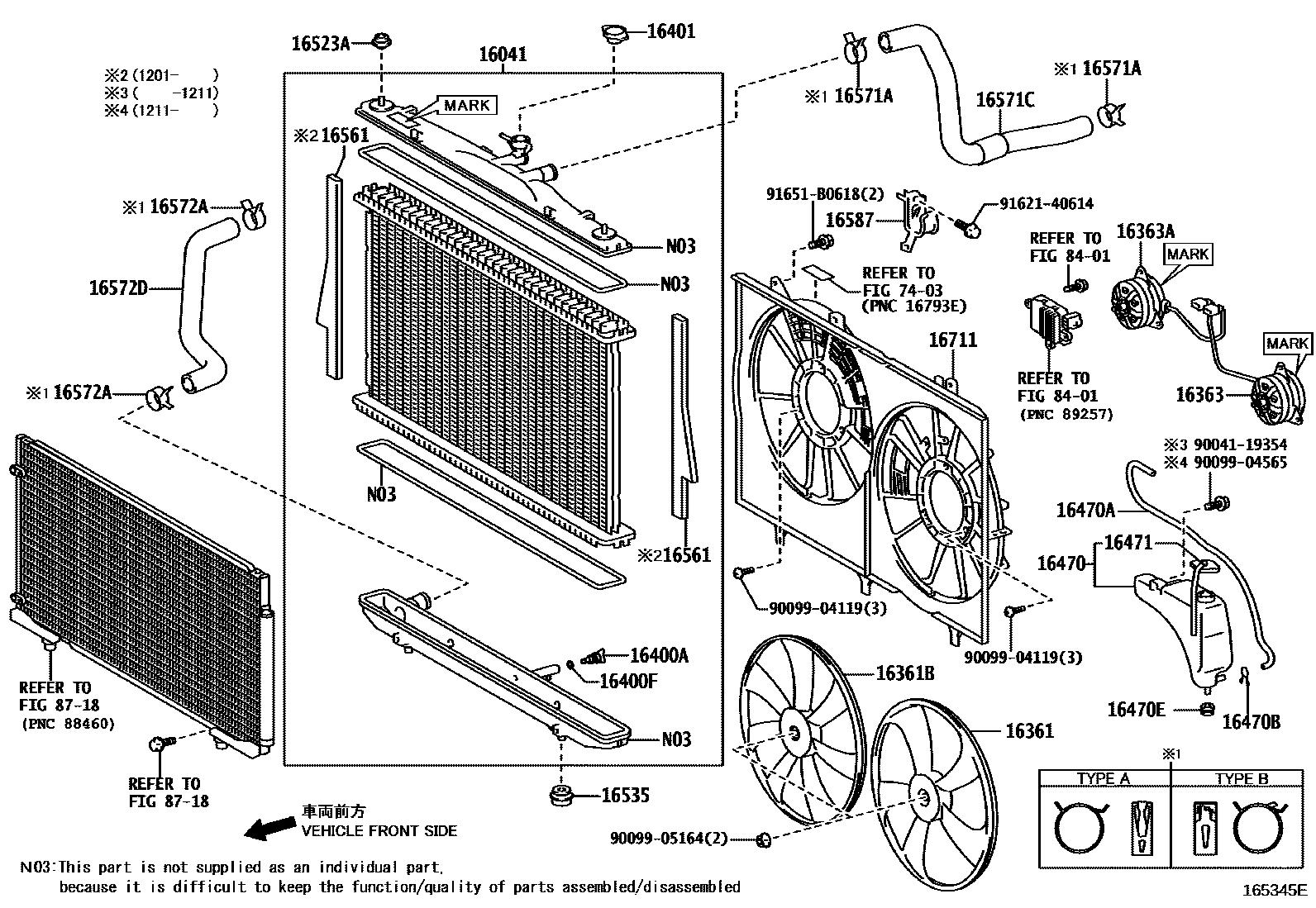

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1W(OIL COOLER)

16041RADIATOR ASSY, NO.2

main16041-31630i2GRFXE..GYL1#..JPP200903-201201

main16041-31840i2GRFXE..GYL1#..JPP201201-201203

main16041-31620supersedes 16041-31660i2GRFE..GGL1#..JPP200812-201201

TOWING PACKAGE-3500LBS(W/T.CONVERTER),RADIATOR MARK=3162

main16041-31670supersedes 16041-31660i2GRFE..GGL1#..JPP201203

TOWING PACKAGE-3500LBS(W/T.CONVERTER)

16361FAN

main16361-20260i2GRFXE..GYL1#..JPP201203

main16361-31280supersedes 16361-31310i2GRFE..GGL1#..JPP201203

TOWING PACKAGE-3500LBS(W/T.CONVERTER)

16361BFAN, NO.2

main16361-20250i2GRFXE..GYL1#..JPP201203

main16361-31270supersedes 16361-31320i2GRFE..GGL1#..JPP201203

TOWING PACKAGE-3500LBS(W/T.CONVERTER)

16363MOTOR, COOLING FAN

main16363-31260i2GRFXE..GYL1#..JPP200903-201203

main16363-31261i2GRFXE..GYL1#..JPP201211-201509

MARK 16363-31261

main16363-31380supersedes 16363-31331i2GRFE..GGL1#..JPP201211-201509

TOWING PACKAGE-3500LBS(W/T.CONVERTER),MARK 16363-31380

main16363-46170supersedes 16363-31331i2GRFE..GGL1#..JPP201203-201211

TOWING PACKAGE-3500LBS(W/T.CONVERTER),MARK 16363-46170

16363AMOTOR, COOLING FAN, NO.2

main16363-20390i2GRFXE..GYL1#..JPP201203-201211

MARK 16363-20390

main16363-31390i2GRFXE..GYL1#..JPP201211-201509

MARK 16363-31390

main16363-31250supersedes 16363-31160i2GRFE..GGL1#..JPP201203-201211

TOWING PACKAGE-3500LBS(W/T.CONVERTER),MARK 16363-31250

main16363-31251supersedes 16363-31160i2GRFE..GGL1#..JPP201211-201509

TOWING PACKAGE-3500LBS(W/T.CONVERTER),MARK 16363-31251

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-21280i2GRFE..GGL1#..JPP; 2GRFXE..GYL1#..JPP201203

TOWING PACKAGE-3500LBS(W/T.CONVERTER)

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GR#..GGL1#,GYL1#..JPP200812-201203

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2GR#..GGL1#,GYL1#..JPP200812-201101

main16401-31520i2GR#..GGL1#,GYL1#..JPP201102-201203

16470TANK ASSY, RADIATOR RESERVE

main16470-31110i2GR#..GGL1#,GYL1#..JPP201203

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-31260i2GR#..GGL1#,GYL1#..JPP; 2GRFE..GGL1#..JPP201203

TOWING PACKAGE-3500LBS(W/T.CONVERTER)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2GR#..GGL1#,GYL1#..JPP200812-201203

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-17028i2GR#..GGL1#,GYL1#..JPP200812-201203

16471CAP SUB-ASSY, RESERVE TANK

main16405-31070i2GR#..GGL1#,GYL1#..JPP200812-201203

16523ACUSHION, RADIATOR SUPPORT

main16523-20020×2i2GR#..GGL1#,GYL1#..JPP200812-201203

16535SUPPORT, RADIATOR, LOWER

main16535-20030×2i2GR#..GGL1#,GYL1#..JPP200812-201203

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-31100×2i2GRFE..GGL1#..JPP; 2GRFXE..GYL1#..JPP201201-201202

TOWING PACKAGE-3500LBS(W/T.CONVERTER)

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-35001×2i2GR#..GGL1#,GYL1#..JPP201103-201203

TYPE A:REFER ILLUST.

main96136-44301×2i2GR#..GGL1#,GYL1#..JPP201103-201203

TYPE B:REFER ILLUST.

16571CHOSE, RADIATOR, NO.1

main16571-31260i2GR#..GGL1#,GYL1#..JPP201203

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001×2i2GR#..GGL1#,GYL1#..JPP200812-201103

main96136-44301×2i2GR#..GGL1#,GYL1#..JPP201103-201203

TYPE B:REFER ILLUST.

16572DHOSE, RADIATOR, NO.2

main16572-31320i2GR#..GGL1#,GYL1#..JPP200812-201203

16587CLAMP, RADIATOR PIPE

main16587-31030i2GR#..GGL1#,GYL1#..JPP201203

16711SHROUD, FAN

main16711-31440i2GRFE..GGL1#..JPP201203-201210

main16711-31441i2GRFE..GGL1#..JPP201211

main16711-31460i2GRFXE..GYL1#..JPP200903-201203

main16711-31461i2GRFXE..GYL1#..JPP201211

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9004119354

main90041-19354

9009904119

main90099-04119

9009904565

main90099-04565

9009905164

main90099-05164

9162140614

main91621-40614

91651B0618

main91651-B0618

31 parts on this diagram · 5 diagrams in section
