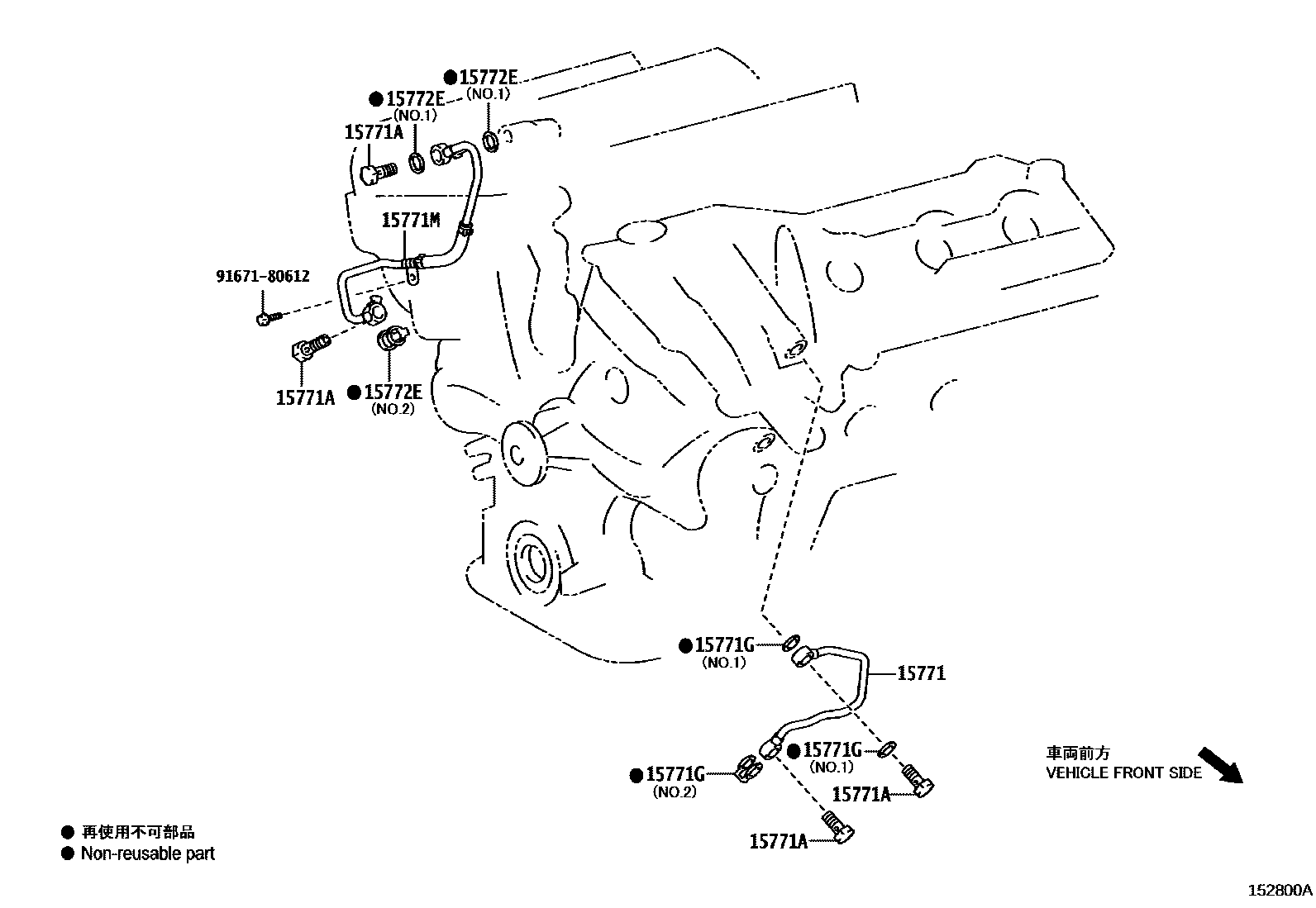

ENGINE OIL COOLER

0001 1 0002 1W(OIL COOLER) 0003 1W(OIL COOLER)

15771PIPE, OIL, NO.1

main15771-31010i2GR#..GGL1#,GYL1#..JPP200812-201203

15771AUNION(FOR OIL PIPE)

main90401-16043×4i2GR#..GGL1#,GYL1#..JPP201203

15771GGASKET

main90430-16016i2GR#..GGL1#,GYL1#..JPP200812-201203

NO.2

main90430-16017×2i2GR#..GGL1#,GYL1#..JPP200812-201203

NO.1

15771MPIPE, OIL

main15772-31030i2GR#..GGL1#,GYL1#..JPP201203

15772EGASKET(FOR OIL PIPE)

main90430-16016i2GR#..GGL1#,GYL1#..JPP200812-201203

NO.2

main90430-16017×2i2GR#..GGL1#,GYL1#..JPP200812-201203

NO.1

9167180612

main91671-80612

6 parts on this diagram · 3 diagrams in section
