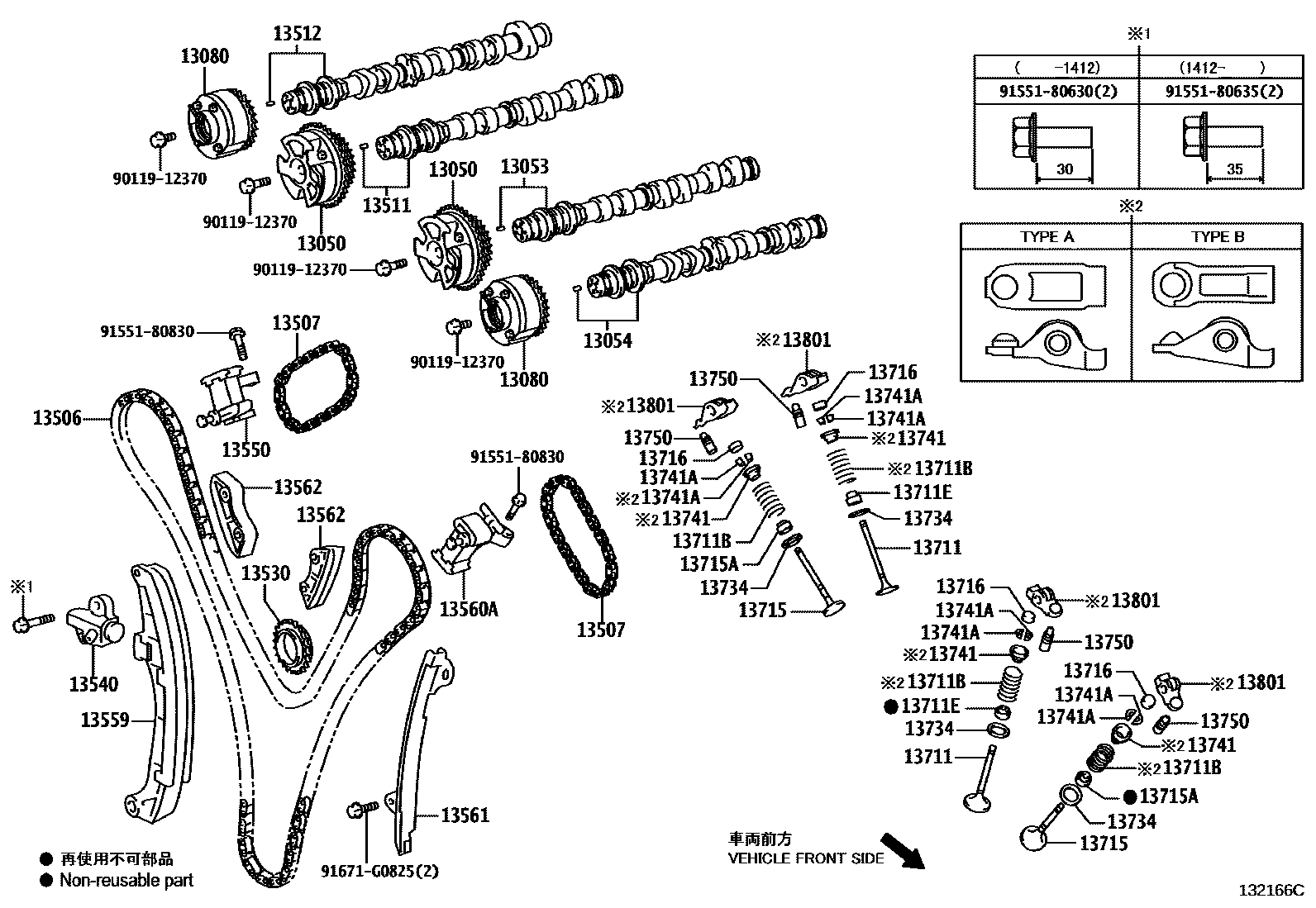

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
PNC 13801=TYPE B
PNC 13801=TYPE A
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13801=TYPE A
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9011912370
main90119-12370
9155180630
main91551-80630
9155180635
main91551-80635
9155180830
main91551-80830
91671G0825
main91671-G0825
31 parts on this diagram · 2 diagrams in section
