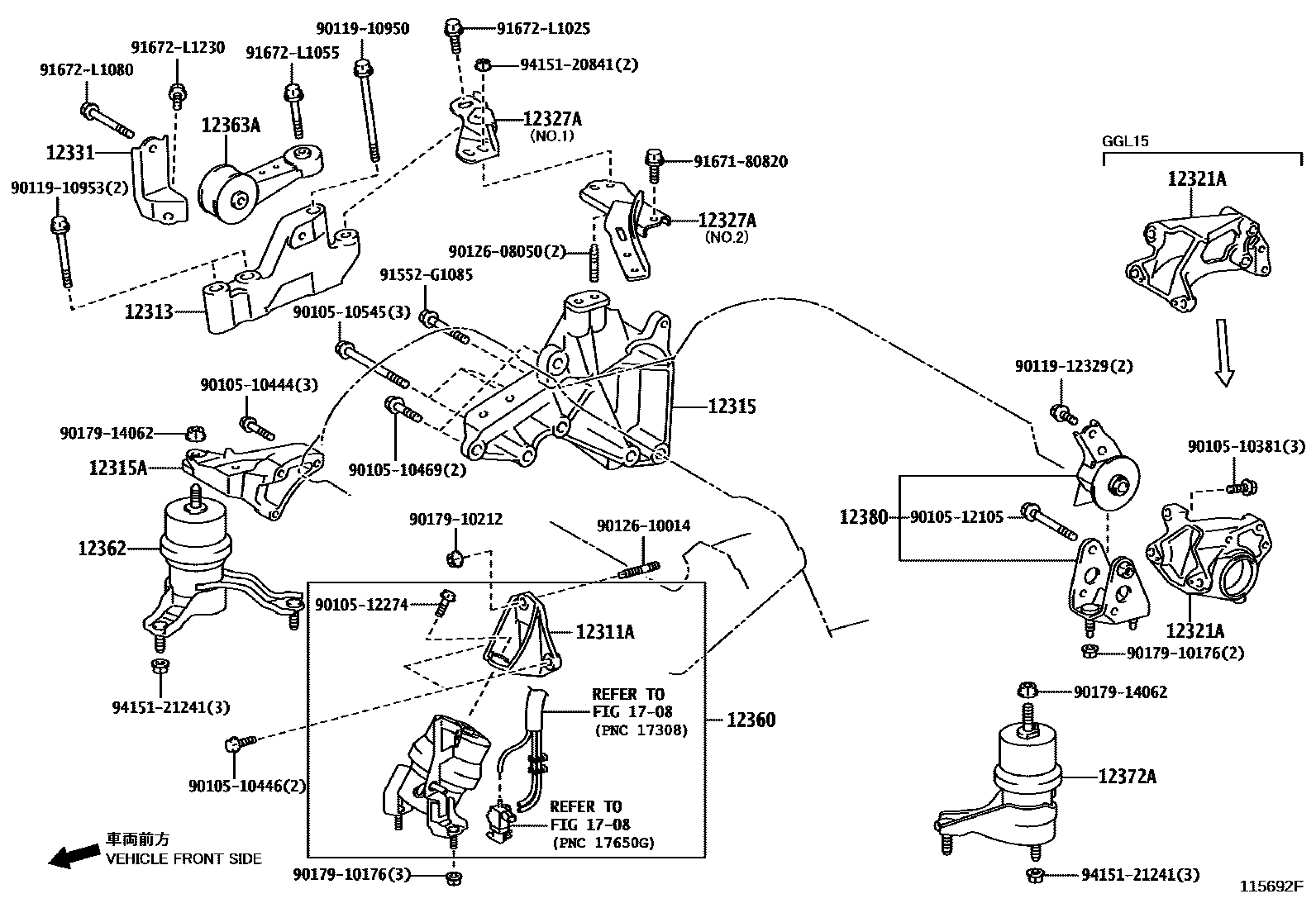

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-31060i200812-201203

main12311-31110i200903-201203

main12311-31140i201203

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-31050i200812-201203

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31091i201203

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12319-31010i200812-201203

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-31120i200812-201203

main12321-31130i200812-201203

main12321-31140i200903-201203

main12321-31141i201302

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-31010i200903-201203

NO.2

main12327-31020i200903-201203

NO.1

main12327-31060i200812-201004

NO.1

main12327-31070i200812-201203

NO.2

main12327-31090i201203

NO.2

main12327-31120i201503

NO.2

12331STAY, ENGINE MOUNTING, NO.3 RH

main12331-31010i200812-201203

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-31050i200812-201203

main12360-31070i201203

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-31040i200812-201203

main12362-31090i201301

12363AROD, ENGINE MOVING CONTROL

main12363-31060i200812-201203

main12363-31070i200903-201203

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-31010i200812-201203

main12372-31050i200903-201203

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-31050i200812-201203

main12380-31060i201203-201302

main12380-31061i201302

1708VACUUM PIPING

→ Go to FIG 17-08

9010510381

main90105-10381

9010510444

main90105-10444

9010510446

main90105-10446

9010510469

main90105-10469

9010510545

main90105-10545

9010512105

main90105-12105

9010512274

main90105-12274

9011910950

main90119-10950

9011910953

main90119-10953

9011912329

main90119-12329

9012608050

main90126-08050

9012610014

main90126-10014

9017910176

main90179-10176

9017910212

main90179-10212

9017914062

main90179-14062

91552G1085

main91552-G1085

9167180820

main91671-80820

91672L1025

main91672-L1025

91672L1055

main91672-L1055

91672L1080

main91672-L1080

91672L1230

main91672-L1230

9415120841

main94151-20841

9415121241

main94151-21241
