ENGINE OVERHAUL GASKET KIT

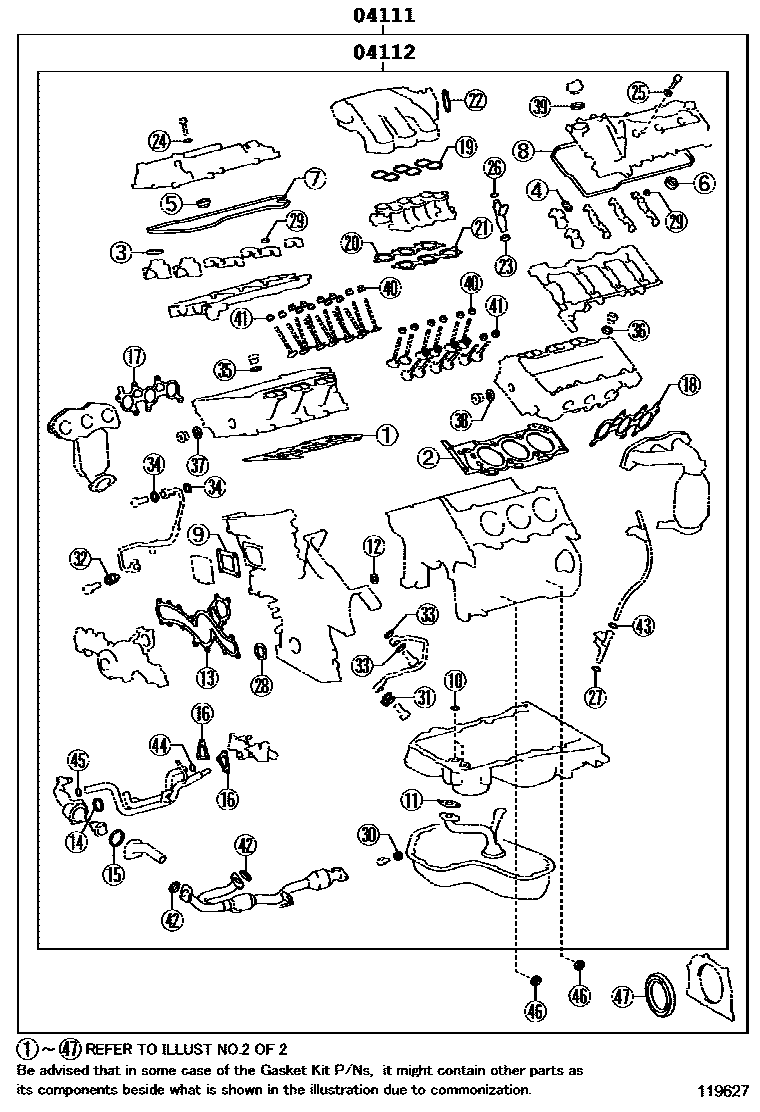

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31840i200812-201108

main04111-31841i201108-201111

main04111-31842i201111-201503

main04111-31843i201503

main04111-31880i200903-201503

main04111-31881i201503

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31530i200812-201108

main04112-31531i201108-201111

main04112-31532i201111-201203

main04112-31550i200903-201108

main04112-31551i201108-201203

2 parts on this diagram · 8 diagrams in section
