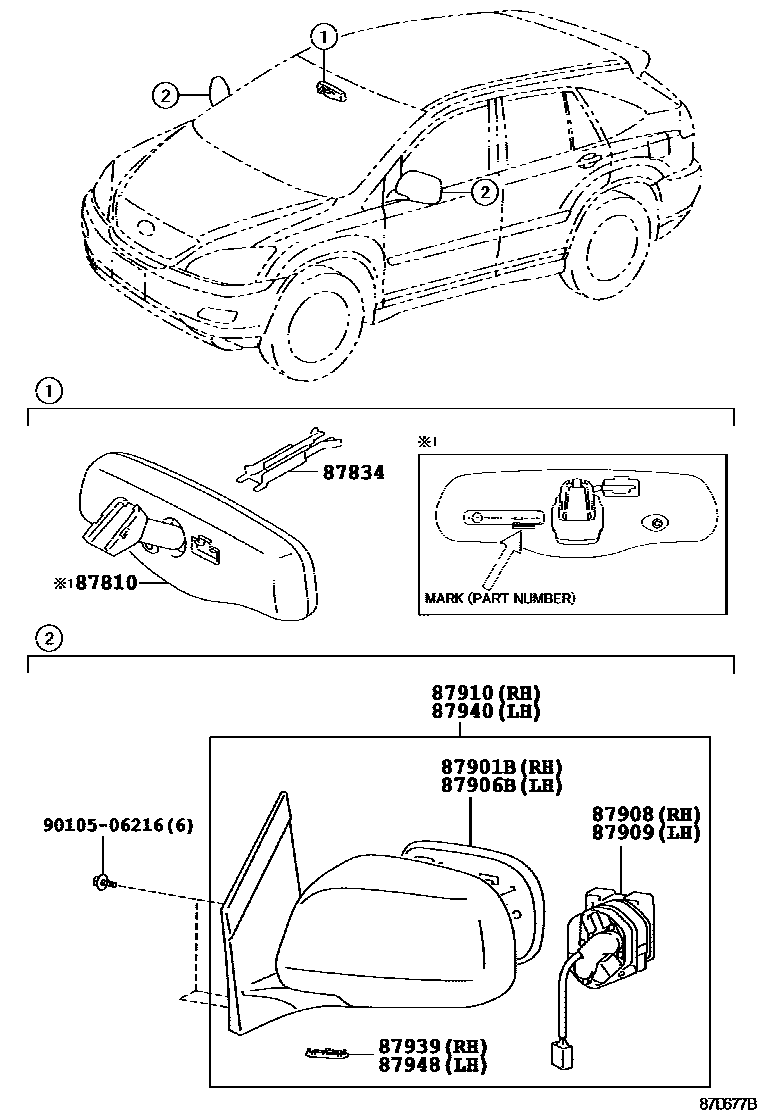

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0E010i200601-200607

main87810-0W130i200608-200812

main87810-AA020i200311-200601

KOREA SPEC&REAR SIDE GLASS-GREEN; KOREA SPEC&REAR SIDE GLASS-GREEN&WIPER-RAIN SENSING

main87810-AC090i200608-200610

KOREA SPEC&REAR SIDE GLASS-GREEN&WINDSHIELD WIPER-RAIN SENSING

main87810-AC091i200610-200812

KOREA SPEC&REAR SIDE GLASS-GREEN&WINDSHIELD WIPER-RAIN SENSING

main87810-AE010i200302-200408

W/DVD NAVIGATION; WIPER-RAIN SENSING&W/DVD NAVIGATION

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-AC010i200601-200812

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-48040i200601-200812

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-48050i200302-200601

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-60840i200601-200602

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR); PREMIUM PACKAGE&W(MEMORY MIRROR); SPORT PACKAGE&W(MEMORY MIRROR); WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR)

main87908-60841i200602-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR); PREMIUM PACKAGE&W(MEMORY MIRROR); SPORT PACKAGE&W(MEMORY MIRROR); WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR)

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-60730i200601-200602

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR); PREMIUM PACKAGE&W(MEMORY MIRROR); SPORT PACKAGE&W(MEMORY MIRROR); WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR)

main87909-60731i200602-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR); PREMIUM PACKAGE&W(MEMORY MIRROR); SPORT PACKAGE&W(MEMORY MIRROR); WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-48240-A0supersedes 87910-48230-A0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; SPORT PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; WITH&W(MEMORY MIRROR),WHITE PEARL CS.,062

main87910-48240-B0supersedes 87910-48230-B0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; SPORT PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; WITH&W(MEMORY MIRROR),SILVER ME.,1C0

main87910-48240-B1supersedes 87910-48230-B1i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; SPORT PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GRAY MC.,1E0

main87910-48240-B2i200411-200507

SPECIAL EDITION,GRAY ME.,1D2

main87910-48240-C0supersedes 87910-48230-C0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202; SPORT PACKAGE&W(MEMORY MIRROR),BLACK,202; WITH&W(MEMORY MIRROR),BLACK,202

main87910-48240-E0supersedes 87910-48230-E0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; SPORT PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; WITH&W(MEMORY MIRROR),BEIGE ME.,4R4

main87910-48240-G0supersedes 87910-48230-G0i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; SPORT PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1

main87910-48240-G1i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; SPORT PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GREEN MC.,6T3

main87910-48240-J0supersedes 87910-48230-J0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; WITH&W(MEMORY MIRROR),LT.BLUE ME.,8R6

main87910-48240-J1supersedes 87910-48230-J1i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; SPORT PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; WITH&W(MEMORY MIRROR),DK.BLUE M.M.,8R7

main87910-48240-J2supersedes 87910-48230-J2i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; WITH&W(MEMORY MIRROR),LT.BLUE M.M.,8R8

main87910-48241-A0supersedes 87910-48230-A0i200602-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; SPORT PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),WHITE PEARL CS.,062

main87910-48241-B0supersedes 87910-48230-B0i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; SPORT PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SILVER ME.,1C0

main87910-48241-B1supersedes 87910-48230-B1i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; SPORT PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GRAY MC.,1E0

main87910-48241-B3supersedes 87910-48230-B2i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1F7; SPORT PACKAGE&W(MEMORY MIRROR),SILVER ME.,1F7; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SILVER ME.,1F7

main87910-48241-B4supersedes 87910-48230-B3i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1G0; SPORT PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1G0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GRAY MC.,1G0

main87910-48241-C0supersedes 87910-48230-C0i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202; SPORT PACKAGE&W(MEMORY MIRROR),BLACK,202; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BLACK,202

main87910-48241-C1supersedes 87910-48230-C1i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,212; SPORT PACKAGE&W(MEMORY MIRROR),BLACK,212; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BLACK,212

main87910-48241-D1supersedes 87910-48230-D1i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),RED MC.CS.,3R1; SPORT PACKAGE&W(MEMORY MIRROR),RED MC.CS.,3R1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),RED MC.CS.,3R1

main87910-48241-E0supersedes 87910-48230-E0i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; SPORT PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BEIGE ME.,4R4

main87910-48241-E1supersedes 87910-48230-E1i200701-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),COPPER BROWN MC.,4S6; SPORT PACKAGE&W(MEMORY MIRROR),COPPER BROWN MC.,4S6; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),COPPER BROWN MC.,4S6

main87910-48241-E2supersedes 87910-48230-E2i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4T1; SPORT PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4T1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BEIGE ME.,4T1

main87910-48241-E3supersedes 87910-48230-E3i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),SABLE M.M.,4T5; SPORT PACKAGE&W(MEMORY MIRROR),SABLE M.M.,4T5; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SABLE M.M.,4T5

main87910-48241-G0supersedes 87910-48230-G0i200602-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; SPORT PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1

main87910-48241-G1supersedes 87910-48230-G1i200602-200701

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; SPORT PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GREEN MC.,6T3

main87910-48241-G2supersedes 87910-48230-G2i200701-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),MD.GREEN M.M.,6U3; SPORT PACKAGE&W(MEMORY MIRROR),MD.GREEN M.M.,6U3; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),MD.GREEN M.M.,6U3

main87910-48241-J0supersedes 87910-48230-J0i200602-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.BLUE ME.,8R6

main87910-48241-J1supersedes 87910-48230-J1i200602-200701

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; SPORT PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.BLUE M.M.,8R7

main87910-48241-J2supersedes 87910-48230-J2i200602-200701

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.BLUE M.M.,8R8

main87910-48330-A0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062

main87910-48330-B0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0

main87910-48330-B1i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0

main87910-48330-B2i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1F7

main87910-48330-B3i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1G0

main87910-48330-C0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202

main87910-48330-C1i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,212

main87910-48330-D1i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),RED MC.CS.,3R1

main87910-48330-E0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4

main87910-48330-E1i200701-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),COPPER BROWN MC.,4S6

main87910-48330-E2i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4T1

main87910-48330-E3i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SABLE M.M.,4T5

main87910-48330-G0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1

main87910-48330-G1i200601-200701

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3

main87910-48330-G2i200701-200801

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),MD.GREEN M.M.,6U3

main87910-48330-J0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6

main87910-48330-J1i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7

main87910-48330-J2i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8

87939COVER, OUTER MIRROR HOLE, RH

main87939-48270i200601-200812

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-48240-A0supersedes 87940-48230-A0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; SPORT PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; WITH&W(MEMORY MIRROR),WHITE PEARL CS.,062

main87940-48240-B0supersedes 87940-48230-B0i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; SPORT PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SILVER ME.,1C0

main87940-48240-B1supersedes 87940-48230-B1i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; SPORT PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; WITH&W(MEMORY MIRROR),DK.GRAY MC.,1E0

main87940-48240-B2i200411-200507

SPECIAL EDITION,GRAY ME.,1D2

main87940-48240-C0supersedes 87940-48230-C0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202; SPORT PACKAGE&W(MEMORY MIRROR),BLACK,202; WITH&W(MEMORY MIRROR),BLACK,202

main87940-48240-E0supersedes 87940-48230-E0i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; SPORT PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BEIGE ME.,4R4

main87940-48240-G0supersedes 87940-48230-G0i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; SPORT PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; WITH&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1

main87940-48240-G1i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; SPORT PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GREEN MC.,6T3

main87940-48240-J0supersedes 87940-48230-J0i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.BLUE ME.,8R6

main87940-48240-J1i200601-200602

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; SPORT PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.BLUE M.M.,8R7

main87940-48240-J2supersedes 87940-48230-J2i200302-200601

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; WITH&W(MEMORY MIRROR),LT.BLUE M.M.,8R8

main87940-48241-A0supersedes 87940-48230-A0i200602-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; SPORT PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),WHITE PEARL CS.,062

main87940-48241-B0supersedes 87940-48230-B0i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; SPORT PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SILVER ME.,1C0

main87940-48241-B1supersedes 87940-48230-B1i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; SPORT PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GRAY MC.,1E0

main87940-48241-B3supersedes 87940-48230-B2i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1F7; SPORT PACKAGE&W(MEMORY MIRROR),SILVER ME.,1F7; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SILVER ME.,1F7

main87940-48241-B4supersedes 87940-48230-B3i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1G0; SPORT PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1G0; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GRAY MC.,1G0

main87940-48241-C0supersedes 87940-48230-C0i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202; SPORT PACKAGE&W(MEMORY MIRROR),BLACK,202; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BLACK,202

main87940-48241-C1supersedes 87940-48230-C1i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,212; SPORT PACKAGE&W(MEMORY MIRROR),BLACK,212; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BLACK,212

main87940-48241-D1supersedes 87940-48230-D1i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),RED MC.CS.,3R1; SPORT PACKAGE&W(MEMORY MIRROR),RED MC.CS.,3R1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),RED MC.CS.,3R1

main87940-48241-E0supersedes 87940-48230-E0i200602-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; SPORT PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BEIGE ME.,4R4

main87940-48241-E1supersedes 87940-48230-E1i200701-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),COPPER BROWN MC.,4S6; SPORT PACKAGE&W(MEMORY MIRROR),COPPER BROWN MC.,4S6; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),COPPER BROWN MC.,4S6

main87940-48241-E2supersedes 87940-48230-E2i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4T1; SPORT PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4T1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),BEIGE ME.,4T1

main87940-48241-E3supersedes 87940-48230-E3i200801-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),SABLE M.M.,4T5; SPORT PACKAGE&W(MEMORY MIRROR),SABLE M.M.,4T5; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),SABLE M.M.,4T5

main87940-48241-G0supersedes 87940-48230-G0i200602-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; SPORT PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1

main87940-48241-G1supersedes 87940-48230-G1i200602-200701

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; SPORT PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.GREEN MC.,6T3

main87940-48241-G2supersedes 87940-48230-G2i200701-200801

PREMIUM PACKAGE&W(MEMORY MIRROR),MD.GREEN M.M.,6U3; SPORT PACKAGE&W(MEMORY MIRROR),MD.GREEN M.M.,6U3; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),MD.GREEN M.M.,6U3

main87940-48241-J0supersedes 87940-48230-J0i200602-200812

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.BLUE ME.,8R6

main87940-48241-J1supersedes 87940-48230-J1i200602-200701

PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; SPORT PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),DK.BLUE M.M.,8R7

main87940-48241-J2supersedes 87940-48230-J2i200602-200701

PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; SPORT PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; WITH(PACKAGE OPTION 1)&W(MEMORY MIRROR),LT.BLUE M.M.,8R8

main87940-48330-A0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),WHITE PEARL CS.,062

main87940-48330-B0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1C0

main87940-48330-B1i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1E0

main87940-48330-B2i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SILVER ME.,1F7

main87940-48330-B3i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GRAY MC.,1G0

main87940-48330-C0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,202

main87940-48330-C1i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BLACK,212

main87940-48330-D1i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),RED MC.CS.,3R1

main87940-48330-E0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4R4

main87940-48330-E1i200701-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),COPPER BROWN MC.,4S6

main87940-48330-E2i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),BEIGE ME.,4T1

main87940-48330-E3i200801-200812

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),SABLE M.M.,4T5

main87940-48330-G0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.OLIVE M.M.,6T1

main87940-48330-G1i200601-200701

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.GREEN MC.,6T3

main87940-48330-G2i200701-200801

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),MD.GREEN M.M.,6U3

main87940-48330-J0i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE ME.,8R6

main87940-48330-J1i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),DK.BLUE M.M.,8R7

main87940-48330-J2i200408-200601

KOREA SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8; TAIWAN SPEC&PREMIUM PACKAGE&W(MEMORY MIRROR),LT.BLUE M.M.,8R8

87948COVER, OUTER MIRROR HOLE, LH

main87948-48270i200601-200812

9010506216

main90105-06216

11 parts on this diagram · 1 diagram in section
