Toyota LEXUS RX330/350(JPP)521 — INTERIOR LAMP

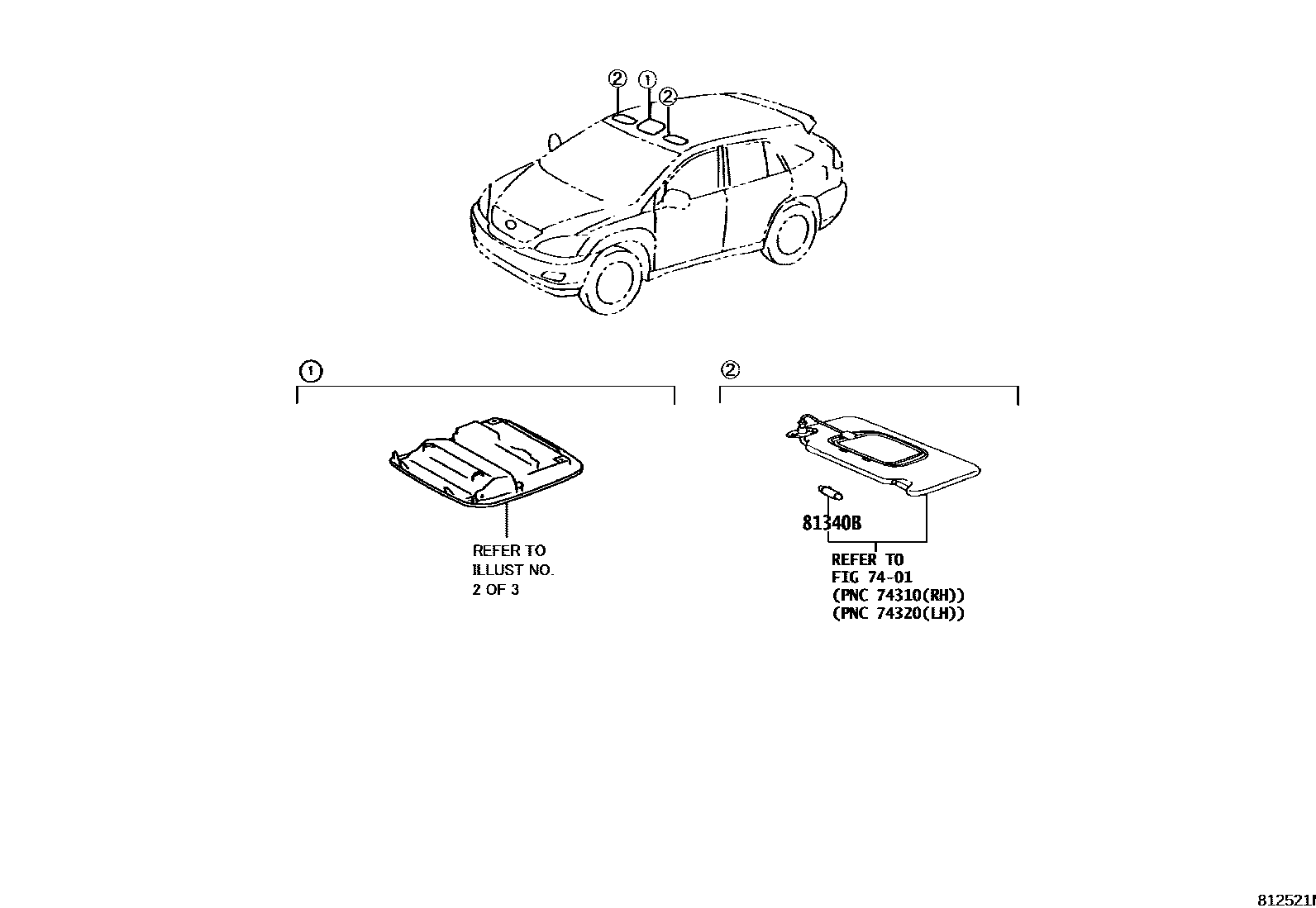

Parts diagram
7401ARMREST & VISOR
→ Go to FIG 74-01
81340BBULB (FOR VANITY LAMP)

2 parts on this diagram · 3 diagrams in section

INTERIOR LAMP for Toyota LEXUS RX330/350(JPP)521

This section contains 29 genuine Toyota parts for the INTERIOR LAMP system of the Toyota LEXUS RX330/350(JPP)521. Key components include: BOX ASSY, ROOF CONSOLE, ARMREST & VISOR, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, CONSOLE BOX ILLUMINATION.
