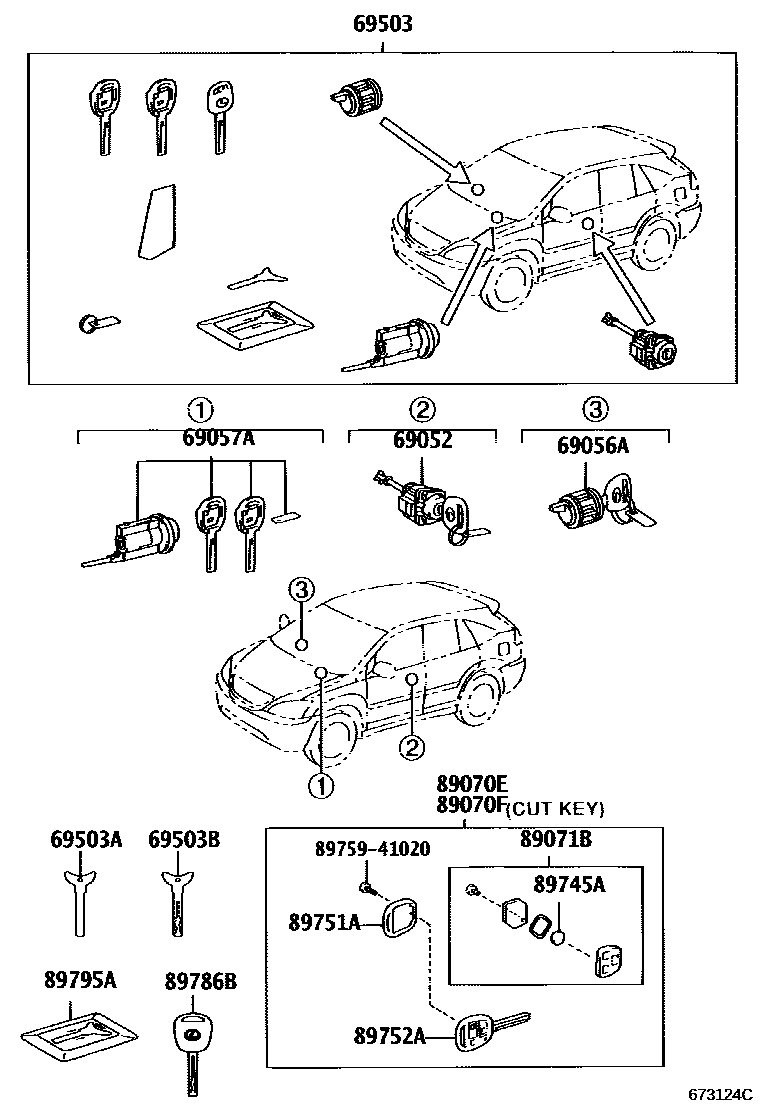

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
KOREA SPEC
69503AKEY, BLANK
MASTER KEY,CARD TYPE
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY
89070ETRANSMITTER ASSY, DOOR CONTROL
CANADA SPEC&POWRE BACK DOOR-WITHOUT,MASTER KEY
CANADA SPEC&POWER BACK DOOR-WITHOUT,MASTER KEY
POWRE BACK DOOR-WITH,MASTER KEY
TAIWAN SPEC
TAIWAN SPEC,MASTER KEY
KOREA SPEC
KOREA SPEC,MASTER KEY
KOREA SPEC,MASTER KEY
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
CANADA SPEC&POWRE BACK DOOR-WITHOUT,MASTER KEY
CANADA SPEC&POWER BACK DOOR-WITHOUT,MASTER KEY
POWRE BACK DOOR-WITH,MASTER KEY
TAIWAN SPEC
TAIWAN SPEC,MASTER KEY
KOREA SPEC
KOREA SPEC&POWRE BACK DOOR-WITH,MASTER KEY
KOREA SPEC,MASTER KEY
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
CANADA SPEC&POWER BACK DOOR-WITHOUT
POWRE BACK DOOR-WITH; TAIWAN SPEC&POWRE BACK DOOR-WITH
KOREA SPEC
KOREA SPEC&POWRE BACK DOOR-WITH
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
TAIWAN SPEC
KOREA SPEC
KOREA SPEC,MASTER KEY
89752ACASE, TRANSMITTER HOUSING
MASTER KEY(BLANK)
MASTER KEY(CUT)
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
CUT KEY
89795ACARD, TRANSPONDER KEY
KOREA SPEC
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
15 parts on this diagram · 2 diagrams in section
