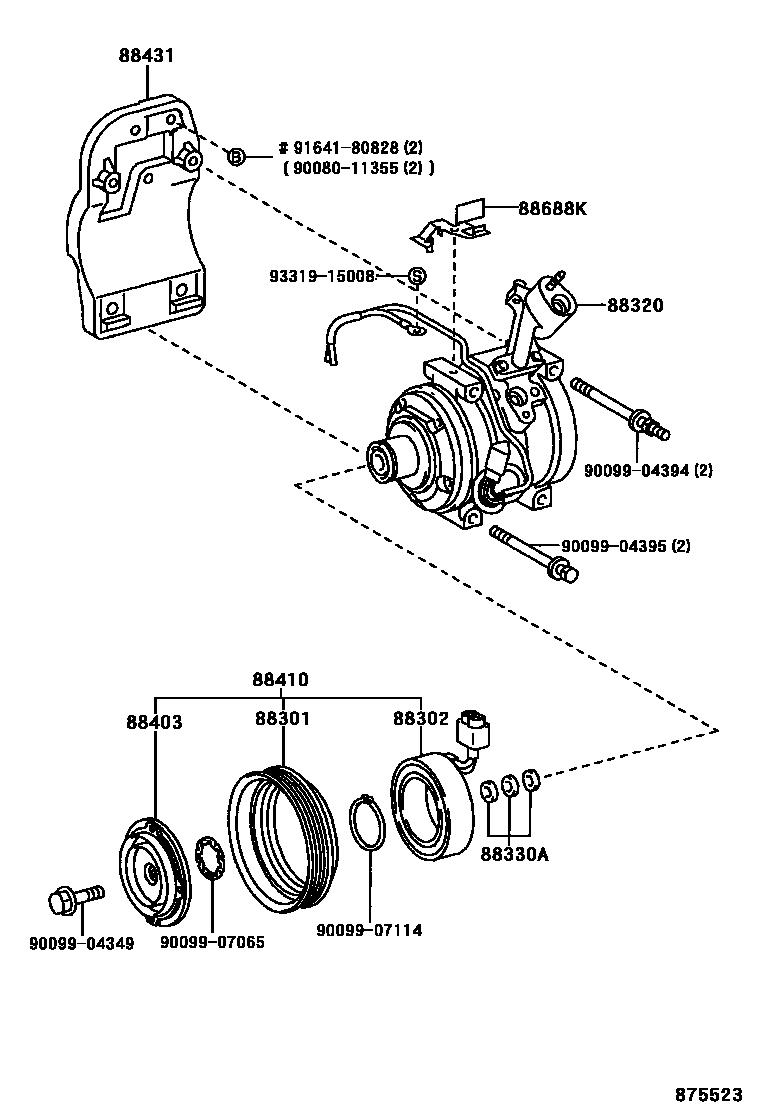

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-48020iMCU1#199903

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iMCU1#199903

main88411-48010iMCU1#199801-199903

88320COMPRESSOR ASSY, COOLER

main88320-48030iMCU1#199801-199903

main88320-48060iMCU1#199903

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCU1#199801

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010iMCU1#199903

88410CLUTCH ASSY, MAGNET

main88410-33120iMCU1#199903

main88410-48020iMCU1#199801-199903

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07021iMCU1#200208

DENSO USA

main88431-33041iMCU1#199811-200208

main88431-48020iMCU1#199801-199811

88688KBRACKET, COOLER COMPRESSOR

main88688-48030iMCU1#199801-199903

main88688-48040iMCU1#199903

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
