SEAT MOTOR & SEAT HEATER

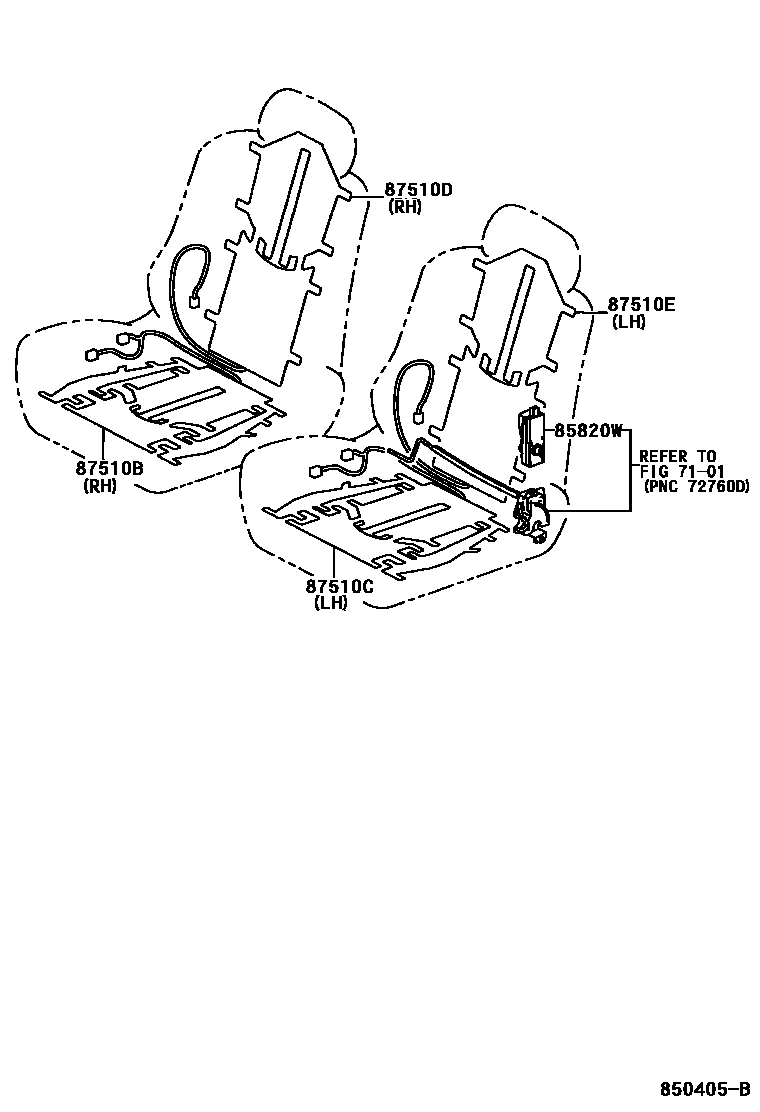

Parts diagram

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

85820WMOTOR ASSY, POWER SEAT, LH (FOR LUMBAR SUPPORT)

main85820-30560i199801

87510BHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-48010i199801-199905

main87510-48011i199905-200007

main87510-48050i200007

87510CHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-48010i199801-199905

main87510-48011i199905-200007

main87510-48050i200007

87510DHEATER ASSY, FRONT SEATBACK, RH

main87510-48020i199801-200007

main87510-48060i200007

87510EHEATER ASSY, FRONT SEATBACK, LH

main87510-48020i199801-200007

main87510-48060i200007

6 parts on this diagram · 1 diagram in section
