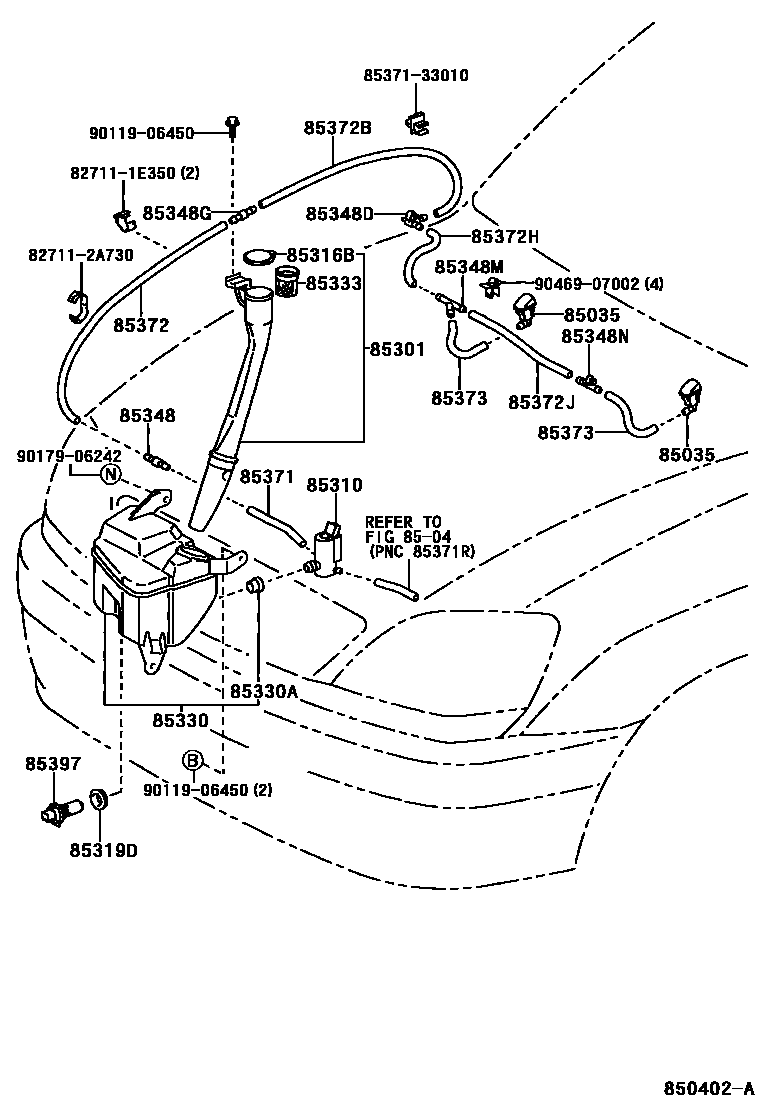

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-48020×2iMCU1#199801

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-48020iMCU1#199801

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-14490iMCU1#199801-200004

main85330-20470iMCU1#200005

85316BCAP, WASHER, INLET

main85386-48010iMCU1#199801

85319DPACKING, FRONT WASHER

main85319-33230iMCU1#199801

85330JAR ASSY, WINDSHIELD WASHER

main85315-48020iMCU1#199801

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMCU1#199801

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470iMCU1#199801

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22480iMCU1#199801

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-33070iMCU1#199801

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22470iMCU1#199801

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iMCU1#199801

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-17050iMCU1#199801

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iMCU1#199801

L=150

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33334iMCU1#199801

L=2000(*H,L=940)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iMCU1#199801

L=1450(*H,L=780)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iMCU1#199801

L=1450(*H,L=260)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iMCU1#199801

L=1450(*H,L=550)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iMCU1#199801

L=1450(*H,L=270)

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iMCU1#199801

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906450

main90119-06450

9017906242

main90179-06242

9046907002

main90469-07002

27 parts on this diagram · 1 diagram in section
